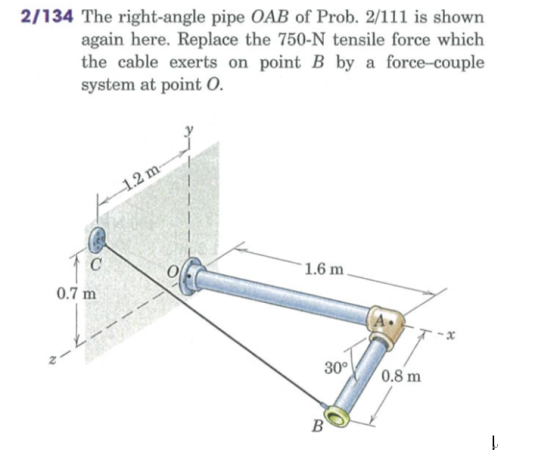

2/134 The right-angle pipe OAB of Prob. 2/111 is shown again here. Replace the 750-N tensile...
The right-angle pipe OAB is shown. Replace the 780-N tensile force which the cable exerts on...
The right-angle pipe OAB is shown. Replace the 780-N tensile force which the cable exerts on point B by a force-couple system at point O.
4.7.9. A cable is attached at B to the right-angle pipe OAB in E4.7.9. The tension...
4.7.9. A cable is attached at B to the right-angle pipe OAB in E4.7.9. The tension in the cable is 750 lb. Determine the angle between the cable and member BA. a. Determine the components of Fac (the cable force acting at B) parallel and perpendicular to member BA. b. 1.6 15 ft 0.8 ft 35° 0.9ft E4.7.9
Z Replace the two forces shown acting on the pipe system with an equivalent force and...
Z Replace the two forces shown acting on the pipe system with an equivalent force and couple moment acting about A. 150 N 2 m 1 m 2.5 m 2 m 200 N
750 N 1) What is the angle between r, and the 750 N force that you...
750 N 1) What is the angle between r, and the 750 N force that you would use if you were to calculate the moment that the force creates about point C? (You do not need to actually calculate the moment.) 200 mm - 100 mm 2) Bar AB is inclined at 50 from the vertical. A 100-N force is applied to the bar at end B. Determine the magnitude and direction of the moment this force creates at a...
3. Two forces and a moment act on the bracket below. a) Find the resultant force....
3. Two forces and a moment act on the bracket below. a) Find the resultant force. b) Replace the given system with an equivalent force-couple system acting at B. Sketch the result in the space provided below. Replace the given system with an equivalent system consisting of only a force whose line of action intersects the x axis. Determine the coordinate, d, of the point of intersection on the x axis. Sketch the result in the space provided below.4 SOON...
Problem 4.101 Replace the loading system acting on the beam by an equivalent resultant force and...
Problem 4.101 Replace the loading system acting on the beam by an equivalent resultant force and couple moment at point O. Suppose that Fi = 750 N, F2 = 300 N, and M = 400 N.m. (Figure 1) Figure 0.2 mm 2 m Part A Determine the magnitude of the resultant force. Express your answer to three significant figures and include the appropriate units. O': HÅR FrValue OO? Units Submit Previous Answers Request Answer X Incorrect; Try Again; 3 attempts...
Sample Class Problems-Force and Acceleration Prob#l: Two people are pushing a stalled car (the ma...
Sample Class Problems-Force and Acceleration Prob#l: Two people are pushing a stalled car (the mass of the car is 1850kg). One person applies a force to the car, while the other applies a force of 395N. Both forces act in the same of 560N also acts on the car, but in a direction opposite force arises because of friction and the extent to which the pavement opposes Find the acceleration of the car. direction. A third force to that in...
Figure 2 of 3 Part C - Analyzing another force-couple system on a bracket The same...
Figure 2 of 3 Part C - Analyzing another force-couple system on a bracket The same bracket and force-couple system as that in Part B (F=159 lb, F = 53 lb, and M-590 lb-ft) is set up again, only this time, the resultant force is to be applied to the horizontal member CB.(Figure 2)Replace this force and couple system with an equivalent force by specifying the magnitude of the force, the direction in which the force acts, and where the...
A light ray in air (n= 1) is incident on a thin film of oil (noil...
A light ray in air (n= 1) is incident on a thin film of oil (noil = 1.60) floating on top of water (nwater = 1.33), as shown below. The wavelength of the incident light in air is Aair = 640 nm. The oil layer has a thickness t = 0.5 um. The ray is assumed to be incident practically along the normal. That is, we won't be worried about angles of reflection or refraction when doing this problem. However,...
The right-angle pipe OAB is shown. Replace the 780-N tensile force which the cable exerts on point B by a force-couple system at point O.
4.7.9. A cable is attached at B to the right-angle pipe OAB in E4.7.9. The tension in the cable is 750 lb. Determine the angle between the cable and member BA. a. Determine the components of Fac (the cable force acting at B) parallel and perpendicular to member BA. b. 1.6 15 ft 0.8 ft 35° 0.9ft E4.7.9
Z Replace the two forces shown acting on the pipe system with an equivalent force and couple moment acting about A. 150 N 2 m 1 m 2.5 m 2 m 200 N
750 N 1) What is the angle between r, and the 750 N force that you would use if you were to calculate the moment that the force creates about point C? (You do not need to actually calculate the moment.) 200 mm - 100 mm 2) Bar AB is inclined at 50 from the vertical. A 100-N force is applied to the bar at end B. Determine the magnitude and direction of the moment this force creates at a...
3. Two forces and a moment act on the bracket below. a) Find the resultant force. b) Replace the given system with an equivalent force-couple system acting at B. Sketch the result in the space provided below. Replace the given system with an equivalent system consisting of only a force whose line of action intersects the x axis. Determine the coordinate, d, of the point of intersection on the x axis. Sketch the result in the space provided below.4 SOON...
Problem 4.101 Replace the loading system acting on the beam by an equivalent resultant force and couple moment at point O. Suppose that Fi = 750 N, F2 = 300 N, and M = 400 N.m. (Figure 1) Figure 0.2 mm 2 m Part A Determine the magnitude of the resultant force. Express your answer to three significant figures and include the appropriate units. O': HÅR FrValue OO? Units Submit Previous Answers Request Answer X Incorrect; Try Again; 3 attempts...
Sample Class Problems-Force and Acceleration Prob#l: Two people are pushing a stalled car (the mass of the car is 1850kg). One person applies a force to the car, while the other applies a force of 395N. Both forces act in the same of 560N also acts on the car, but in a direction opposite force arises because of friction and the extent to which the pavement opposes Find the acceleration of the car. direction. A third force to that in...
Figure 2 of 3 Part C - Analyzing another force-couple system on a bracket The same bracket and force-couple system as that in Part B (F=159 lb, F = 53 lb, and M-590 lb-ft) is set up again, only this time, the resultant force is to be applied to the horizontal member CB.(Figure 2)Replace this force and couple system with an equivalent force by specifying the magnitude of the force, the direction in which the force acts, and where the...
A light ray in air (n= 1) is incident on a thin film of oil (noil = 1.60) floating on top of water (nwater = 1.33), as shown below. The wavelength of the incident light in air is Aair = 640 nm. The oil layer has a thickness t = 0.5 um. The ray is assumed to be incident practically along the normal. That is, we won't be worried about angles of reflection or refraction when doing this problem. However,...
