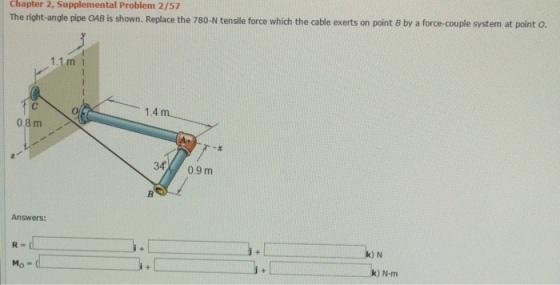

The right-angle pipe OAB is shown. Replace the 780-N tensile force which the cable exerts on...

Question

Question

engineering Mechanical-Engineering

Answer 1

Answer #1

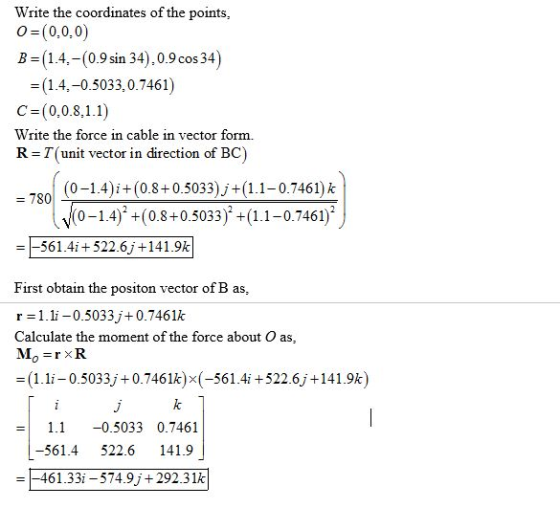

Write the coordinates of the points, o (0,0,0) B- (1.4,-(0.9 sin 34),0.9 cos 34 -(1.4,-0.5033,0.7461) Write the force in cabl

Answer 2

Similar Homework Help Questions

2/134 The right-angle pipe OAB of Prob. 2/111 is shown again here. Replace the 750-N tensile...

2/134 The right-angle pipe OAB of Prob. 2/111 is shown again here. Replace the 750-N tensile force which the cable exerts on point B by a force-couple system at point O. 1.6 m 0.7 m 2
A cable is attached at B to the right-angle pipe OAB in the figure. The tension...

A cable is attached at B to the right-angle pipe OAB in the figure. The tension in the cable is 730 lb. (a) Determine the angle between the cable and member BA. Determine the components of FBC (the cable force acting at B) (b) parallel to member BA, (c) perpendicular to member BA. 1.2 ft 1.7 ft. 0.7 ft 30 0.8 ft (a) degrees (b) Ib (c) Ib
4.7.9. A cable is attached at B to the right-angle pipe OAB in E4.7.9. The tension...

4.7.9. A cable is attached at B to the right-angle pipe OAB in E4.7.9. The tension in the cable is 750 lb. Determine the angle between the cable and member BA. a. Determine the components of Fac (the cable force acting at B) parallel and perpendicular to member BA. b. 1.6 15 ft 0.8 ft 35° 0.9ft E4.7.9

Z Replace the two forces shown acting on the pipe system with an equivalent force and...

Z Replace the two forces shown acting on the pipe system with an equivalent force and couple moment acting about A. 150 N 2 m 1 m 2.5 m 2 m 200 N
4. Replace the two wrenches and the force, acting on the pipe assembly, by an equivalent...

4. Replace the two wrenches and the force, acting on the pipe assembly, by an equivalent resultant force and couple moment at point 0. 100 Nm 300 N 100 N O -0.5 m A A BB 0.6 m-44-0.8 m- 45° | 200 N D 180 Nm
The cable pulls on the eyebolt with a tensile force of 120 N, and e 30°....

The cable pulls on the eyebolt with a tensile force of 120 N, and e 30°. Determine the scalar components of the force with respect to the xyz coordinate system. Redraw the figure, showing the tension force in terms of its rectangular component vectors. 1-13 Fl 120 N

Replace the loading system by an equivalent resultant force and couple moment acting at point A. Assume F1 = 35N, F2 = 25N and F3 = 55 N.

Replace the loading system by an equivalent resultant force and couple moment acting at point A. Assume F1 = 35N, F2 = 25N and F3 = 55 N.Part A Determine the magnitude of the resultant force.Part B Determine the angle between the resultant force and the x axis. Part C Determine the couple moment acting at point A.
Question 1: A 45-N vertical force P is applied at A to the bracket shown, which...

Question 1: A 45-N vertical force P is applied at A to the bracket shown, which is held by screws at B and C (a) Replace P with an equivalent force-couple system at B. (b) Find the two horizontal forces at B and C that are equivalent to the couple obtained in part a. 2 cm 3 cm Figure 1
THE ANSWERS FOR THE FORCE OF H ARE CORRECT Problem 03.097 - Replace a force-couple system...

THE ANSWERS FOR THE FORCE OF H ARE CORRECT Problem 03.097 - Replace a force-couple system on a block with an equivalent force-couple system at a given point A 62-lb force F and a 2200-lb in. couple M are applied to corner A of the block shown. Replace the given force-couple system with an equivalent force-couple system at corner H 14 in. ISi 45 in 25 in. 3 in. A Cartesian vector representation of the equivalent force at H is...

Replace the loading system shown by an equivalent resultant force and couple moment acting at point A.

Replace the loading system shown by an equivalent resultant force and couple moment acting at point A.
