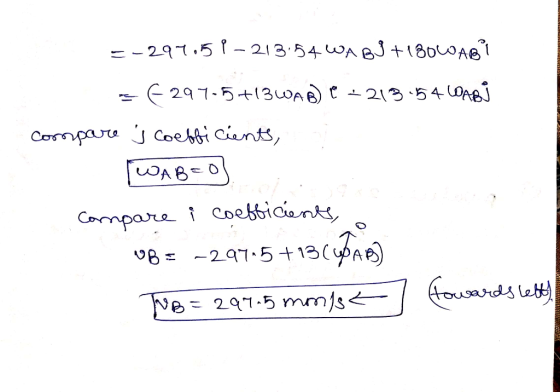

![=-297.15 P – 213:54 WA BJ +1806ABI =6297.5+13WAB) P-21354 LABI compare is coefficients, WAB=O] Compare i coefficients, UB –29](http://img.homeworklib.com/questions/0f226ae0-d2bb-11ea-b84d-c3e1c0e54e5d.png?x-oss-process=image/resize,w_560)
Add Answer to:

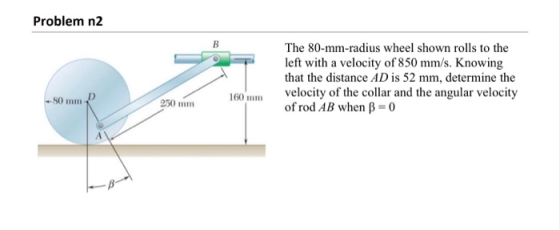

Problem n2 The 80-mm-radius wheel shown rolls to the left with a velocity of 850 mm/s....

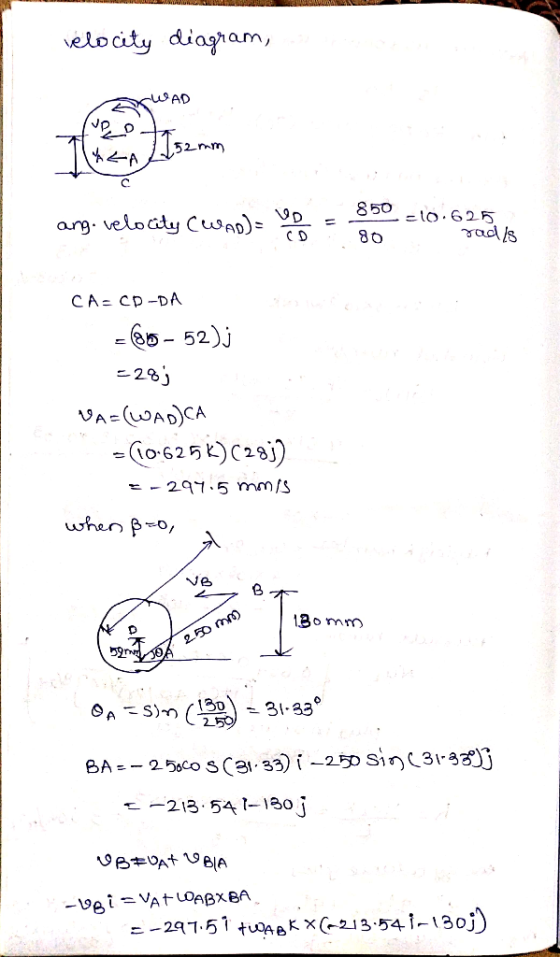

The 80-mm-radius wheel shown rolls to the left with a velocity of 850 mm/s. Knowing that...
The 80-mm-radius wheel shown rolls to the left with a velocity of 850 mm/s. Knowing that the distance AD is 52 mm, determine the velocity of the collar and the angular velocity of rod AB when B=0 SO mm 250 mm 160 mm
The 400 mm diameter wheel shown rolls without slipping on the horizontal surface. Bar AB is 750 mm long and is attached...
The 400 mm diameter wheel shown rolls without slipping on the
horizontal surface. Bar AB is 750 mm long and is attached to the
wheel by a smooth pin 150 mm from the center. At the instant shown,
the center of the wheel has a velocity of 1.5 m/s to the left.
Determine the angular velocity of the bar AB and the velocity Va of
pin A at this instant.
The 400 mm diameter wheel shown rolls without slipping on...
Knowing that at the instant shown the angular velocity of rod BE is 4.00 radians/s counterclockwise, please determine (a) the angular velocity of rod AD, (b) the velocity of collar D, the velocity...
Knowing that at the instant shown the angular velocity of rod BE is 4.00 radians/s counterclockwise, please determine (a) the angular velocity of rod AD, (b) the velocity of collar D, the velocity of point A, (c) and the location of the instantaneous center of rotation of rod AD. (d) 192 mm 240 mm 30° 360 mm
Knowing that at the instant shown the angular velocity of rod BE is 4.00 radians/s counterclockwise, please determine (a) the angular velocity of...
Knowing that at the instant shown the angular velocity of rod DE is 2.7 rad/s clockwise,...
Knowing that at the instant shown the angular velocity of rod DE is 2.7 rad/s clockwise, determine the velocity of collar A and the velocity of point B. 80 mm 150 mm TO 60 mm 120 mm The velocity of collar A is The velocity of point B is mm/s. mm/s À 61.8º. 30* 60 deg OA. CRANK, roq", W: +10 RAO (9) B - SLIDER SLIDES LEFT AND RIGHT AS OA ROTATES AB-LINK, 30W LONG Vo? ao? Mee ,...
Pin P is attached to the wheel shown and slides in a slot cut in bar...
Pin P is attached to the wheel shown and slides in a slot cut in bar BD. The wheel rolls to the right without slipping with a constant angular velocity of 22 rad/s 0 140 min 200 mm Problem 15.154.a- Plane motion, velocity of a particle with respect to a rotating reference frame Knowing that x= 480 mm at θ = o", determine the angular velocity of the bar and the relative velocity of pin P with respect to the...
Problem 1: The wheel shown has a radius of 20 cm, and rolls without slipping. It...
Problem 1: The wheel shown has a radius of 20 cm, and rolls without slipping. It starts at 6 = 3 rad/s when 0 = 0 and is given an angular acceleration a = (0.50) rad/s2, where Ois in radians. When the wheel has traveled 2 revolutions, determine: a. The angular velocity of the wheel b. The velocity of point B (center of wheel) C. The velocity of point C (top of wheel) d. The angular acceleration e. The acceleration...
Problem (2) (Formerly presented as Problem 2) Option A) Knowing that at the instant shown the...
Problem (2) (Formerly presented as Problem 2) Option A) Knowing that at the instant shown the angular velocity of rod BE is 4.00 radians/s counterclockwise, please determine (a) the angular velocity of rod AD, (b) the velocity of collar D, ( the velocity of point A, and the location of the instantaneous center of (d) rotation of rod AD 192 30 360 mm
Required information Problem 15.254-Rod connected to a slider-DEPENDENT MULTI-PART PROBLEM-ASSIGN...
Required information Problem 15.254-Rod connected to a slider-DEPENDENT MULTI-PART PROBLEM-ASSIGN ALL PARTS NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part Rod AB is attached to a collar at A and is fitted with a wheel at B that has a radius r= 15 mm. Know that when θ collar has velocity of 260 mm/s upward and it is slowing down at a rate of 150 mm/s 60, the...
Problem (1) Collar D slides on a fixed horizontal rod with a constant velocity of 4 ft/s to the right. Knowing that at the instant shown x- 8 in. determine 10 in. a) the angular acceleration of bar B...
Problem (1) Collar D slides on a fixed horizontal rod with a constant velocity of 4 ft/s to the right. Knowing that at the instant shown x- 8 in. determine 10 in. a) the angular acceleration of bar BD b) the angular acceleration of bar AB 16 in 10 in
Problem (1) Collar D slides on a fixed horizontal rod with a constant velocity of 4 ft/s to the right. Knowing that at the instant shown x- 8 in. determine...
D 60 pts. At the instant shown, the wheel is rotating with the angular velocity and...
D 60 pts. At the instant shown, the wheel is rotating with the angular velocity and angular acceleration shown. Determine: a) The angular velocity of rod AB-us匠エnSTAwT eenTer b) The acceleration of the collar A at this instant c) The acceleration of the center of mass of the rod at G 6THa GO Зо"
The 80-mm-radius wheel shown rolls to the left with a velocity of 850 mm/s. Knowing that the distance AD is 52 mm, determine the velocity of the collar and the angular velocity of rod AB when B=0 SO mm 250 mm 160 mm
The 400 mm diameter wheel shown rolls without slipping on the
horizontal surface. Bar AB is 750 mm long and is attached to the
wheel by a smooth pin 150 mm from the center. At the instant shown,
the center of the wheel has a velocity of 1.5 m/s to the left.
Determine the angular velocity of the bar AB and the velocity Va of
pin A at this instant.
The 400 mm diameter wheel shown rolls without slipping on...
Knowing that at the instant shown the angular velocity of rod BE is 4.00 radians/s counterclockwise, please determine (a) the angular velocity of rod AD, (b) the velocity of collar D, the velocity of point A, (c) and the location of the instantaneous center of rotation of rod AD. (d) 192 mm 240 mm 30° 360 mm
Knowing that at the instant shown the angular velocity of rod BE is 4.00 radians/s counterclockwise, please determine (a) the angular velocity of...
Knowing that at the instant shown the angular velocity of rod DE is 2.7 rad/s clockwise, determine the velocity of collar A and the velocity of point B. 80 mm 150 mm TO 60 mm 120 mm The velocity of collar A is The velocity of point B is mm/s. mm/s À 61.8º. 30* 60 deg OA. CRANK, roq", W: +10 RAO (9) B - SLIDER SLIDES LEFT AND RIGHT AS OA ROTATES AB-LINK, 30W LONG Vo? ao? Mee ,...
Pin P is attached to the wheel shown and slides in a slot cut in bar BD. The wheel rolls to the right without slipping with a constant angular velocity of 22 rad/s 0 140 min 200 mm Problem 15.154.a- Plane motion, velocity of a particle with respect to a rotating reference frame Knowing that x= 480 mm at θ = o", determine the angular velocity of the bar and the relative velocity of pin P with respect to the...
Problem 1: The wheel shown has a radius of 20 cm, and rolls without slipping. It starts at 6 = 3 rad/s when 0 = 0 and is given an angular acceleration a = (0.50) rad/s2, where Ois in radians. When the wheel has traveled 2 revolutions, determine: a. The angular velocity of the wheel b. The velocity of point B (center of wheel) C. The velocity of point C (top of wheel) d. The angular acceleration e. The acceleration...
Problem (2) (Formerly presented as Problem 2) Option A) Knowing that at the instant shown the angular velocity of rod BE is 4.00 radians/s counterclockwise, please determine (a) the angular velocity of rod AD, (b) the velocity of collar D, ( the velocity of point A, and the location of the instantaneous center of (d) rotation of rod AD 192 30 360 mm
Required information Problem 15.254-Rod connected to a slider-DEPENDENT MULTI-PART PROBLEM-ASSIGN ALL PARTS NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part Rod AB is attached to a collar at A and is fitted with a wheel at B that has a radius r= 15 mm. Know that when θ collar has velocity of 260 mm/s upward and it is slowing down at a rate of 150 mm/s 60, the...
Problem (1) Collar D slides on a fixed horizontal rod with a constant velocity of 4 ft/s to the right. Knowing that at the instant shown x- 8 in. determine 10 in. a) the angular acceleration of bar BD b) the angular acceleration of bar AB 16 in 10 in
Problem (1) Collar D slides on a fixed horizontal rod with a constant velocity of 4 ft/s to the right. Knowing that at the instant shown x- 8 in. determine...
D 60 pts. At the instant shown, the wheel is rotating with the angular velocity and angular acceleration shown. Determine: a) The angular velocity of rod AB-us匠エnSTAwT eenTer b) The acceleration of the collar A at this instant c) The acceleration of the center of mass of the rod at G 6THa GO Зо"
