Easy problem
3. Two polarizing sheets have their transmission axes cross so no light can pass...
Two polarizing sheets have their transmission axes crossed so that no light gets through. A third...
Two polarizing sheets have their transmission axes crossed so that no light gets through. A third sheet is inserted between the first two so that its transmission axis makes an angle θ with the transmission axis of the first sheet. Unpolarized light of intensity I0 is incident on the first sheet. Suppose that the middle sheet is replaced by two polarizing sheets. The angles between the transmission axes of the second, third and fourth sheets in the stack make angles...
Two polarizing sheets have their transmission axes crossed so that no light is transmitted. A third...

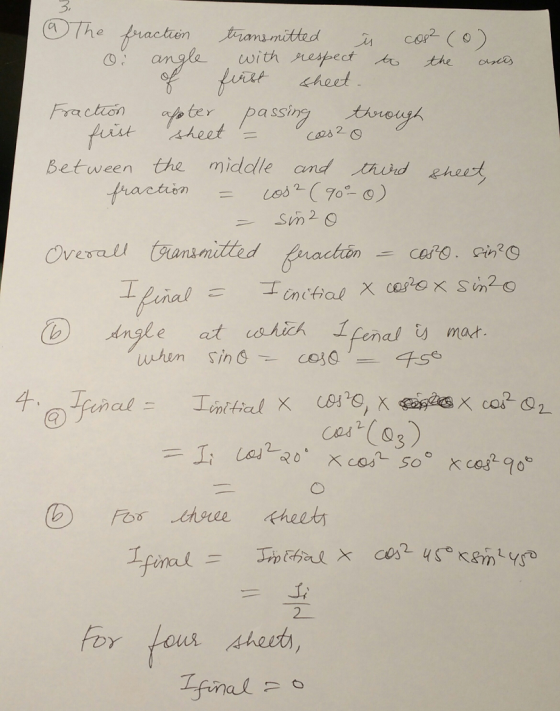

Two polarizing sheets have their transmission axes crossed so
that no light is transmitted. A third sheet is inserted so that its
transmission axis makes an angle
with the transmission axis of the first sheet.
(a)Derive an expression for the intensity of the transmitted
light as a functioin of
.
(b)Show that the intensity transmitted through all three sheets
is maximum when
.
Two polarizing sheets have their transmission axes crossed so that no light gets through. A third...
Two polarizing sheets have their transmission axes crossed so that no light gets through. A third sheet is inserted between the first two such that its transmission axis makes an angle ? with that of the first sheet. Unpolarized light of intensity I0 is incident on the first sheet. Find the intensity of the light transmitted through all three sheets for the following values of ?. (a) ? = 12° through first sheet ___ I0 through first two sheets ___...
Two polarizing sheets are placed together with their transmission axes at an angle of 68.0° to...
Two polarizing sheets are placed together with their transmission axes at an angle of 68.0° to each other. A third sheet is inserted between them with its transmission axis at an angle of 34.0° with respect to each of the other axes. Find the fraction of incident unpolarized light intensity transmitted by the three-sheet combination. (Assume each polarizing sheet is ideal.)
Three perfectly polarizing sheets are spaced 2 cm apart and in parallel planes. The transmission axis...
Three perfectly polarizing sheets are spaced 2 cm apart and in parallel planes. The transmission axis of the second sheet is 30 degrees relative to the first one. The transmission axis of the third sheet is 90 degrees relative to the first one. Unpolarized light impinges on the first polarizing sheet. What percent of this light is transmitted out through the third polarizer?
When a beam of light passes through a pair of polarizing filters (polarizer and analyzer), the...
When a beam of light passes through a pair of polarizing filters (polarizer and analyzer), the intensity of the transmitted light is a maximum when the transmission axes of the polarizer and analyzer are parallel to each other (θ = 0° or θ= 180°) and zero when the axes are perpendicular to each other (θ = 90°). For any value of theta between 0° and 90° the transmitted intensity is given by I = Ii cos2(θ) where Ii is the...
[6]17. A beam of unpolarized light, intensity lo, is sent through two polarizing sheets placed one...
[6]17. A beam of unpolarized light, intensity lo, is sent through two polarizing sheets placed one on top of the other. The light transmitted from the second polarizing sheet has intensity equal to 28.0% of the original incident intensity, 1o. What is the angle between the polarizing directions of the two sheets? Give your answer in the form "ab.c" degrees.
Unpolarized light of intensity 900 W/m2 is incident on two ideal polarizing sheets that are placed...
Unpolarized light of intensity 900 W/m2 is incident on two ideal polarizing sheets that are placed with their transmission axes perpendicular to each other. An additional polarizing sheet is then placed between the two, with its transmission axis oriented at 30° to that of the first. 1) What is the intensity of the light passing through the stack of polarizing sheets? (Express your answer to two significant figures.) W/m2 Submit You currently have 0 submissions for this question. Only 10...
Unpolarized light of intensity 600 W/m' is incident on two ideal polarizing sheets that are placed...
Unpolarized light of intensity 600 W/m' is incident on two ideal polarizing sheets that are placed with their transmission axes perpendicular to each other. An additional polarizing sheet is then placed between the two, with its transmission axis oriented at 30° to that of the first. 1) What is the intensity of the light passing through the stack of polarizing sheets? (Express your answer to two significant figures.) W/m2 Submit You currently have 0 submissions for this question. Only 10...
Three perfectly polarizing sheets are spaced 2 cmcm apart and in parallel planes. The transmission axis...
Three perfectly polarizing sheets are spaced 2 cmcm apart and in parallel planes. The transmission axis of the second sheet is 26 ∘∘ relative to the first one. The transmission axis of the third sheet is 90∘∘ relative to the first one. Unpolarized light impinges on the first polarizing sheet. Part A What percent of this light is transmitted out through the third polarizer? Express your answer using two significant figures.
Two polarizing sheets have their transmission axes crossed so
that no light is transmitted. A third sheet is inserted so that its
transmission axis makes an angle
with the transmission axis of the first sheet.
(a)Derive an expression for the intensity of the transmitted
light as a functioin of
.
(b)Show that the intensity transmitted through all three sheets
is maximum when
.
[6]17. A beam of unpolarized light, intensity lo, is sent through two polarizing sheets placed one on top of the other. The light transmitted from the second polarizing sheet has intensity equal to 28.0% of the original incident intensity, 1o. What is the angle between the polarizing directions of the two sheets? Give your answer in the form "ab.c" degrees.
Unpolarized light of intensity 900 W/m2 is incident on two ideal polarizing sheets that are placed with their transmission axes perpendicular to each other. An additional polarizing sheet is then placed between the two, with its transmission axis oriented at 30° to that of the first. 1) What is the intensity of the light passing through the stack of polarizing sheets? (Express your answer to two significant figures.) W/m2 Submit You currently have 0 submissions for this question. Only 10...
Unpolarized light of intensity 600 W/m' is incident on two ideal polarizing sheets that are placed with their transmission axes perpendicular to each other. An additional polarizing sheet is then placed between the two, with its transmission axis oriented at 30° to that of the first. 1) What is the intensity of the light passing through the stack of polarizing sheets? (Express your answer to two significant figures.) W/m2 Submit You currently have 0 submissions for this question. Only 10...
