Homework Answers
Add Answer to:

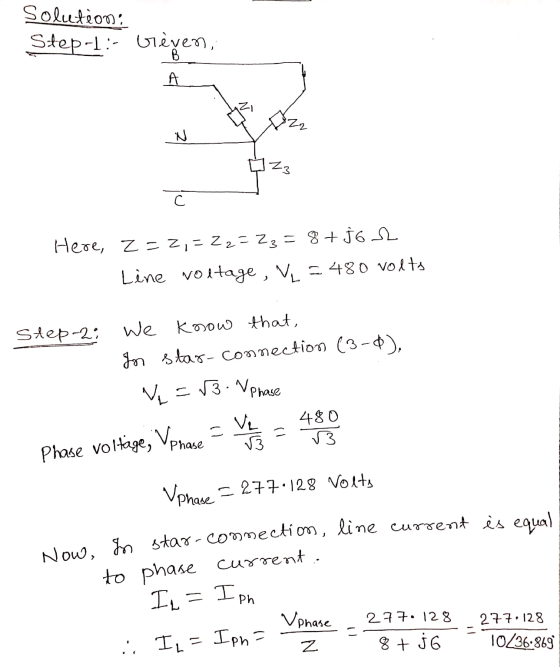

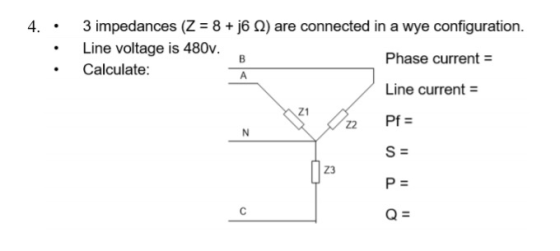

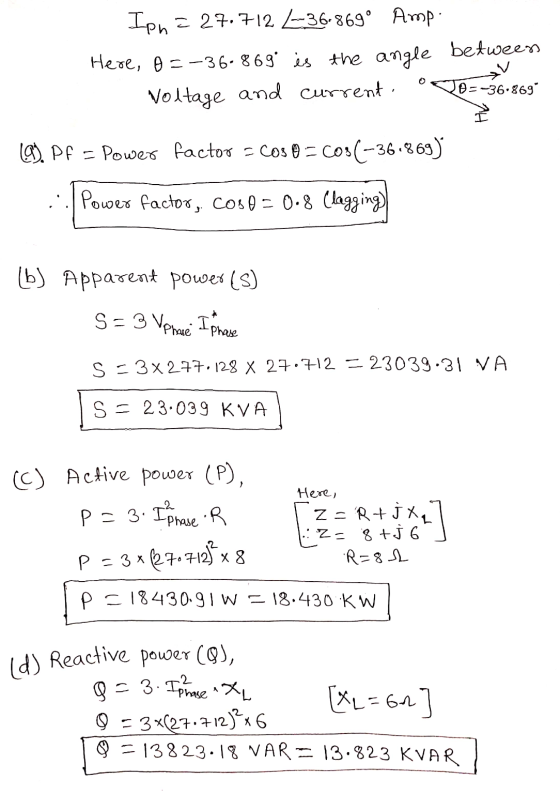

) are connected in a wye configuration. 4.. • • 3 impedances (Z = 8 +...
- There is 480V across a 3-phase load, which consists of three impedances (10<40 (2) connected...
- There is 480V across a 3-phase load, which consists of three impedances (10<40 (2) connected in a wye configuration. Power is delivered to the load through three phase conductors (1<352) and a neutral conductor with Z-092. (a) What is the 3-phase complex power required at the source? (b) What is the 3-phase complex power required at the source if the load is connected in a delta configuration?
In a balanced three-phase system, the source is wye-connected and the source voltage of phase A is Van = ∠ 120 20 V. The load consists of two balanced wyes in parallel with phase impedances of 8 + j6 Ω and 12 + j8 Ω. If the line impedance is zero, find t
In a balanced three-phase system, the source is wye-connected and the source voltage of phase A is Van = ∠ 120 20 V. The load consists of two balanced wyes in parallel with phase impedances of 8 + j6 Ω and 12 + j8 Ω. If the line impedance is zero, find the line currents and the phase currents in each load. (Hint: use per phase analysis, then do angle shift for each phase.)
Three single-phase transformers are connected in a wye-delta configuration to step down a line voltage of...
Three single-phase transformers are connected in a wye-delta configuration to step down a line voltage of 13.8kV to 4160V to supply an industrial facility. The plant draws 8MW at a 0.80 power factor. Transformer impedances can be neglected. Calculate the following: a. the apparent power (SL) drawn by the load/plant. b. the apparent power (Ss) furnished by the HV source. c. the current in the HV lines (141) d. the current in the LV lines (112) e. the currents in...
Given a 3-phase WYE transformer at tached to WYE connected loads, each having a value of...
Given a 3-phase WYE transformer at tached to WYE connected loads, each having a value of 100 2, and the phase voltage, Vp 100 V, determine the line voltage and line current for each load. (a) 100 V@1A (c) 100 V@ 1.73 A (b) (d) 173 V@1A 173 V @ 1.73 A For a balanced 3-phase system the power (S) may be determined according to the formula S 3 VL IL VA (volt-amperes). A 3-phase, WYE-connected, 200-k V A alternator...
connected 3-phase load consisting of three identical impedances Z= 48ے36.870 W. 3-Phase System Using MATLAB/Simulink Analysis of Y-Y connected balanced 3-phase circuit using Matlab A 2400-V...
connected 3-phase load consisting of three identical impedances Z=
48ے36.870 W.
3-Phase System Using MATLAB/Simulink Analysis of Y-Y connected balanced 3-phase circuit using Matlab A 2400-V rms balanced 3-phase 60-Hz supply is applied to a balanced Y-connected 3-phase load consisting of three identical impedances Z- 4836.870 W. The circuit diagram is shown in Fig. 3. Taking the phase to neutral voltage Van as reference. Calculate 1) The phase &line voltage Van, Vab 2) The phase current for any phase- line...
Q3. Prove that, "Line voltage = 3 x Phase voltage" by using a three-phase wye connected source and wye connecte...
Q3. Prove that, "Line voltage = 3 x Phase voltage" by using a three-phase wye connected source and wye connected load in Simulink. [30]
Q3. Prove that, "Line voltage = 3 x Phase voltage" by using a three-phase wye connected source and wye connected load in Simulink. [30]
I. A balanced three-phase positive sequence wye-connected 60Hz source voltage has line-neutral voltage of V, 1000 V. It is connected to a three- phase wye connected load whose impedance is z 50+j...
I. A balanced three-phase positive sequence wye-connected 60Hz source voltage has line-neutral voltage of V, 1000 V. It is connected to a three- phase wye connected load whose impedance is z 50+j37.7 2 a. Find line currents ia ib, ic and line-line voltages Vab, Vbo Vac b. Find the total complex power delivered to the load. c. Find delta-connected capacitor bank needed to bring the PF to 0.95 (lagging) of system. d. Re-calculate currents la, ib, io with Case c....
I. A balanced three-phase positive sequence wye-connected 60Hz source voltage has line-neutral voltage of V, 1000 V. It is connected to a three- phase wye connected load whose impedance is z 50+j...
I. A balanced three-phase positive sequence wye-connected 60Hz source voltage has line-neutral voltage of V, 1000 V. It is connected to a three- phase wye connected load whose impedance is z 50+j37.7 2 a. Find line currents ia ib, ic and line-line voltages Vab, Vbo Vac b. Find the total complex power delivered to the load. c. Find delta-connected capacitor bank needed to bring the PF to 0.95 (lagging) of system. d. Re-calculate currents la, ib, io with Case c....
Problem 4 Three ideal single-phase transformers are connected in a delta/wye configuration with the primary side of the...
Problem 4 Three ideal single-phase transformers are connected in a delta/wye configuration with the primary side of the three-phase transformer rated at 120 kV and the secondary side rated at 13.8 kV. The rated power of the transformer bank is 20 MVA. One side of the transformer bank is connected to a 120 kV transmission line, and the other side is connected to a three-phase load of 15 MVA at 0.85 lagging power factor. Compute the following: a) The turns...
4-9 Question Completion Status: QUESTION 4 A three phase delta source is connected to a three...
4-9
Question Completion Status: QUESTION 4 A three phase delta source is connected to a three phase transformer. The primary of the transformer is connected in a delta configuration The line voltage on the primary is 240V. The turns ratio is 2:1. The secondary of the transformer is connected in a wye configuration. A wye connected load is attached to the secondary of the transformer. Each of the three load resistors has a resistance of 10 ohms. What is the...
- There is 480V across a 3-phase load, which consists of three impedances (10<40 (2) connected in a wye configuration. Power is delivered to the load through three phase conductors (1<352) and a neutral conductor with Z-092. (a) What is the 3-phase complex power required at the source? (b) What is the 3-phase complex power required at the source if the load is connected in a delta configuration?
Three single-phase transformers are connected in a wye-delta configuration to step down a line voltage of 13.8kV to 4160V to supply an industrial facility. The plant draws 8MW at a 0.80 power factor. Transformer impedances can be neglected. Calculate the following: a. the apparent power (SL) drawn by the load/plant. b. the apparent power (Ss) furnished by the HV source. c. the current in the HV lines (141) d. the current in the LV lines (112) e. the currents in...
Given a 3-phase WYE transformer at tached to WYE connected loads, each having a value of 100 2, and the phase voltage, Vp 100 V, determine the line voltage and line current for each load. (a) 100 V@1A (c) 100 V@ 1.73 A (b) (d) 173 V@1A 173 V @ 1.73 A For a balanced 3-phase system the power (S) may be determined according to the formula S 3 VL IL VA (volt-amperes). A 3-phase, WYE-connected, 200-k V A alternator...
connected 3-phase load consisting of three identical impedances Z=
48ے36.870 W.
3-Phase System Using MATLAB/Simulink Analysis of Y-Y connected balanced 3-phase circuit using Matlab A 2400-V rms balanced 3-phase 60-Hz supply is applied to a balanced Y-connected 3-phase load consisting of three identical impedances Z- 4836.870 W. The circuit diagram is shown in Fig. 3. Taking the phase to neutral voltage Van as reference. Calculate 1) The phase &line voltage Van, Vab 2) The phase current for any phase- line...
Q3. Prove that, "Line voltage = 3 x Phase voltage" by using a three-phase wye connected source and wye connected load in Simulink. [30]
Q3. Prove that, "Line voltage = 3 x Phase voltage" by using a three-phase wye connected source and wye connected load in Simulink. [30]
I. A balanced three-phase positive sequence wye-connected 60Hz source voltage has line-neutral voltage of V, 1000 V. It is connected to a three- phase wye connected load whose impedance is z 50+j37.7 2 a. Find line currents ia ib, ic and line-line voltages Vab, Vbo Vac b. Find the total complex power delivered to the load. c. Find delta-connected capacitor bank needed to bring the PF to 0.95 (lagging) of system. d. Re-calculate currents la, ib, io with Case c....
I. A balanced three-phase positive sequence wye-connected 60Hz source voltage has line-neutral voltage of V, 1000 V. It is connected to a three- phase wye connected load whose impedance is z 50+j37.7 2 a. Find line currents ia ib, ic and line-line voltages Vab, Vbo Vac b. Find the total complex power delivered to the load. c. Find delta-connected capacitor bank needed to bring the PF to 0.95 (lagging) of system. d. Re-calculate currents la, ib, io with Case c....
Problem 4 Three ideal single-phase transformers are connected in a delta/wye configuration with the primary side of the three-phase transformer rated at 120 kV and the secondary side rated at 13.8 kV. The rated power of the transformer bank is 20 MVA. One side of the transformer bank is connected to a 120 kV transmission line, and the other side is connected to a three-phase load of 15 MVA at 0.85 lagging power factor. Compute the following: a) The turns...
4-9
Question Completion Status: QUESTION 4 A three phase delta source is connected to a three phase transformer. The primary of the transformer is connected in a delta configuration The line voltage on the primary is 240V. The turns ratio is 2:1. The secondary of the transformer is connected in a wye configuration. A wye connected load is attached to the secondary of the transformer. Each of the three load resistors has a resistance of 10 ohms. What is the...
