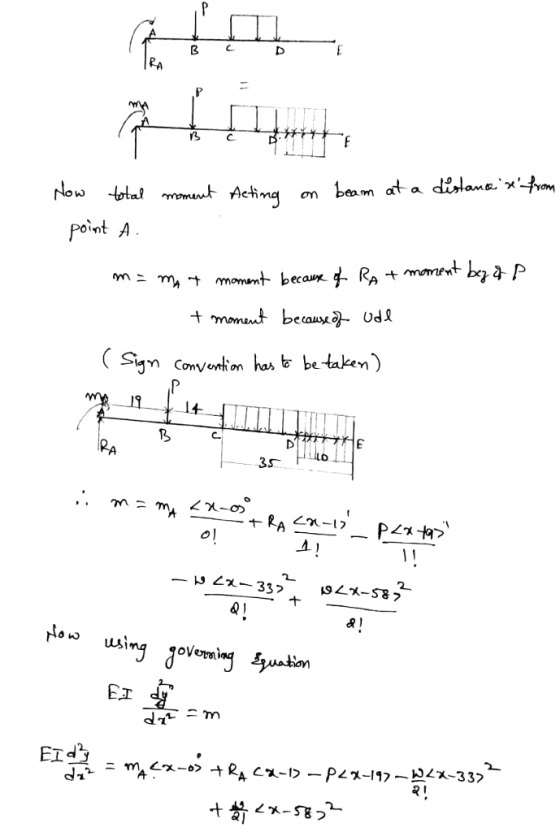

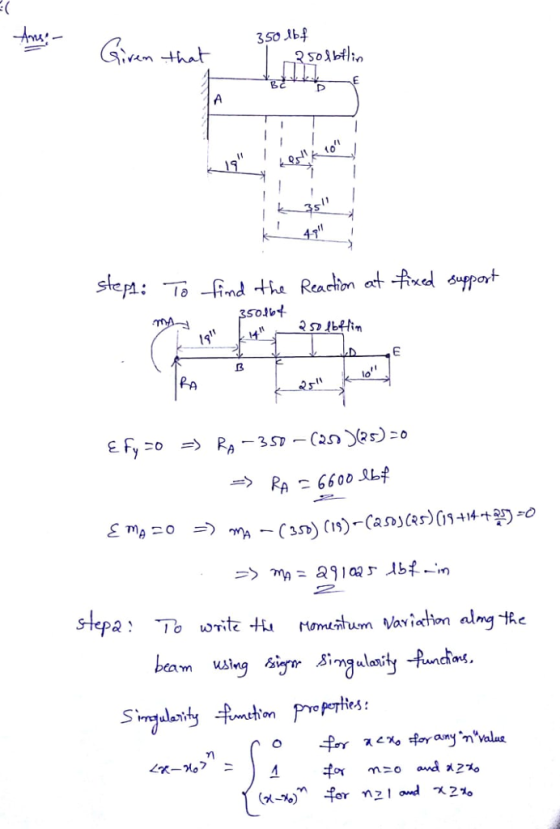

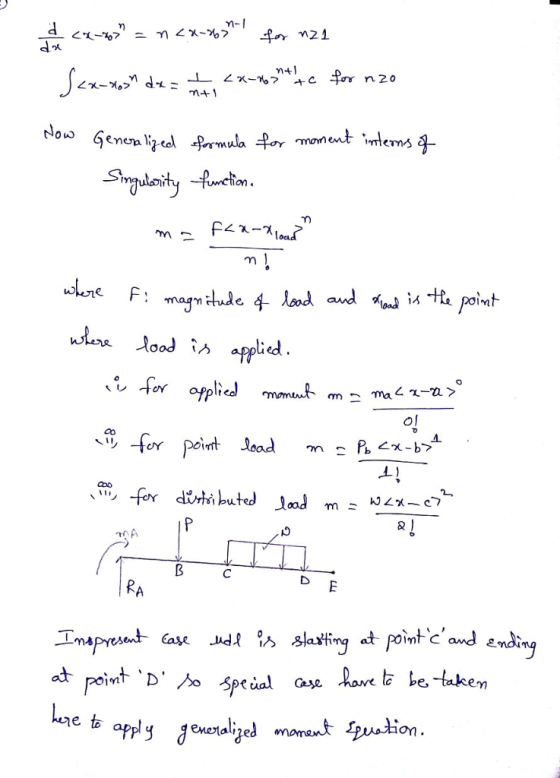

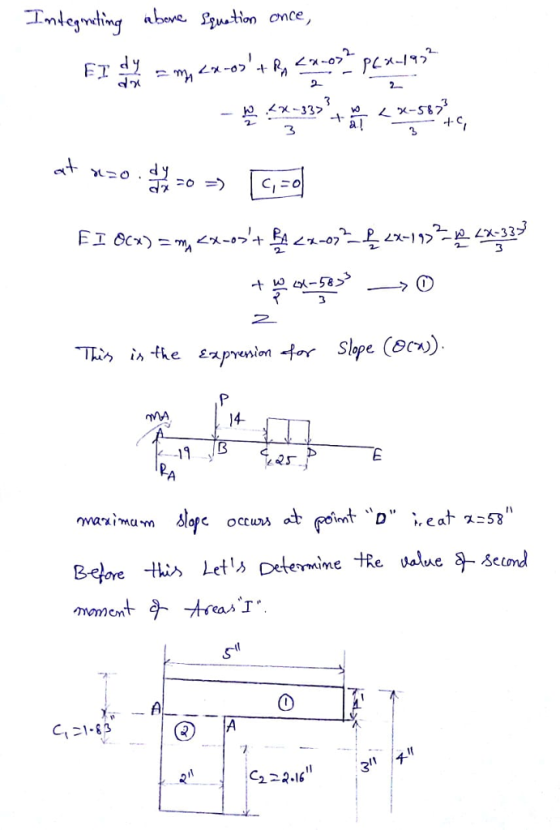

Problem 1 250 lbf/in 350 lbf 10% 35" 19" 49" Determine the expression for 0(x) -slope...
Determine the equations for deflection (y) and slope (0) as a function of x for the...
Determine the equations for deflection (y) and slope (0) as a function of x for the beam below. What is the deflection at A and the slope at A when E = 200 GPa and I = 65.0 (109) mm“? 10 KN 10 kN m
Machine Desgin Problem The answer to the problem is: Delta 1=0.458 e-2 Delta 2=0.0715 Delta 3=0.044...
Machine Desgin Problem
The answer to the problem is:
Delta 1=0.458 e-2
Delta 2=0.0715
Delta 3=0.044
Delta 4=0.75 e-4
Delta 5=0.214
Delta 6=0.034
Total Deflection=0.368 in
Please show all work and steps
For the wire of circular cross section below. find the deflection of point B in the direction of force using superposition. Assume a =4, b= 10" e = 10, F = 100 lbf, and dia. D= 0.75": E = 30 Mpsi: v = 0.3. Ignore the effect of...
Problem 1. A) Determine the maximum normal and shear stresses at the hollow circular cross-section of...
Problem 1. A) Determine the maximum normal and shear stresses at the hollow circular cross-section of the shaft. Also, calculate the maximum deflection in the shaft. A is 40 in from point c. Show work. Steel: E=29,000 ksi and G=11,000 ksi. The shear stress in the shift is caused by torsion and transfer shear. 40 in 15 16 6 in. 8 in. Ro 50 lb 15 lb Ri B) Formulate the design optimization problem using the 5 steps given in...
Problem 1 A cantilever beam of length L is clamped at its left end (x = 0) and is free at its rig...
Problem 1 A cantilever beam of length L is clamped at its left end (x = 0) and is free at its right end (x = L). Along with the fourth-order differential equation EIy(4) = w(x), it satisfies the given boundary conditions y(0) = y′(0) = 0,y′′(L) = y′′′(L) = 0. a) If the load w(x) = w0 a constant, is distributed uniformly, determine the deflection y(x). b) Graph the deflection curve when w0 = 24EI and L = 1....
Show step for step please! Shaft Design: Part.1 (60 pts) Consider the shaft system in Fig.1. The shaft is to be made of high-carbon steel (out 89.2 ksi , σ 55.2 kst) for infinite life. Standard b...
Show step for step please!
Shaft Design: Part.1 (60 pts) Consider the shaft system in Fig.1. The shaft is to be made of high-carbon steel (out 89.2 ksi , σ 55.2 kst) for infinite life. Standard ball bearings support the shaft at z 0 and z -54 in and do 0.75 d The applied loads are steady such that bending moments are completely rev 2.5 hp of horse power, where (1 hp = 550 lb . in/s) is transmitted to)the...
Find the solution ?y of the initial value problem ?″(?)=49(?′(?))10?5,?(1)=0,?′(1)=1. ?(?)= (10 points) Find the solution...
Find the solution ?y of the initial value problem
?″(?)=49(?′(?))10?5,?(1)=0,?′(1)=1.
?(?)=
(10 points) Find the solution y of the initial value problem 4 (v(1) 10 y (t) = y(1) = 0, y (1) = 1. y(t) = (1/^4)^(1/9) Σ Help Entering Answers Preview My Answers Submit Answers Show me another Results for this submission Entered Answer Preview Result [1/(t^4)]^(1/9) C) incorrect
Question 2. (Total 18 marks) 350 350 300 300 Same plot, but with expanded x axis...
Question 2. (Total 18 marks) 350 350 300 300 Same plot, but with expanded x axis 250 250 200 Stress (MPa) Stress (MPa) 150 $150 100 100 0 0 0 0.02 0.04 0.06 0.12 0.14 0.16 0.18 0 0.08 0.1 Strain 0.001 0.002 0.003 0.004 0.005 0.006 0.007 0.008 0.009 0.01 Strain (a) Determine the % elongation, yield stress and ultimate tensile strength of the material tested above (3 marks) (b) Calculate the elastic modulus of the material tested above...
Problem 4: (30) From the given Bode magnitude diagram, (a) Construct the transfer function G(s). 1), find the steady-state response y (b) If input utos(0.l ) The slope of 20logolG jo) at ω < 0.-th...
Problem 4: (30) From the given Bode magnitude diagram, (a) Construct the transfer function G(s). 1), find the steady-state response y (b) If input utos(0.l ) The slope of 20logolG jo) at ω < 0.-the slope of 2010giolG jo) at 0.1 < ω < I The slope of 201°golG jo) at ω > 4000-the slope of 2010giolGUo) at 400 < ω < 4000 20log1G(jo) -40 60 80 10 10' 4 10 40 10 400 10 4000 10 w(rad/sec)
Problem 4:...
1. For the state of stress depicted in Fig. 1, calculate the principle stresses and 02...
1. For the state of stress depicted in Fig. 1, calculate the principle stresses and 02 and associated principle directions Opı and Op2, and compute the von Mises stress OVM. Assume plane-stress conditions. 30 kpsi HII → 20 kpsi 1.......> 18 kpsi Fig. 1 2. For the beam depicted in Fig. 2, determine the deflection and slope of the beam at end C (y and dy/dx[.), as well as the deflection at x =12 in. The beam is made of...
Determine the equations for deflection (y) and slope (0) as a function of x for the beam below. What is the deflection at A and the slope at A when E = 200 GPa and I = 65.0 (109) mm“? 10 KN 10 kN m
Machine Desgin Problem
The answer to the problem is:
Delta 1=0.458 e-2
Delta 2=0.0715
Delta 3=0.044
Delta 4=0.75 e-4
Delta 5=0.214
Delta 6=0.034
Total Deflection=0.368 in
Please show all work and steps
For the wire of circular cross section below. find the deflection of point B in the direction of force using superposition. Assume a =4, b= 10" e = 10, F = 100 lbf, and dia. D= 0.75": E = 30 Mpsi: v = 0.3. Ignore the effect of...
Problem 1. A) Determine the maximum normal and shear stresses at the hollow circular cross-section of the shaft. Also, calculate the maximum deflection in the shaft. A is 40 in from point c. Show work. Steel: E=29,000 ksi and G=11,000 ksi. The shear stress in the shift is caused by torsion and transfer shear. 40 in 15 16 6 in. 8 in. Ro 50 lb 15 lb Ri B) Formulate the design optimization problem using the 5 steps given in...
Show step for step please!
Shaft Design: Part.1 (60 pts) Consider the shaft system in Fig.1. The shaft is to be made of high-carbon steel (out 89.2 ksi , σ 55.2 kst) for infinite life. Standard ball bearings support the shaft at z 0 and z -54 in and do 0.75 d The applied loads are steady such that bending moments are completely rev 2.5 hp of horse power, where (1 hp = 550 lb . in/s) is transmitted to)the...
Find the solution ?y of the initial value problem
?″(?)=49(?′(?))10?5,?(1)=0,?′(1)=1.
?(?)=
(10 points) Find the solution y of the initial value problem 4 (v(1) 10 y (t) = y(1) = 0, y (1) = 1. y(t) = (1/^4)^(1/9) Σ Help Entering Answers Preview My Answers Submit Answers Show me another Results for this submission Entered Answer Preview Result [1/(t^4)]^(1/9) C) incorrect
Question 2. (Total 18 marks) 350 350 300 300 Same plot, but with expanded x axis 250 250 200 Stress (MPa) Stress (MPa) 150 $150 100 100 0 0 0 0.02 0.04 0.06 0.12 0.14 0.16 0.18 0 0.08 0.1 Strain 0.001 0.002 0.003 0.004 0.005 0.006 0.007 0.008 0.009 0.01 Strain (a) Determine the % elongation, yield stress and ultimate tensile strength of the material tested above (3 marks) (b) Calculate the elastic modulus of the material tested above...
Problem 4: (30) From the given Bode magnitude diagram, (a) Construct the transfer function G(s). 1), find the steady-state response y (b) If input utos(0.l ) The slope of 20logolG jo) at ω < 0.-the slope of 2010giolG jo) at 0.1 < ω < I The slope of 201°golG jo) at ω > 4000-the slope of 2010giolGUo) at 400 < ω < 4000 20log1G(jo) -40 60 80 10 10' 4 10 40 10 400 10 4000 10 w(rad/sec)
Problem 4:...
1. For the state of stress depicted in Fig. 1, calculate the principle stresses and 02 and associated principle directions Opı and Op2, and compute the von Mises stress OVM. Assume plane-stress conditions. 30 kpsi HII → 20 kpsi 1.......> 18 kpsi Fig. 1 2. For the beam depicted in Fig. 2, determine the deflection and slope of the beam at end C (y and dy/dx[.), as well as the deflection at x =12 in. The beam is made of...
