Question

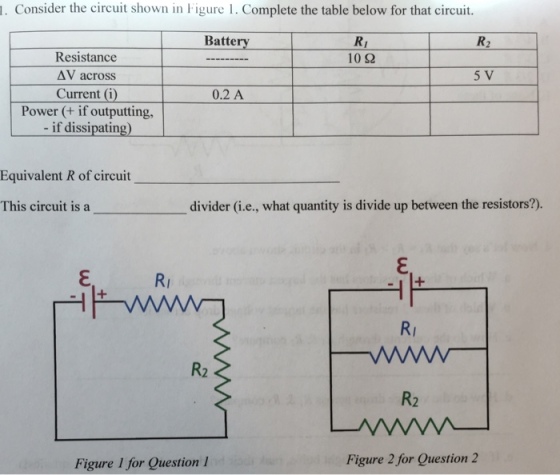

Image for 1. Consider the circuit shown in Figure 1. Complete the table below for that circuit. Equivalent R of circuit
0 0
Add a comment Improve this question Transcribed image text
Answer #1

From information given we have the current in series circuit so

I_1 = I_2 =I_{battery} = 0.2 A

for R1

\Delta V_{1} = I_1 R_1 = (0.2)(10 ) = 2V

the voltage for battery:
\Delta V= \Delta V_1 + \Delta V_2 = 2+5 = 7V

to know R2 we use the Ohm's law:

R_2 = \Delta V_2 /I_2 = (5)(0.2) = 25 \Omega

To know the power delivered we use:

P_{battery} =+ VI = (7)(0.2) = +1.4 W

P_{R_1} =-I_1^2 R_1= (0.2)^2(10) = -0.4 W

P_{R_2} =-I_2^2 R_2= (0.2)^2(25) = -1 W

The equivaelnte resistance is R = R1 + R2 = 35

the circuit is voltage divide

Add a comment
Know the answer?
Add Answer to:
1. Consider the circuit shown in Figure 1. Complete the table below for that circuit. Equivalent...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
