A highway curve of radius 70 m is banked at a 15° angle. At what speed...

Question

Question

A highway curve of radius 70 m is banked at a 15° angle. At what speed vo can a car take this curve without assistance from f

science physics

Answer 1

Answer #1

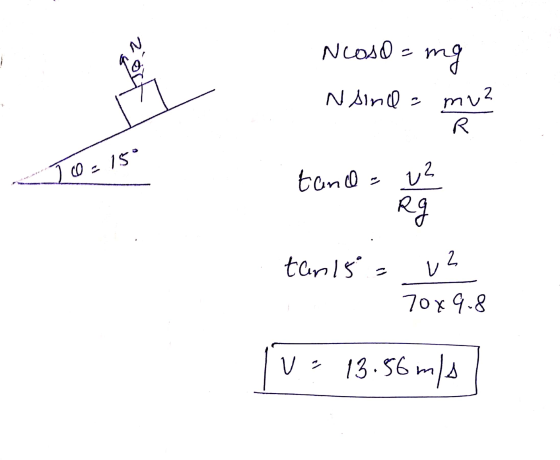

Neoso = mg Nsinda mu? - 150 tand- tan15 v2 70x9.8 IV = 13.56 m/s

Answer 2
