Homework Answers

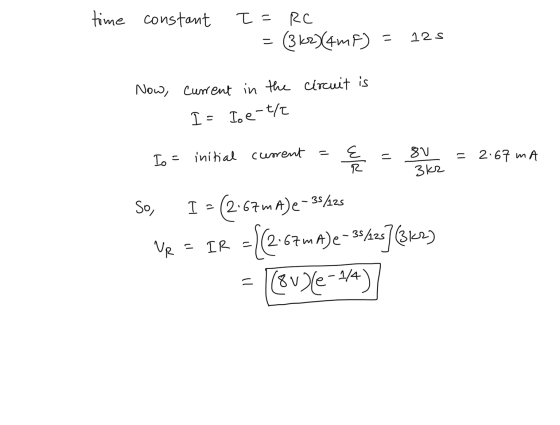

Find the current at the given time after finding the time
constant and use that to find the potential across the resistance
as shown below
Add Answer to:

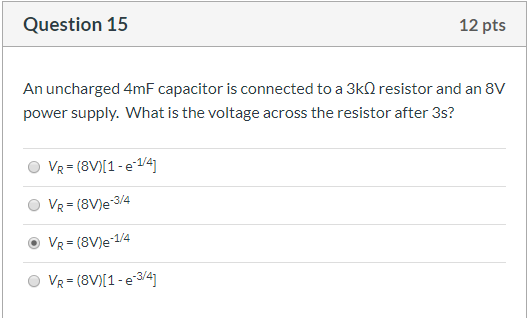

Question 15 12 pts An uncharged 4mF capacitor is connected to a 3k2 resistor and an...
An uncharged capacitor and a resistor are connected in series to a source of emf. If...
An uncharged capacitor and a resistor are connected in series to a source of emf. If emf=9.00 V, capacitance=21.5 ?F, and resistance=127Ω, find (a) the time constant of the circuit. After 1.30 ms, find (b) the charge on the capacitor, (c) the voltage drop across the capacitor, (d) the voltage drop across the resistor, and (e) the current.
A 5.00 μF capacitor that is initially uncharged is connected in series with a 6.40 kΩ...
A 5.00 μF capacitor that is initially uncharged is connected in series with a 6.40 kΩ resistor and an emf source with E= 140 V negligible internal resistance. Just after the circuit is completed, what is the voltage drop across the capacitor? Just after the circuit is completed, what is the voltage drop across the resistor? Just after the circuit is completed, what is the charge on the capacitor? Just after the circuit is completed, what is the current through...
A capacitor of capacitance C= 2.5 μF is initially uncharged. It is connected in series with a switch of negligible resistance
A capacitor of capacitance C= 2.5 μF is initially uncharged. It is connected in series with a switch of negligible resistance, a resistor of resistance R= 14.5 kΩ, and a battery which provides a potential difference of VB = 160 V.Part (a) Immediately after the switch is closed, what is the voltage drop Vc, in volt across the capacitor?Part (b) Immediately after the switch is closed, what is the voltage drop VR, in volt: across the resistor?Part (c) Immediately after...
A 6.40 μF capacitor that is initially uncharged is connected in series with a 4400 Ω...
A 6.40 μF capacitor that is initially uncharged is connected in series with a 4400 Ω resistor and a 502 V emf source with negligible internal resistance. a. Just after the circuit is completed, what is the voltage drop across the capacitor? b. Just after the circuit is completed, what is the voltage drop across the resistor? c. Just after the circuit is completed, what is the charge on the capacitor? d. Just after the circuit is completed, what is...
An uncharged 1.0-μF capacitor is connected in series with a 23-kΩ resistor, an ideal 7.0-V battery,...
An uncharged 1.0-μF capacitor is connected in series with a 23-kΩ resistor, an ideal 7.0-V battery, and an open switch. What is the voltage across the capacitor 11ms after closing the switch? A) 2.6V B) 2.7V C) 1.6V D) 0.62V
A resistor and capacitor are connected in series to a power supply of 50 Volts. The...
A resistor and capacitor are connected in series to a power supply of 50 Volts. The resistor has a value of 30000 ohms and the Capacitor is initially uncharged. After a time of 16.0 seconds, the capacitor is charged 72% fully charged. a) What is the capacitance of capacitor in this circuit? b) What is the time constant of this system? c) What is the current through the resistor at t= 20.0 seconds? d) What is the potential difference across...
EX-5 An uncharged capacitor and a resistor are connected in series to a battery, as in...
EX-5 An uncharged capacitor and a resistor are connected in series to a battery, as in the Figure. If ε = 12.0 V, C = 5.00 pF, and R = 8.00 x 1050 a) Find the time constant of the circuit, b) Find the maximum charge on the capacitor, c) Find the charge on the capacitor after 6.00 s, d) Find the potential difference across the resistor after 6.00 s. e) Find the current in the resistor at that time....
1. A 450 nF capacitor is initially uncharged. The capacitor is connected in series with a...
1. A 450 nF capacitor is initially uncharged. The capacitor is connected in series with a 2,500 resistor and a 6.00 V ideal battery. The circuit is “closed” allowing current to flow and the capacitor to start charging. a. What is the time constant of this RC circuit? b. What is the current through the resistor when the circuit is first “closed”? c. How much time is required for the voltage across the capacitor to reach 5.00 V? d....
A capacitor that is initially uncharged is connected in series with a resistor and an emf...
A capacitor that is initially uncharged is connected in series with a resistor and an emf of source epsilon = 100 V and negligible internal resistance. Just after the circuit is completed, the current through the resistor is 7.1 x 10^-3 A. the time constant for the circuit is 6.0 s. What is the resistance of the resistor? _____ Ohm What is the capacitance of the capacitor __________ MuF
Question 9 5 pts An RC circuit consisting of an uncharged capacitor (C = 1.0 uF)...
Question 9 5 pts An RC circuit consisting of an uncharged capacitor (C = 1.0 uF) in series with a resistor (R = 2800 ), a battery (ε = 6.0 V) and an open switch. What is the time needed after the switch is closed for the voltage across the capacitor to reach 4.1 V? 4.8 ms 3.0 ms O 1.2 ms 2.8 ms
EX-5 An uncharged capacitor and a resistor are connected in series to a battery, as in the Figure. If ε = 12.0 V, C = 5.00 pF, and R = 8.00 x 1050 a) Find the time constant of the circuit, b) Find the maximum charge on the capacitor, c) Find the charge on the capacitor after 6.00 s, d) Find the potential difference across the resistor after 6.00 s. e) Find the current in the resistor at that time....
A capacitor that is initially uncharged is connected in series with a resistor and an emf of source epsilon = 100 V and negligible internal resistance. Just after the circuit is completed, the current through the resistor is 7.1 x 10^-3 A. the time constant for the circuit is 6.0 s. What is the resistance of the resistor? _____ Ohm What is the capacitance of the capacitor __________ MuF
Question 9 5 pts An RC circuit consisting of an uncharged capacitor (C = 1.0 uF) in series with a resistor (R = 2800 ), a battery (ε = 6.0 V) and an open switch. What is the time needed after the switch is closed for the voltage across the capacitor to reach 4.1 V? 4.8 ms 3.0 ms O 1.2 ms 2.8 ms
