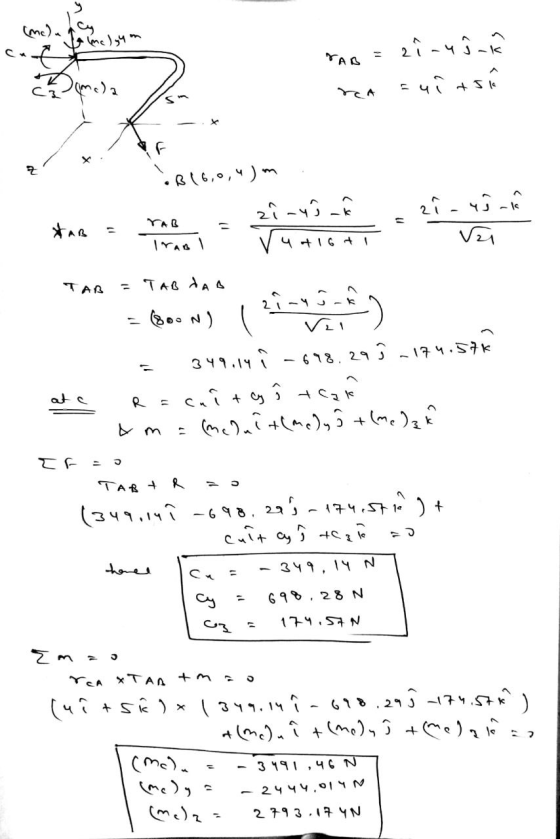

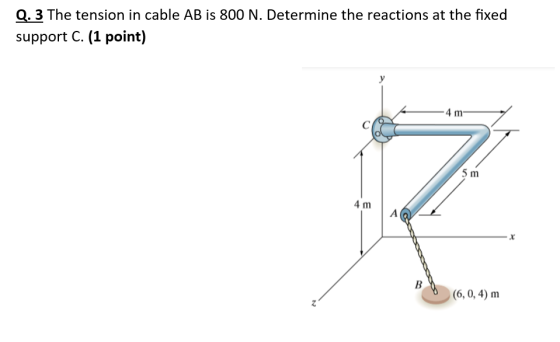

Q. 3 The tension in cable AB is 800 N. Determine the reactions at the fixed...
Q.6) Determine the tension in the cable CD and the support reactions Ax and Bx. The...
Q.6) Determine the tension in the cable CD and the support reactions Ax and Bx. The hinges at A and B exert only force reactions on the plate (no moment reactions). The weight of the plate is 1000 N. 500 mm D 300 mm 800 mm 750 mm L 300 mm 30° 1400 mm 1000 mm
Determine the, magnitudes of the tension in the cable and the reactions in the fixed support...
Determine the, magnitudes of the tension in the cable and the reactions in the fixed support at point A. Where the pulley at D is frictionless and the mass of the cylinder is 2 kg 1420 + 4.5m 4.5m —+
PROBLEM 2 5 m The tension in cable AB is 150 N. The tension in cable...
PROBLEM 2 5 m The tension in cable AB is 150 N. The tension in cable AC is 100 N. Determine the sum of the moments about D due to the forces exerted on the wall by the cables. 5 m 4 m 8 m 8 m
Part C If cable AB is subjected to a tension of 750 N, determine the magnitude...
Part C If cable AB is subjected to a tension of 750 N, determine the magnitude of the vertical force F. Figure < 1 of 1 > Express your answer to three significant figures and include the appropriate units. R 2 ? 19 Å F= 1135.715 O kN 2 m Submit Previous Answers Request Answer 1.5 m X Incorrect; Try Again; 4 attempts remaining 6 m 3m7 B Provide Feedback
The 7-m boom AB has a xed end A. If the tension in cable BC is...
The 7-m boom AB has a xed end A. If the tension in cable BC is
3.2kN, determine the moment of the force exerted by the cable about
point A.
Problem 4-The 7-m boom AB has a fixed end A. If the tension in cable BC is 3.2kN, determine the moment of the force exerted by the cable about point A 3.6m 2.4m 3200 N 7m
Determine the reactions at hinge A and the tension in the cable at B in kilonewtons....
Determine the reactions at hinge A and the tension in the cable at B in kilonewtons. (Assum 890 N/m Cable 420 N/m 3 m 1 m - KN TB = KN magnitude direction 6 KN magnitude direction
Q.1 The member AB is supported at B by a cable and at A by a...
Q.1 The member AB is supported at B by a cable and at A by a smooth fixed square rod which fits loosely through the square hole of the collar. If F= {20i-40j-75k} Ib, determine the x, y, and z components of the reaction at A and the tension in cable BC. (Note: possible reactions at A are Ay, Ax, Mx, My, and Mz) 8 ft 6 ft A 12 ft 4 ft 15192 JUN
Q. 2 Rod AB shown in the figure below is subjected to the 200-N force; in...
Q. 2 Rod AB shown in the figure below is subjected to the 200-N force; in the negative z-direction at point C. Determine the reactions at the ball-and-socket Joint A and the tension in the cables BD and BE for equilibrium. Cable BD is parallel to y-axis and Cable BE is parallel to x-axis. (2 points) 1.3 m 2 m 1.5 m 1 m D 200 N -2 m B E
N Determine the tension in each cable and the components of the reaction at D needed...
N Determine the tension in each cable and the components of the reaction at D needed to support the load F. Use a = 8.8 m, b = 3.4 m, c = 3.0 m, and F = 1100 N for your calculations. Your Answer: Tension in cable AB in N (round the result to the nearest integer): Tension in cable AC in N (round the result to the nearest integer): Magnitude of the x-component of the reaction at Din N...
Problem 3.59 4 of 15 1 Review Part A Determine the tension developed in the cable...
Problem 3.59 4 of 15 1 Review Part A Determine the tension developed in the cable AB required to support the traffic light, which has a mass of 17 kg. Take h = 3.5 m. (Figure 1) Express your answer to three significant figures and include the appropriate units. MÅ ? FAB = Value Units Submit Request Answer Part B Figure < 1 of 1 Determine the tension developed in the cable AC required to support the traffic light Express...
Q.6) Determine the tension in the cable CD and the support reactions Ax and Bx. The hinges at A and B exert only force reactions on the plate (no moment reactions). The weight of the plate is 1000 N. 500 mm D 300 mm 800 mm 750 mm L 300 mm 30° 1400 mm 1000 mm
Determine the, magnitudes of the tension in the cable and the reactions in the fixed support at point A. Where the pulley at D is frictionless and the mass of the cylinder is 2 kg 1420 + 4.5m 4.5m —+
PROBLEM 2 5 m The tension in cable AB is 150 N. The tension in cable AC is 100 N. Determine the sum of the moments about D due to the forces exerted on the wall by the cables. 5 m 4 m 8 m 8 m
Part C If cable AB is subjected to a tension of 750 N, determine the magnitude of the vertical force F. Figure < 1 of 1 > Express your answer to three significant figures and include the appropriate units. R 2 ? 19 Å F= 1135.715 O kN 2 m Submit Previous Answers Request Answer 1.5 m X Incorrect; Try Again; 4 attempts remaining 6 m 3m7 B Provide Feedback
The 7-m boom AB has a xed end A. If the tension in cable BC is
3.2kN, determine the moment of the force exerted by the cable about
point A.
Problem 4-The 7-m boom AB has a fixed end A. If the tension in cable BC is 3.2kN, determine the moment of the force exerted by the cable about point A 3.6m 2.4m 3200 N 7m
Determine the reactions at hinge A and the tension in the cable at B in kilonewtons. (Assum 890 N/m Cable 420 N/m 3 m 1 m - KN TB = KN magnitude direction 6 KN magnitude direction
Q.1 The member AB is supported at B by a cable and at A by a smooth fixed square rod which fits loosely through the square hole of the collar. If F= {20i-40j-75k} Ib, determine the x, y, and z components of the reaction at A and the tension in cable BC. (Note: possible reactions at A are Ay, Ax, Mx, My, and Mz) 8 ft 6 ft A 12 ft 4 ft 15192 JUN
Q. 2 Rod AB shown in the figure below is subjected to the 200-N force; in the negative z-direction at point C. Determine the reactions at the ball-and-socket Joint A and the tension in the cables BD and BE for equilibrium. Cable BD is parallel to y-axis and Cable BE is parallel to x-axis. (2 points) 1.3 m 2 m 1.5 m 1 m D 200 N -2 m B E
N Determine the tension in each cable and the components of the reaction at D needed to support the load F. Use a = 8.8 m, b = 3.4 m, c = 3.0 m, and F = 1100 N for your calculations. Your Answer: Tension in cable AB in N (round the result to the nearest integer): Tension in cable AC in N (round the result to the nearest integer): Magnitude of the x-component of the reaction at Din N...
Problem 3.59 4 of 15 1 Review Part A Determine the tension developed in the cable AB required to support the traffic light, which has a mass of 17 kg. Take h = 3.5 m. (Figure 1) Express your answer to three significant figures and include the appropriate units. MÅ ? FAB = Value Units Submit Request Answer Part B Figure < 1 of 1 Determine the tension developed in the cable AC required to support the traffic light Express...
