Determine the reactions at hinge A and the tension in the cable at B in kilonewtons....

Question

Question

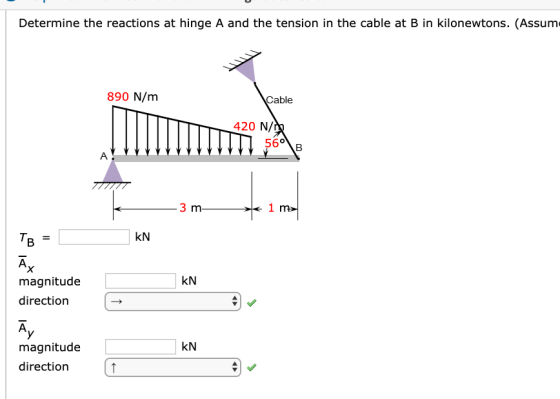

Determine the reactions at hinge A and the tension in the cable at B in kilonewtons. (Assum 890 N/m Cable 420 N/m 3 m 1 m - K

engineering Civil-Engineering

Answer 1

Answer #1

Tb = 0.782 Kn

Ax = 0.4372 Kn (right direction in x axis )

Ay = 1.316 Kn (upward)

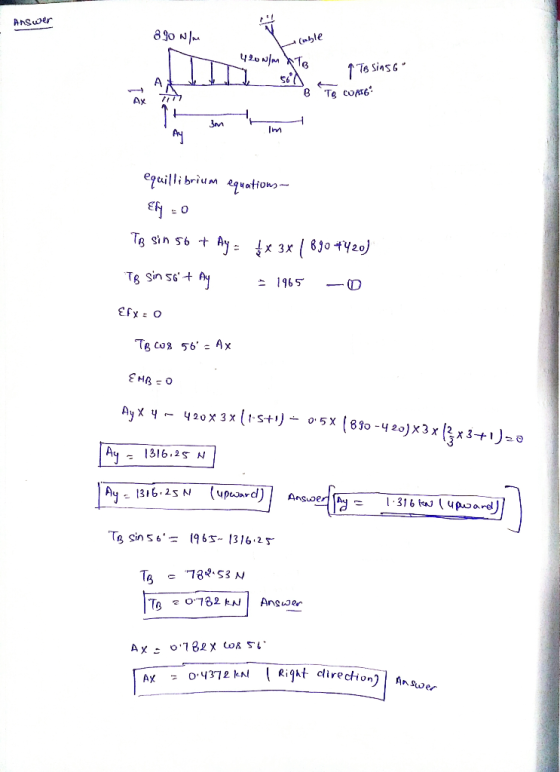

Answer 890 N/m - cable 420 N/m To TTL 9 To sins 6 sila TE COATE: equillibrium equations- Efy = 0 TB sin 56 + Ay = fx 3x | 89
