Find the impedance ZZ for a RLC circuit with input frequency of ω=ω=5s−1s−1 that has a...

Question

Question

Find the impedance ZZ for a RLC circuit with input frequency of ω=ω=5s−1s−1 that has a R=R= 4.3ΩΩ, C=C=8.4μFμF, and L=L=4.6mHmH.

Give your answer to 3 significant figures and in units of ΩΩ.

science physics

Answer 1

Answer #1

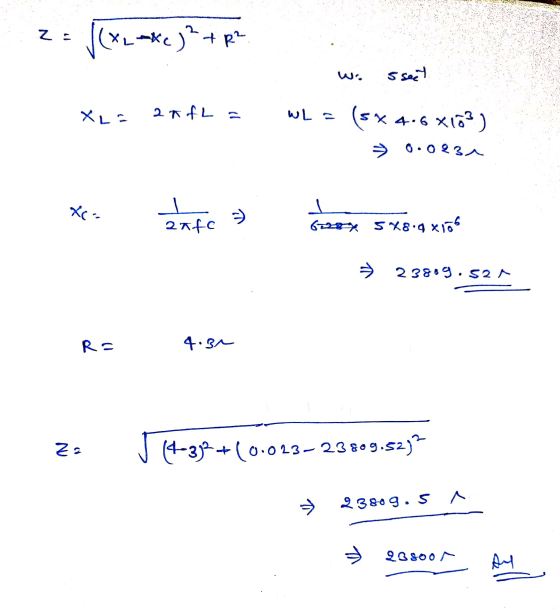

Z : |(*_**) +R? sseet XLE 2 A fL a WL = (5x4.6*16) → 0.0234 X2 2x70 > 6728 5X8.9x106 23889.52 R= 4.B^ Za (4-32 + (0.023–23809

Answer 2

Similar Homework Help Questions

Find the impedance of an RLC series circuit with inductance 41 mH, capacitance 29 µF, and...

Find the impedance of an RLC series circuit with inductance 41 mH, capacitance 29 µF, and resistance 110 Ω at a frequency of 60 Hz. Answer in units of Ω. Find the impedance at a frequency of 600 Hz. Answer in units of Ω.
IP Tuning a Radio A radio tuning circuit contains an RLC circuit with R = 4.5...

IP Tuning a Radio A radio tuning circuit contains an RLC circuit with R = 4.5 N and L = 3.0 pH. Part A What capacitance is needed to produce a resonance frequency of 86 MHz? Express your answer using two significant figures. ΡΟΙ ΑΣφ ? C= Submit Request Answer Part B If the capacitance is increased above the value found in part A, will the impedance increase, decrease, or stay the same? increase decrease stay the same Submit Request...
An RLC circuit with R = 23.5 Ω , L = 396 mH , and C...

An RLC circuit with R = 23.5 Ω , L = 396 mH , and C = 49.5 μF is connected to an ac generator with an rms voltage of 29 V . Part A Determine the average power delivered to this circuit when the frequency of the generator is equal to the resonance frequency. Express your answer using two significant figures. P = __W Part B Determine the average power delivered to this circuit when the frequency of the...

Find the resonant frequency for a series RLC circuit where R = 18.0 Ω, C =...

Find the resonant frequency for a series RLC circuit where R = 18.0 Ω, C = 9.7 µF, and L = 8.30 mH. Group of answer choices 3.51E+2 Hz 5.61E+2 Hz 7.93E+2 Hz 1.98E+3 Hz 1.76E+3 Hz
A series RLC circuit has R = 200.0 Ω, L = 84.00 mH, and C =...

A series RLC circuit has R = 200.0 Ω, L = 84.00 mH, and C = 29.00 pF. What is the impedance of the circuit at resonance? Ω
this is all one q. IP Tuning a Radio A radio tuning circuit contains an RLC...

this is all one q. IP Tuning a Radio A radio tuning circuit contains an RLC circuit with R-6.0 and L 2.7 MH. Part A What capacitance is needed to produce a resonance frequency of 82 MHx? Express your answer using two significant figures. ΚΑΙ ΑΣΦ CE Submit Request Answer Part B If the capacitance is increased above the value found in part A, will the Impedance increase, decrease, or stay the same? Increase decrease © stay the same Subm...

In an RLC circuit, ? = 10 Ω, ? = 0.5 ??, and ? = 6.0...

In an RLC circuit, ? = 10 Ω, ? = 0.5 ??, and ? = 6.0 ??, the current in the inductor is ?? = 12 ? sin(?? + 0.2). The circuit operates at half of the resonance frequency. a) Find the current in the resistor, capacitor and for the entire circuit. b) Find the voltage in the resistor, capacitor, and inductor. c) Find the emf of the AC source. Will give great review for good answer. 2) In an...
Consider an RLC series circuit with R = 600 Ω, L = 3 H, C =...

Consider an RLC series circuit with R = 600 Ω, L = 3 H, C = 4μF, generator voltage V = 20 v, frequency= 60 hz. Find a) the inductive impedance XL, b) capacitive impedance Xc , c) Total impedance Z, d) Line current I , e) Voltage drops VR , VL, ,Vc f) combination voltage VRL , and VLc , g) phase angle φ , h) resonant frequency f0 , i) Power dissipated by circuit.
An RLC circuit is driven by an AC generator at f = 146 Hz frequency. The...

An RLC circuit is driven by an AC generator at f = 146 Hz frequency. The elements of the circuit have the following values: R = 217 Ω, L = 0.728 H, C = 5.76 μF. What is the impedance of the circuit? (in Ohm) What is the resonant frequency of the circuit? (in Hz)

A series RLC circuit has R = 420 Ω, L = 1.45 H, C = 3.4...

A series RLC circuit has R = 420 Ω, L = 1.45 H, C = 3.4 µF. It is connected to an AC source with f = 60.0 Hz and ΔVmax = 150 V. What if the frequency is now increased to f = 84 Hz, and we want to keep the impedance unchanged? (C) Find the maximum voltages across each element. ΔVR = V ΔVL = V ΔVC = V
