Find the resonant frequency for a series RLC circuit where R = 18.0 Ω, C =...

Question

Question

Find the resonant frequency for a series RLC circuit where R = 18.0 Ω, C = 9.7 µF, and L = 8.30 mH.

Group of answer choices

3.51E+2 Hz

5.61E+2 Hz

7.93E+2 Hz

1.98E+3 Hz

1.76E+3 Hz

science physics

Answer 1

Answer #1

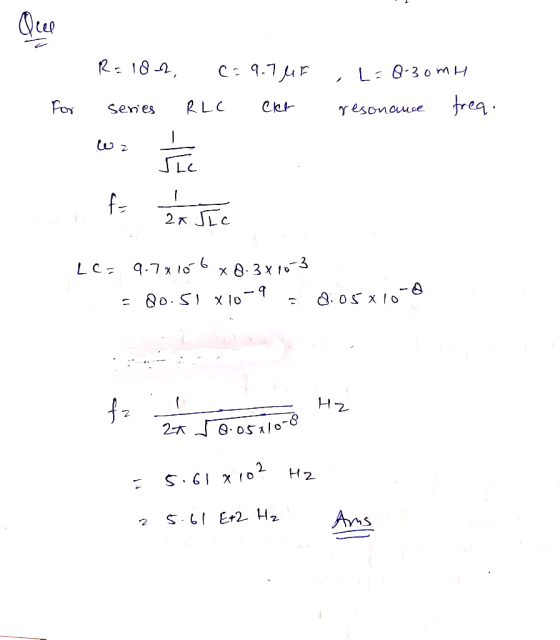

R=102, C = 9.74F series RLC Clt L=8-30mH resonause frea. For حنا fr za soc LC= 9.70106 x 8.3x10-3 - 20.51 X10-9 = dios x10-8

Answer 2
