In a certain series RLC circuit, I_rms = 9.00 A, ΔV_rms = 250 V, and the current leads the voltage by 30.0°.

(a) What is the total resistance (in Ω) of the circuit?

Ω

(b) Calculate the reactance (in Ω) of the circuit (X_L − X_C).

Ω

(c) What If? If the voltage in the circuit is maintained by an AC source operating at f = 60.0 Hz and the resonant frequency of the circuit is

f₀ = 80.0 Hz, what are the values of C (in µF) and L (in mH) in the circuit?

C= µF

L= mH

science physics

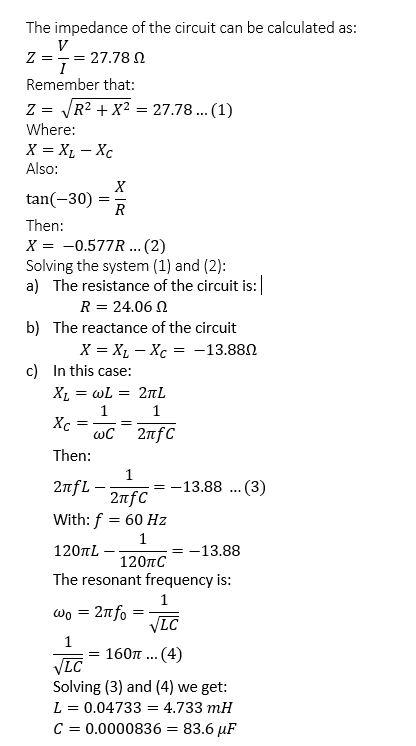

Answer 1

Answer #1
