In a certain series RLC circuit, Irms = 9.00 A, ΔVrms = 175 V, and the...

In a certain series RLC circuit, Irms = 9.00 A, ΔVrms = 175 V, and the current leads the voltage by 31.0°.

(a) What is the total resistance (in Ω) of the circuit?

_________Ω

(b) Calculate the reactance (in Ω) of the circuit (XL − XC).

__________ Ω

(c)What If? If the voltage in the circuit is maintained by an AC source operating at f = 60.0 Hz and the resonant frequency of the circuit is f0 = 90.0 Hz,what are the values of C (in µF) and L (in mH) in the circuit?

C= ______µF

L=________ mH

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

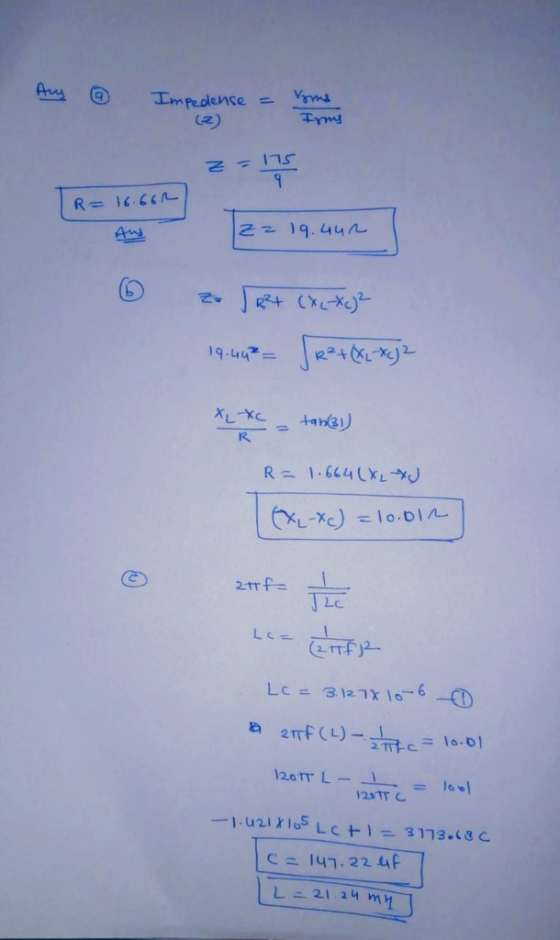

Answer #1

0 0
Add a comment
