Question

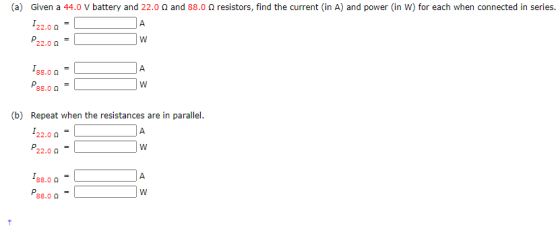

(a) Given a 44.0 V battery and 22.00 and 88.00 resistors, find the current in A) and power in W) for each when connected in s

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

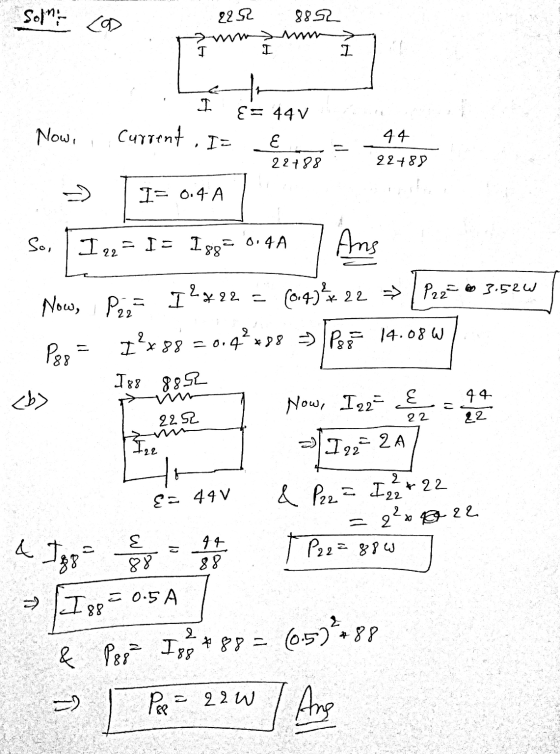

Solna 2252 882 I I 1 I {= 441 Now, Current . It E 22788 44 22789 -> I= 0.4 A So, 122= I= 188= 0.4A Ans Now, Pe= I*22 = (0.4)*

0 0
Add a comment
Know the answer?
Add Answer to:
(a) Given a 44.0 V battery and 22.00 and 88.00 resistors, find the current in A)...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • help and 72.0 resistors, find the current (in A) and power in W) for each when...

    help and 72.0 resistors, find the current (in A) and power in W) for each when connected in series. (a) Given a 40.0 V battery and 26.0 126.00 - P26.00 - 172.00 - P72.00 - (b) Repeat when the resistances are in parallel. 126.00 - P26.00 172.00 - P72.00

  • Three 4.3 Ω resistors are connected in series with a 16.0 V battery. Find the following....

    Three 4.3 Ω resistors are connected in series with a 16.0 V battery. Find the following. (a) the equivalent resistance of the circuit (b) the current in each resistor (c) Repeat for the case in which all three resistors are connected in parallel across the battery. equivalent resistance ______ current in each resistor _______

  • Three 4.3 Ω resistors are connected in series with a 16.0 V battery. Find the following....

    Three 4.3 Ω resistors are connected in series with a 16.0 V battery. Find the following. (a) the equivalent resistance of the circuit (b) the current in each resistor (c) Repeat for the case in which all three resistors are connected in parallel across the battery. equivalent resistance ______ current in each resistor _______

  • Three 4.0 Ω resistors are connected in series with a 17.0 V battery. Find the following....

    Three 4.0 Ω resistors are connected in series with a 17.0 V battery. Find the following. (a) the equivalent resistance of the circuit Ω (b) the current in each resistor A (c) Repeat for the case in which all three resistors are connected in parallel across the battery. equivalent resistance Ω current in each resistor A

  • Two resistors, A and B, are connected in parallel across a 7.0 V battery. The current...

    Two resistors, A and B, are connected in parallel across a 7.0 V battery. The current through B is found to be 1.0 A. When the two resistors are connected in series to the 7.0 V battery, a voltmeter connected across resistor A measures a voltage of 3.8 V. Find the resistances A and B. R_A = Your response differs from the correct answer by more than 10%. Double check your calculations. ohm R_B = 6.57 Your response is within...

  • (a) What is the equivalent resistance of five resistors connected in series with a 12.0-V battery...

    (a) What is the equivalent resistance of five resistors connected in series with a 12.0-V battery if each resistor has a value of 19.0 ? (b) Determine the current flowing through each of the five resistors. A (©) If the five resistors were instead connected in parallel across the battery, what would be the equivalent resistance? (d) Determine the current through each resistor for this parallel connection. А Submit Assignment Save Assignment Progress

  • Three Resistors in Parallel Three resistors are connected in parallel as shown in figure (a). A...

    Three Resistors in Parallel Three resistors are connected in parallel as shown in figure (a). A potential difference of 12.0V is maintained between points a and b. Three resistors connected in parallel. The Another circuit with three resistors and a voltage across each resistor is 12.0 V. battery. Is it equivalent to the circuit in (a)? a Ž 3.00 6.00 9.00 3.00 6.00 09.00 (a) Calculate the equivalent resistance of the circuit. SOLUTION Conceptualize Figure (a) shows that we are...

  • 1. A battery having an emf of 9.34 V delivers 116 mA when connected to a...

    1. A battery having an emf of 9.34 V delivers 116 mA when connected to a 67.5 Ω load. Determine the internal resistance of the battery. Ω 2.Three 9.4 Ω resistors are connected in series with a 19.0 V battery. Find the following. (a) the equivalent resistance of the circuit Ω (b) the current in each resistor A (c) Repeat for the case in which all three resistors are connected in parallel across the battery. equivalent resistance Ω current in...

  • Two resistors have resistances R(smaller) and R(larger), where R(smaller) < R(larger). When the resistors are connected...

    Two resistors have resistances R(smaller) and R(larger), where R(smaller) < R(larger). When the resistors are connected in series to a 12.0-V battery, the current from the battery is 1.77 A. When the resistors are connected in parallel to the battery, the total current from the battery is 11.3 A. Determine the two resistances.

  • Two resistors have resistances R(smaller) and R(larger), where R(smaller) < R(larger). When the resistors are connected...

    Two resistors have resistances R(smaller) and R(larger), where R(smaller) < R(larger). When the resistors are connected in series to a 12.0-V battery, the current from the battery is 1.86 A. When the resistors are connected in parallel to the battery, the total current from the battery is 10.4 A. Determine the two resistances.
