A 6.60 −μC particle moves through a region of space where an electric field of magnitude...

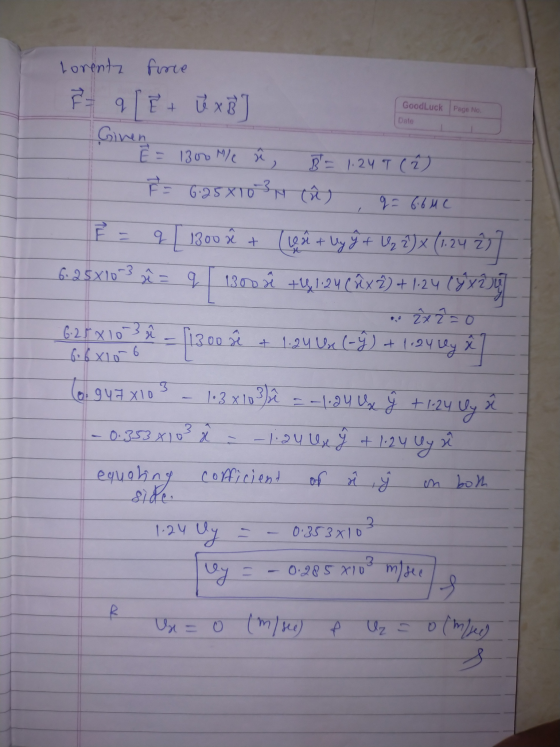

A 6.60 −μC particle moves through a region of space where an electric field of magnitude 1300 N/C points in the positive x direction, and a magnetic field of magnitude 1.24 T points in the positive z direction.
If the net force acting on the particle is 6.25×10−3 N in the positive xx direction, find the components of the particle's velocity. Assume the particle's velocity is in the x-y plane.
vx, vy, vz =
