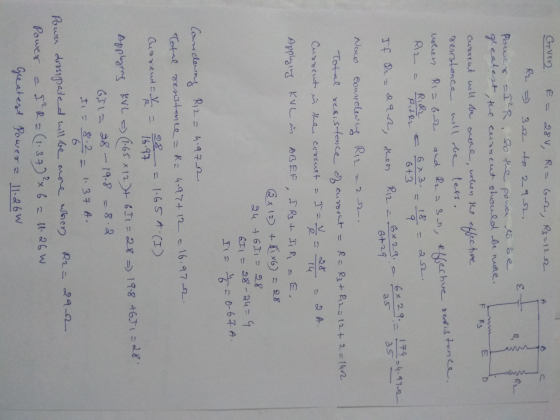

QUESTION 14 in the circuit shown, E - 28.0 V, R1 -6.00 S2, R3 - 12.09,...
In the circuit shown in (Figure 1), E = 29.0 V, R1 = 6.00 12, R3...
In the circuit shown in (Figure 1), E = 29.0 V, R1 = 6.00 12, R3 = 12.0 12, and R2 can vary between 3.00 N and 24.0 12. Part A For what value of R2 is the power dissipated by heating element Rị the greatest? Express your answer with the appropriate units. НА ? R2 Value Units Submit Request Answer Part B Calculate the magnitude of the greatest power. Express your answer with the appropriate units. μΑ PE Value...
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three...
The circuit shown in the figure below contains three resistors
(R1, R2, and R3) and three
batteries (VA, VB, and VC). The
resistor values are: R1=2 Ohms,
R2=R3=6 Ohms, and the battery voltages are
VA=25 V, VB=15 V, and VC=20 V.
When the circuit is connected, what will be the power dissipated by
R2?
a) 1.0 W
b) 2.0 W
c) 5.0 W
d) 6.0 W
e) 7.5 W
Vc R VA VB R2 { } R3
given the following circuit v= 66 volts R1= 5 ohms R2 = 14 ohms R3 =...
given the following circuit
v= 66 volts
R1= 5 ohms
R2 = 14 ohms
R3 = 8 ohms
R4 =6 ohms
R5=8 ohms
R6= 9 ohms
R7= 7 ohms
R8= 8 ohms
what is the total power dissipated by all the resisitors
excluding 1,3, and 6 answer in watts.
Question 3 1.2 pts 3) Given the following circuit with V = 46 Volts, R2 = 5 Ohms, R2 = 14 Ohms, R3 = 8 Ohms, R = 6 Ohms, Rs...
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three...
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, Vs, and V). The resistor values are: R1=2 Ohms, R2=R3=8 Ohms, and the battery voltages are Va=25 V. V8-15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R3? Vc R1 VA V: R₂ } R3 0.75 W 1.25 W 2.67 W 104.2 W 5.5 W
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three...
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA. VB, and Vc). The resistor values are: R1=2 Ohms, R=R3-8 Ohms, and the battery voltages are VA=25 V, V3=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R3? Vc R₂3 VA HE R2 R₃ 0.75 W 1.25 W 2.67 W 4.2 W 5.5 W
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three...
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, VB, and Vc). The resistor values are: R1=2 Ohms, R2=R3=6 Ohms, and the battery voltages are VA=25 V, V8=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R2? VC HA R VA ++ VB R2 R3 1.0 W 2.0W 5.0 W 6.0 W 7.5 W
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three...
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, VB, and Vc). The resistor values are: R1=2 Ohms, R =R3=4 Ohms, and the battery voltages are VA=25 V, V8=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R1? VC + R1 ş VA + - + Vв R2 ma R3 1.25 W 2.0 W 12.5 W 6.25 W 8.13 W
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three...
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, VB, and Vc). The resistor values are: R1=2 Ohms, R2=R3=6 Ohms, and the battery voltages are Va=25 V, Ve=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R2? VC HA R VA + HE VB R2 R₃ O 10W O 20W O 5.0W O 6.0 W O 7.5 W
Rc circuit R2 7) R3 Four resistors of values R1 = 2.0 Ω, R2 = 4.0...
Rc circuit
R2 7) R3 Four resistors of values R1 = 2.0 Ω, R2 = 4.0 Ω, R3-3.00, and R4° 9.0 Ω are connected across an 8.0 VDC source as shown in the above figure, what is the power dissipated in R2, the 4.00 resistor? A) 4.0 W B) 16. W C)9.0 W D) 7.1 W E) 1.0 W 8) Also calculate the voltage across R a) 1 V b) 2 V c) 3 V d) 4 V
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three...
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, V8, and Vc). The resistor values are: R1=2 Ohms, R2=R3=6 Ohms, and the battery voltages are Va=25 V, V8=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R2? Vc R1 th A VE R2 {} R₃ O 1.0 W O 2.0 w O 5.0W O 6.0 W 7.5 W
In the circuit shown in (Figure 1), E = 29.0 V, R1 = 6.00 12, R3 = 12.0 12, and R2 can vary between 3.00 N and 24.0 12. Part A For what value of R2 is the power dissipated by heating element Rị the greatest? Express your answer with the appropriate units. НА ? R2 Value Units Submit Request Answer Part B Calculate the magnitude of the greatest power. Express your answer with the appropriate units. μΑ PE Value...
The circuit shown in the figure below contains three resistors
(R1, R2, and R3) and three
batteries (VA, VB, and VC). The
resistor values are: R1=2 Ohms,
R2=R3=6 Ohms, and the battery voltages are
VA=25 V, VB=15 V, and VC=20 V.
When the circuit is connected, what will be the power dissipated by
R2?
a) 1.0 W
b) 2.0 W
c) 5.0 W
d) 6.0 W
e) 7.5 W
Vc R VA VB R2 { } R3
given the following circuit
v= 66 volts
R1= 5 ohms
R2 = 14 ohms
R3 = 8 ohms
R4 =6 ohms
R5=8 ohms
R6= 9 ohms
R7= 7 ohms
R8= 8 ohms
what is the total power dissipated by all the resisitors
excluding 1,3, and 6 answer in watts.
Question 3 1.2 pts 3) Given the following circuit with V = 46 Volts, R2 = 5 Ohms, R2 = 14 Ohms, R3 = 8 Ohms, R = 6 Ohms, Rs...
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, Vs, and V). The resistor values are: R1=2 Ohms, R2=R3=8 Ohms, and the battery voltages are Va=25 V. V8-15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R3? Vc R1 VA V: R₂ } R3 0.75 W 1.25 W 2.67 W 104.2 W 5.5 W
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA. VB, and Vc). The resistor values are: R1=2 Ohms, R=R3-8 Ohms, and the battery voltages are VA=25 V, V3=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R3? Vc R₂3 VA HE R2 R₃ 0.75 W 1.25 W 2.67 W 4.2 W 5.5 W
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, VB, and Vc). The resistor values are: R1=2 Ohms, R2=R3=6 Ohms, and the battery voltages are VA=25 V, V8=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R2? VC HA R VA ++ VB R2 R3 1.0 W 2.0W 5.0 W 6.0 W 7.5 W
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, VB, and Vc). The resistor values are: R1=2 Ohms, R =R3=4 Ohms, and the battery voltages are VA=25 V, V8=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R1? VC + R1 ş VA + - + Vв R2 ma R3 1.25 W 2.0 W 12.5 W 6.25 W 8.13 W
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, VB, and Vc). The resistor values are: R1=2 Ohms, R2=R3=6 Ohms, and the battery voltages are Va=25 V, Ve=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R2? VC HA R VA + HE VB R2 R₃ O 10W O 20W O 5.0W O 6.0 W O 7.5 W
Rc circuit
R2 7) R3 Four resistors of values R1 = 2.0 Ω, R2 = 4.0 Ω, R3-3.00, and R4° 9.0 Ω are connected across an 8.0 VDC source as shown in the above figure, what is the power dissipated in R2, the 4.00 resistor? A) 4.0 W B) 16. W C)9.0 W D) 7.1 W E) 1.0 W 8) Also calculate the voltage across R a) 1 V b) 2 V c) 3 V d) 4 V
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, V8, and Vc). The resistor values are: R1=2 Ohms, R2=R3=6 Ohms, and the battery voltages are Va=25 V, V8=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R2? Vc R1 th A VE R2 {} R₃ O 1.0 W O 2.0 w O 5.0W O 6.0 W 7.5 W
