SHOW YOUR WORK Find the amount of Heat transferred by convection, given: the area exposed to...
SHOW YOUR WORK

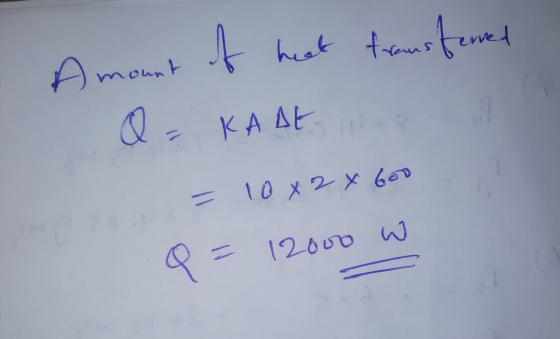

Find the amount of Heat transferred by convection, given: the area exposed to convective currents is 2m2, the coefficient of convection is K'c is 10W/m2K, the difference in temperature between the surface and the convective fluid is 600K (T1 - T2).
Homework Answers
Add Answer to:
SHOW YOUR WORK
Find the amount of Heat transferred by convection, given: the
area exposed to...
