4.70 ka block is pulled up a indined plane by a 69.0 N force that is...

Question

Question

4.70 ka block is pulled up a indined plane by a 69.0 N force that is parallel The normal for the block from the plane the tol

science physics

Answer 1

Answer #1

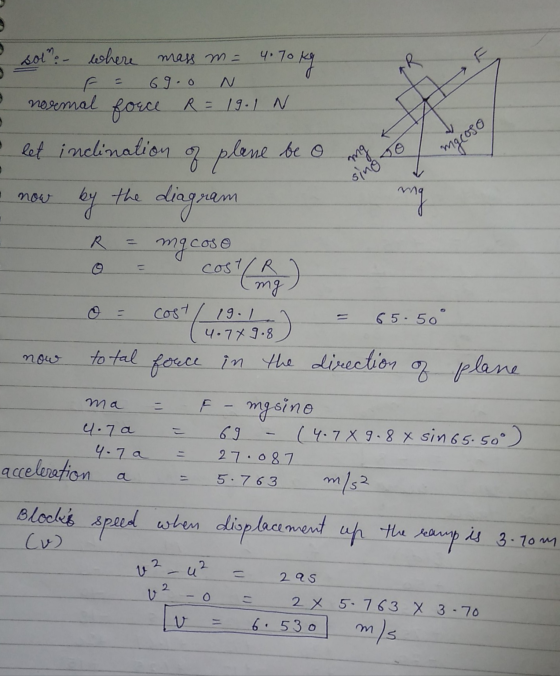

69.o R = 19.1 N sol?: - where mass m = 4.70 kg F normal force • let inclination by the diagram mgcoso cosa) of plane be o mg

Answer 2

Similar Homework Help Questions

4.7kg block is pulled up a frictionless inclined plane by a 69.0 N force that is...

4.7kg block is pulled up a frictionless inclined plane by a 69.0 N force that is parallel to the plane, starting from rest. the normal force on the block from the plane has magnitude 19.1 N. What is the blocks speed when its displacement up the ramp is 3.7m?
A 50.0 kg block is pulled up from an inclined plane at 13.0 ° by a...

A 50.0 kg block is pulled up from an inclined plane at 13.0 ° by a force of 250 N that is exerted parallel to the plane. The coefficient of kinetic friction between the block and the plane is 0.200. The magnitude of the acceleration of the block is:
A 25.5 kg block is being pulled by a force F = 241 N up along...

A 25.5 kg block is being pulled by a force F = 241 N up along a rough incline. The coefficient of kinetic friction between the block and the incline is μk = 0.40. The block is pulled through a distance of 27.0 m. Angle is 33 degrees. (a) Solve for the magnitude of the normal force (in Newtons)? -Calculate the work (in Joules) done by the normal force. Pay attention to the angle in the work formula and the...

Block 1 (20 kg) is pulled by a rope from left to right up a ramp...

Block 1 (20 kg) is pulled by a rope from left to right up a ramp which is inclined 30 degrees from the horizontal. The rope pulls on block 1 with a force of 220 N parallel to the surface of the inclined plane. The coefficient of kinetic friction between the block and the surface equals 0.1. On a sheet of paper, draw the free body diagram for block 1 using the two-subscript notation from class. Assume that the x-axis...
A 351 kg box is pulled 9.00 m up a 30° frictionless, inclined plane by an...

A 351 kg box is pulled 9.00 m up a 30° frictionless, inclined plane by an external force of 5425 N that acts parallel to the plane. Calculate the work done by the external force. work done by the external force: Calculate the work done by gravity. work done by gravity: Calculate the work done by the normal force. work done by the normal force:
A 351 kg box is pulled 6.00 m up a 30° frictionless, inclined plane by an...

A 351 kg box is pulled 6.00 m up a 30° frictionless, inclined plane by an external force of 4775 N that acts parallel to the plane. a- Calculate the work done by the external force. b-Calculate the work done by gravity. c-Calculate the work done by the normal force.

A 347 kg box is pulled 6.00 m up a 30° frictionless, inclined plane by an...

A 347 kg box is pulled 6.00 m up a 30° frictionless, inclined plane by an external force of 4625 N that acts parallel to the plane. Calculate the work done by the external force. work done by the external force: J Calculate the work done by gravity. work done by gravity: J Calculate the work done by the normal force.
A 350 kg box is pulled 6.40 m up a 30 degree inclined plane by an...

A 350 kg box is pulled 6.40 m up a 30 degree inclined plane by an external force of 5000 N that acts parallel to the frictionless plane. A) Calculate the work done by the external force. Answer in kJ. B) Calculate the work done by gravity. Answer in kJ. C) Calculate the work done by the normal force. Answer in J. Please answer this in a step-by-step fashion, I would like to see the setting up so that I...
A 25 NN block is pushed up a frictionless 33º inclined Plane by a horizontal force of...

A 25 NN block is pushed up a frictionless 33º inclined Plane by a horizontal force of 120 NN applied parallel to the ground. The block is moved 10 m along the plane. 1. Find the work done by the weight of the block. 2. Find the work done by the normal force. XV F

Block 1 (20 kg) is pulled by a rope from left to right up a ramp...

Block 1 (20 kg) is pulled by a rope from left to right up a ramp which is inclined 45 degrees from the horizontal. The rope pulls on block 1 with a force of 360 N parallel to the surface of the inclined plane. The coefficient of kinetic friction between the block and the surface equals 0.2. Assume that the x-axis is parallel to the incline and positive in the direction up the incline. What is the magnitude of the...
