AC sweep

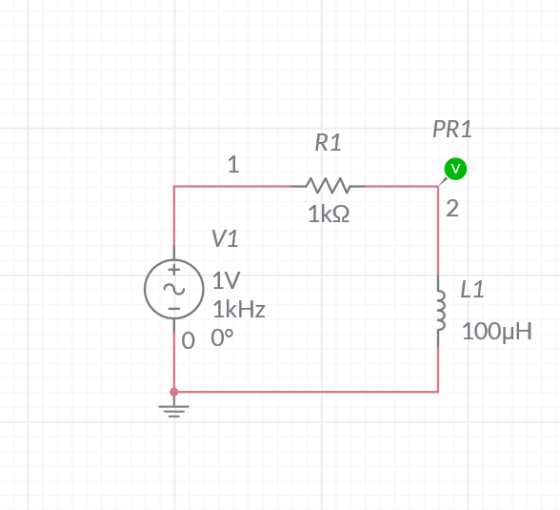

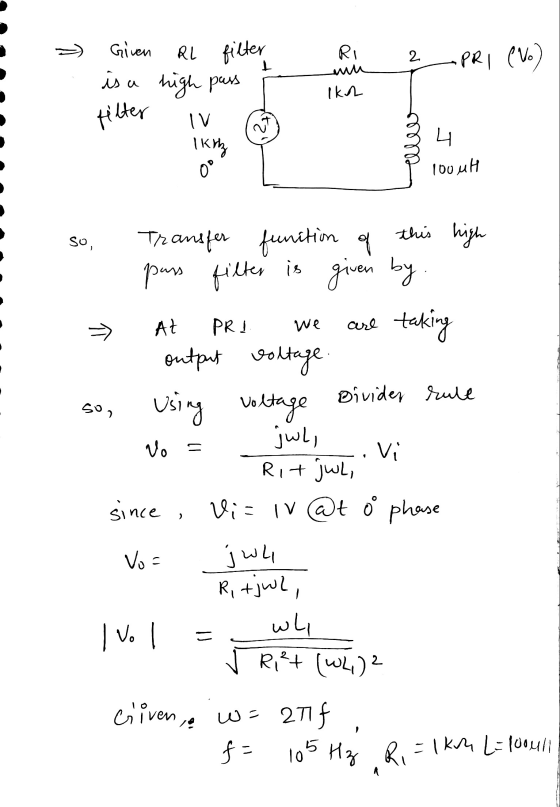

Q3: What is the attenuation in dB for the RL filter at 100k Hz?
Q4: What is the phase at 100 Hz? (Read on your plot)
Homework Answers

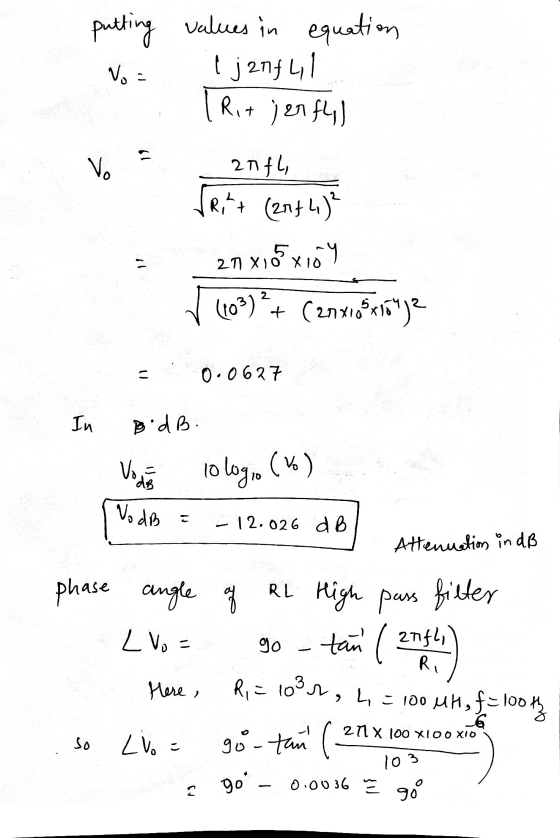

![putting values in equation Vo = I janful Rit jen 54] 19 Vo 2nfl, SR?+ (2144) 211 X36x104 (103)² + (20x105x154) 2 0.0627 In Bi](http://img.homeworklib.com/questions/3ae93fd0-de66-11ea-8a61-a922e5dd9675.png?x-oss-process=image/resize,w_560)
Add Answer to:
AC sweep
Q3: What is the attenuation in dB for the RL filter at 100k
Hz?...
AC sweep Q1: What is the attenuation in dB for the RC filter at 100k Hz?...
AC sweep
Q1: What is the attenuation in dB for the RC filter at 100k
Hz?
Q2: What is the phase at 100 Hz? (Read on your plot)
PR1 R1 1 N V 1kΩ V1 C1 17 1MHz 0° 100uF 0
2. If the voltage gain of the amplifier is m (50 points) easured to be 50 dB, what is the value of Ru? R8 4.7 Ω C5 R6 R3 4.7kQ c3 R1 Q2 20pF 2N2222A 20pF C1 Q1 2N2222A V1 15V RL R9 1200 R4 V...
2. If the voltage gain of the amplifier is m (50 points) easured to be 50 dB, what is the value of Ru? R8 4.7 Ω C5 R6 R3 4.7kQ c3 R1 Q2 20pF 2N2222A 20pF C1 Q1 2N2222A V1 15V RL R9 1200 R4 V2 5mVpk R2 0° 120Ω R7 1kHz 22ka C4 R5 C2 3300.3 100 F 300 100uF
2. If the voltage gain of the amplifier is m (50 points) easured to be 50 dB, what is...
Need to create a bandpass filter with cutoff frequencies from 300Hz to 3000Hz with a op-amp included in circuit. I have...
Need to create a bandpass filter with cutoff frequencies from
300Hz to 3000Hz with a op-amp included in circuit. I have examples
below. you can use multisim, Pspice, or matlab for simulation of
circuit. I will up vote. Thanks.
Band-Pass Jitte L 300 H2 2R Ra C ХВР1 C1 IN OUT R2 53.10 1pF V1 R1 5310 6Vpk 1KHZ 0° BODE PLOT BODE PLOT m Design 000 50 00 -N00 00 - 150 00 Cune -20000 Bode Reault 100G 100...
Q1: What is the total impedance of the circuit? Q2: At what AC source frequency the...
Q1: What is the total impedance of the circuit?
Q2: At what AC source frequency the voltage and the current in
the circuit are in phase?
C1 PR1 3 N HE 50.0F C2 HE 100nF PR4 V1 30.0V 10.0kHz 0" R1 10KO LT BOOMH R2 ΘΩ PR3 PR2 4 191.736A
Choose R=1.5 k Ω, and L=27 mH . Input from AWG is a Sine Wave, 4 V, 500 Hz
Circuit 3-RL High Pass Filter Circuit Choose R=1.5 k Ω, and L=27 mH . Input from AWG is a Sine Wave, 4 V, 500 Hz, Base 2 ms/div, Click on Network Analyzer. Choose start frequency 100 Hz and Stop frequency 100 kHz and steps 100 .Bode scale for Magnitude: Top 0 dB, Range 10 dBBode scale for Phase: Top 90°, Range 75%. (You can always play with the scale. Make sure the Phase and Magnitudo are seen well on the screen)Measure...
please I need details l and....Debate Club | Offic A) Theoretical Design Design a common emitter BJT amplifier with the following requirements: -Rin-10 K2, and Ro-45 ㏀ (Neglect the Early voltage...
please I need details
l and....Debate Club | Offic A) Theoretical Design Design a common emitter BJT amplifier with the following requirements: -Rin-10 K2, and Ro-45 ㏀ (Neglect the Early voltage Effect) Vo/Vsig- Gv-40 VIV or 32 dB " VCC-9 V V, IC-1mA, VCE-3.25V and β-100 RL-40 kQ, Rsige I ka, R 1-3R2, and C1-C2-1 μF Voc RC C2 R1 Rsig C1 RL R2 RE B) Verify your design using Orcad Capture Pspice by doing 1) AC sweep (frequency response):...
Series and parallel RL and RC circuits with an AC source. A 60 Hz voltage source...
Series and parallel RL and RC circuits with an AC source. A 60 Hz voltage source has an amplitude of V 120 V. For the following problems, compute the indicated phasors including bath magnitudes and phase angles, and sketch the phasor diagrams (no submission) Q4. The source (assuming angle of ντ is 0°) is connected across a parallel RC ac circuit with R = 7.8 Ohm and Xc = 1/10C = 2.5 Ohm. 4a) Calculate the magnitude of current IR...
Please show work. Nice handwriting appreciated. thank you V1 0/12V C.I Rl 0.25 L1 1mH 22uF...
Please show work. Nice
handwriting appreciated. thank you
V1 0/12V C.I Rl 0.25 L1 1mH 22uF 1kHz Use Complex Analysis to analyze circuit. Express complex results in exponential notation. Analyze the RLC circuit. All phases are relative to the input voltage. 1. Determine the complex voltage (amplitude and phase) across the inductor. (76.7 V, 165 degh 2. Determine the complex voltage (ampl and phase) across the capacitor. (88.3V, -14 deg) 3. Determine the complex voltage (ampl and phase) across the...
I need help to measure the high frequency cutoff. The circuit below is for HIGH PASS...
I need help to measure the high frequency cutoff. The circuit
below is for HIGH PASS FILTER
I made it but I dont know how to accurately measure the high
cutoff as what we did in the lab. in the lab we get 14.35
kHz but when I try in the multisim and varing the freqency
as shown in the table below I dont get any change.
Please do it in multisim and explain your answer, thanks.
f
1-kHz
2-kHz...
3. For the active filter circuit below, complete the following: a) Find the magnitude of the...
3. For the active filter circuit below, complete the following: a) Find the magnitude of the transfer function | H | starting from the nodal equations. b) Find the phase shift of the transfer function (W) c) Find the cutoff frequency fc in Hz d) Is this a high pass or low pass filter? e) Find the passband gain of the filter 62 k2 ANA EVA 22 nF 3.3k f) Given the following input signal: vi(t) = 1.0 sin(2nft +...
AC sweep
Q1: What is the attenuation in dB for the RC filter at 100k
Hz?
Q2: What is the phase at 100 Hz? (Read on your plot)
PR1 R1 1 N V 1kΩ V1 C1 17 1MHz 0° 100uF 0
2. If the voltage gain of the amplifier is m (50 points) easured to be 50 dB, what is the value of Ru? R8 4.7 Ω C5 R6 R3 4.7kQ c3 R1 Q2 20pF 2N2222A 20pF C1 Q1 2N2222A V1 15V RL R9 1200 R4 V2 5mVpk R2 0° 120Ω R7 1kHz 22ka C4 R5 C2 3300.3 100 F 300 100uF
2. If the voltage gain of the amplifier is m (50 points) easured to be 50 dB, what is...
Need to create a bandpass filter with cutoff frequencies from
300Hz to 3000Hz with a op-amp included in circuit. I have examples
below. you can use multisim, Pspice, or matlab for simulation of
circuit. I will up vote. Thanks.
Band-Pass Jitte L 300 H2 2R Ra C ХВР1 C1 IN OUT R2 53.10 1pF V1 R1 5310 6Vpk 1KHZ 0° BODE PLOT BODE PLOT m Design 000 50 00 -N00 00 - 150 00 Cune -20000 Bode Reault 100G 100...
Q1: What is the total impedance of the circuit?
Q2: At what AC source frequency the voltage and the current in
the circuit are in phase?
C1 PR1 3 N HE 50.0F C2 HE 100nF PR4 V1 30.0V 10.0kHz 0" R1 10KO LT BOOMH R2 ΘΩ PR3 PR2 4 191.736A
please I need details
l and....Debate Club | Offic A) Theoretical Design Design a common emitter BJT amplifier with the following requirements: -Rin-10 K2, and Ro-45 ㏀ (Neglect the Early voltage Effect) Vo/Vsig- Gv-40 VIV or 32 dB " VCC-9 V V, IC-1mA, VCE-3.25V and β-100 RL-40 kQ, Rsige I ka, R 1-3R2, and C1-C2-1 μF Voc RC C2 R1 Rsig C1 RL R2 RE B) Verify your design using Orcad Capture Pspice by doing 1) AC sweep (frequency response):...
Series and parallel RL and RC circuits with an AC source. A 60 Hz voltage source has an amplitude of V 120 V. For the following problems, compute the indicated phasors including bath magnitudes and phase angles, and sketch the phasor diagrams (no submission) Q4. The source (assuming angle of ντ is 0°) is connected across a parallel RC ac circuit with R = 7.8 Ohm and Xc = 1/10C = 2.5 Ohm. 4a) Calculate the magnitude of current IR...
Please show work. Nice
handwriting appreciated. thank you
V1 0/12V C.I Rl 0.25 L1 1mH 22uF 1kHz Use Complex Analysis to analyze circuit. Express complex results in exponential notation. Analyze the RLC circuit. All phases are relative to the input voltage. 1. Determine the complex voltage (amplitude and phase) across the inductor. (76.7 V, 165 degh 2. Determine the complex voltage (ampl and phase) across the capacitor. (88.3V, -14 deg) 3. Determine the complex voltage (ampl and phase) across the...
I need help to measure the high frequency cutoff. The circuit
below is for HIGH PASS FILTER
I made it but I dont know how to accurately measure the high
cutoff as what we did in the lab. in the lab we get 14.35
kHz but when I try in the multisim and varing the freqency
as shown in the table below I dont get any change.
Please do it in multisim and explain your answer, thanks.
f
1-kHz
2-kHz...
3. For the active filter circuit below, complete the following: a) Find the magnitude of the transfer function | H | starting from the nodal equations. b) Find the phase shift of the transfer function (W) c) Find the cutoff frequency fc in Hz d) Is this a high pass or low pass filter? e) Find the passband gain of the filter 62 k2 ANA EVA 22 nF 3.3k f) Given the following input signal: vi(t) = 1.0 sin(2nft +...
