Question

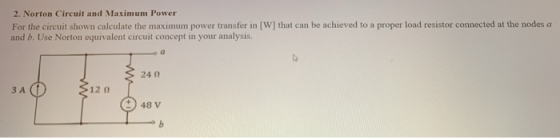

2. Norton Circuit and Maximum Power For the circuit shown calculate the maximum power transfer in [W] that can be achieved to
0 0
Add a comment Improve this question Transcribed image text
Answer #1

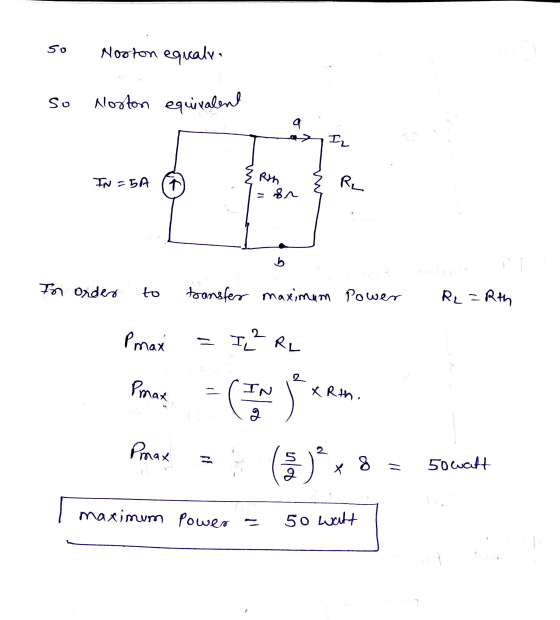

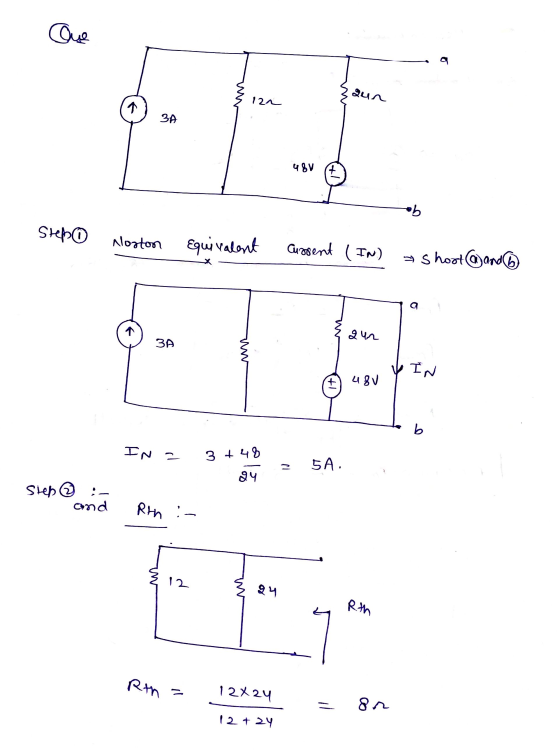

One aun 122 ↑ 3A 48V ob Srebo Norton Equivalent Cussent (IN) → Shoot @and 3A IN + 48V b IN - 3 +48 SA ni 24 Step :- cond Rthso Nooton equaly. so Norton equivalent a IL IN=5A Rih R2 8л In order to transfer maximum Power R₂ =Rth Pmax I 2 RL Pmax I zi

Add a comment
Know the answer?
Add Answer to:
2. Norton Circuit and Maximum Power For the circuit shown calculate the maximum power transfer in...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
  • 4. (10 Points) The Norton equivalent circuit for a linear circuit is shown. If a load...

    4. (10 Points) The Norton equivalent circuit for a linear circuit is shown. If a load with a variable resistance is connected between terminals a and b, it is found that the maximum power transferred to the load as the resistance is varied is 32 W. What is the value of the current source in the Norton circuit? a 1 10 22 b

  • 5.) For the circuit shown in Figure 5, (a) determine the Norton equivalent current. source IN...

    5.) For the circuit shown in Figure 5, (a) determine the Norton equivalent current. source IN and Norton equivalent parallel resistance RN with respect to load terminals a and b. Then use your Norton equivalent circuit in part (b) to find the load resistance R mas that would result in the maximum power transfer from the source, and calculate the maximum power. (120 pt, 60 pt) (a) RN IN P MAX (b) R LMAX 10n 30A S20n Ta 10A on...

  • Maximum Power Transfer Learning Goal: To find the load resistance and load power for the maximum...

    Maximum Power Transfer Learning Goal: To find the load resistance and load power for the maximum power transferred to a load. A resistive network containing independent and dependent sources can be modeled with a Thévenin equivalent circuit, as shown below. Maximum power transfer occurs when the load resistance RLequals the Thévenin resistance RTh Part A Find the Thévenin equivalent circuit with respect to the terminals a,b for the circuit above. What is the Thévenin voltage VTh? Express your answer in...

  • Norton equivalent circuit

    a) the Norton equivalent circuit external to the load ZL; (14 marks) b) the load impedance ZL which maximum power can be delivered to the load; and (1 mark) c) the maximum power delivered to the load. (4 marks) d) Calculate the real power dissipated if the load impedance is 8+2jΩ. (3 marks)

  • Q#2 The variable resistor Ro in the circuit below is adjusted for maximum power transfer to...

    Q#2 The variable resistor Ro in the circuit below is adjusted for maximum power transfer to Ro a) b) c) Find the value of Ro Find the maximum power that can be delivered to Ro What percentage of the total power developed in the circuit is delivered to Ro found in parta)? 316is 16? 32 ? A 180 ? 200 V 64 ? 48 ?

  • For the circuit shown above, (a) determine the impedance ZL results in maximum average power transfer...

    For the circuit shown above, (a) determine the impedance ZL results in maximum average power transfer to ZL ? (b) What is the maximum average power transferred to the load impedance determined in (a) ? 20/0° © 2003 -j6n+ Z For the circuit shown above, (a) determine the impedance ZL results in maximum average power transfer to ZL? (b) What is the maximum average power transferred to the load impedance determined in (a) ?

  • EE 282-Circuit I Pre-Lab 9 Maximum Power Transfer Theorem Name Concepts: In this pre-lab we will ...

    EE 282-Circuit I Pre-Lab 9 Maximum Power Transfer Theorem Name Concepts: In this pre-lab we will be leaming about Maximum Power Transfer Theorem. Maximum power is transferred to the load when the load resistance equals the thexenin equivalent, and we carry out the analysis using Thevenin's equivalent circuit. In order to do this, first build the following circuit on Mutism. 1 R1 5.1k0 R3 2 V1 R2 8kQ 6.8㏀ Fig. 1 Part 1: To find the Thevenin equivalent resistance, we...

  • Please show all work thank you 2. Find the Thevenin equivalent of the circuit shown below...

    Please show all work thank you 2. Find the Thevenin equivalent of the circuit shown below and determine the maximum power that it could transfer to a load resistor connected across the +/- output terminals. WW 112 max 12V RAHV 24 in 24 in .

  • In the following circuit, calculate the resistance that must be placed in the terminals to transfer...

    In the following circuit, calculate the resistance that must be placed in the terminals to transfer the maximum power, and its power. (Put in the Blackboard answer the power calculation in Watts.) The value of the voltage source is 59 Volts. 30 12 W + Vy - 24 Vy/48 V

  • In the circuit of fog 2.4, RL is adjusted for maximum power transfer. Use the Thevenin...

    In the circuit of fog 2.4, RL is adjusted for maximum power transfer. Use the Thevenin equivalent circuit to determine the value of RL. Hence, determine the maximum power that can be delivered to RL. Problem 2.4 In the circuit of Fig. 2.4, Ri is adjusted for maximum power transfer. Use the Thevenirn equivalent circuit to determine the value of RL. Hence, determine the maximum power determine the thau can be delver t RL V. 2000 1 mA 2 kn...
