If a vertical load of 1 ton is applied to a column of 1 Sq. ft...

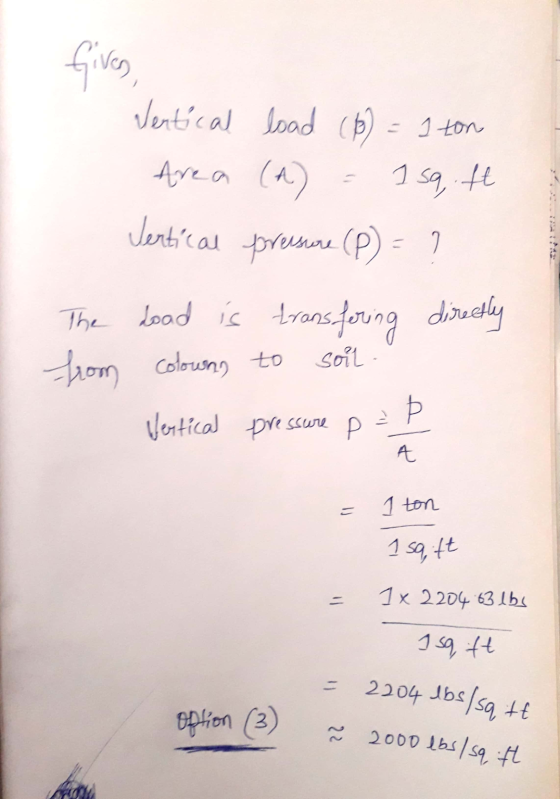

If a vertical load of 1 ton is applied to a column of 1 Sq. ft cross-sectional area and the rests directly on the soil surface the vertical pressure exerted by the column onto the soil would be ------- on average. 1) 1 ton/cubic Yard 2) 1000 lbs/ft 3) 2000 lbs/Sq.ft or 4) 1 ton
Homework Answers
