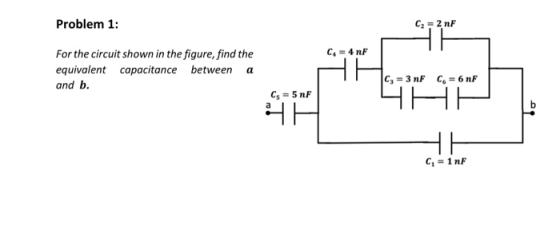

C1 = 4nF Problem 2: b a) For the circuit shown in the figure, find the equivalent a capacitance between a and b. C2 = 15 nF C3 = 10 nF HAE b) The potential difference between a and bis 20 V. Find the Q1 = charge stored in each capacitor. Q2 Q3 =
Problem 5: (24 points) Consider the circuit shown below. Assume C1 = 30 nF, C2 = C3 = C4 = 10 nF, and V = e = 12 V. a) (12 points) Find the equivalent capacitance of the circuit. c, c, AHA v1 C3 = b) (12 points) Find the charge and voltage across capacitors C1 and C2. Hint. Draw simplified circuits.
hysics 113 Worksheet 2 Spring 2019 Problem 2 470 nF 33 nF 2.2 uF 4.7 uF 3.3 uF 2 Figure 1: Capacitor Network Define AV VB VA 10 V and calculate the following: (3 Points) Calculate the Equivalent Capacitance, Cq, of the circuit shown in Figure 1. . (3 Points) Calculate the Charge on the Equivalent Capacitance, (3 Points) Calculate the Voltage at PointJ in Figure 1 with respect to Terminal B Problem3 Assume
Physics 113 Worksheet 2 Spring 2019 Problem 2 470 nF 33 nF 2.2 uF 4.7 uF. 3.3 uF Figure 1: Cspacitor Network Define AVV VAV and calculate the following (3 Points) Calculate the Equivalent Capacitance, G,, of the circuit shown in Figure 1. (3 Points) Calculate the Charge on the Equivalent Capacitance, (3 Points) Calculate the Voltage at Point J in Figure 1 with respect to Terminal B Problem 3 Assume A= (3x-2y)2 + (x-y), . (3 Points) Calculate the...
3. Find the Equivalent Capacitance Between Terminals a and b C- 5 nF C3 8 nF C1 30 nF C 16 nF C4 4 nF C10= 20 nF C2= 26 nF C=10 nF Cg 20 nF C5 5 nF
Question-20 5 points Capacitors Cz, C2 and Cz are connected as shown in the circuit below. The equivalent capacitance between points A and B is: C1 a. 16 nF b. 11 nF C. 0.77 nF d. 0.1 nF 1nF C2 10nF C3 InF Question-21 5 points The impedance, Z of a 10 mH inductor at a frequency of f = 1000 Hz, expressed as a complex number is a. –j 62.83W b. +j 62.83W C. –j 10W d. +j 10w...
Problem 1 Consider the following circuit with four fully charged parallel-plate capacitors V= 20.0 V Figure 7: Problem . (a) Find the equivalent capacitance of this circuit. (6pt) (b) Find the charge on and potential difference across each capacitor. (10pt) (c) Find the energy stored in each capacitor. (4pt) Bonus: If the space between the plates of capacitor C1 is filled with a dielectric with the dielectric constant K = 3 and simultaneously the distance between the plates of capacitor...
The figure shows a circuit with an ideal battery and set of
capacitors. The battery has an emf
=12 V. The capacitors have capacitances C1 = C2 = C3 = C4 = 6
nF.
(a) What is the equivalent capacitance of the entire network of
capacitors?
(b) What is the electrical energy stored in the capacitor with
capacitance C2?
We were unable to transcribe this imageProblem 6 C. The figure shows a circuit with an ideal battery and set of...
Part C Find the equivalent capacitance with respect to the terminals a b for the circuit shown in (Figure 2). Suppose that Ca = 31 JF Express your answer to three significant figures and include the appropriate units. OBI ? H Com= 4.615 nF Submit Previous Answers Request Answer X Incorrect; Try Again: 3 attempts remaining Figure < 1 of 2 > Part D Determine the the initial voltage drop for the equivalent capacitance with respect to the terminals a...
PROBLEM 7 (10 POINTS) Compute the equivalent capacitance of the configuration below. Take C1 =12 nF, C2 = 12 nF, C3 = 6 nF. :-of CFDT 6 =12 C=7676 - C₂ = 12 = Co=12 PROBLEM 7 (10 POINTS) Examine the circuit below. Redraw the circuit below with: (a) the voltage sources shorted and the current sources open; and (b) the voltage sources Lee charted No commutationes
