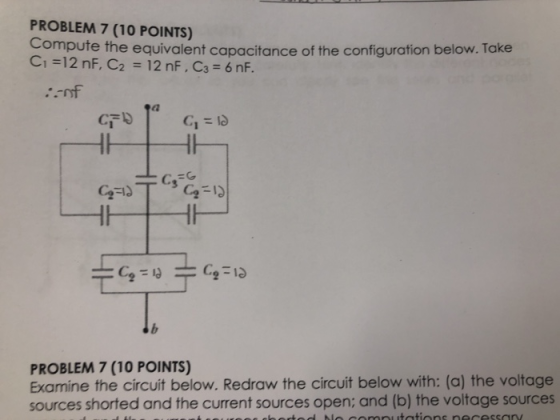

PROBLEM 7 (10 POINTS) Compute the equivalent capacitance of the configuration below. Take C1 =12 nF,...

Question

Question

engineering Electrical-Engineering

Answer 1

Answer #1

Rules for equivalent capacitance

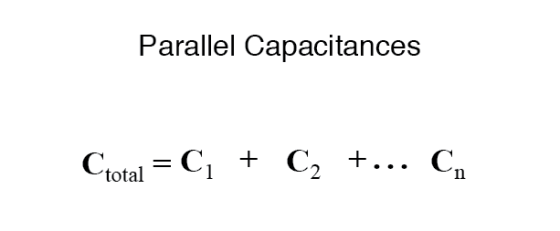

Parallel Capacitances Ctotal = C, + C2 +... C

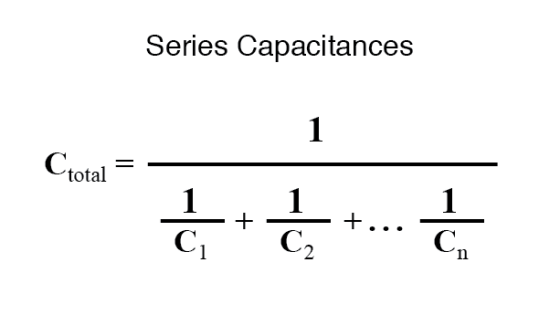

Series Capacitances Ctotal ī + +... Í

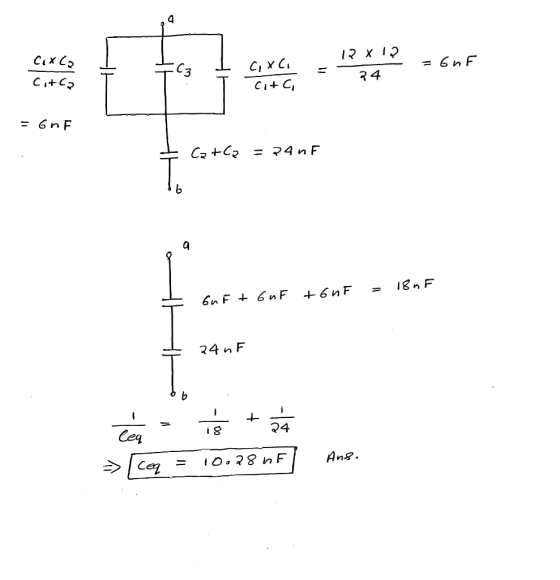

Solution:

12 x 12 Caxca Cita +62 I = 6nF c, xl, 24 CitC = GnF ca+C2 = 24 nF = 185 F on F + 60F +6nF I 24nF edes is + za => [ceq = 10.78

Answer 2
