The material for the tension specimen has the stress-strain diagram shown. Determine approximately the modulus of...

Question

Question

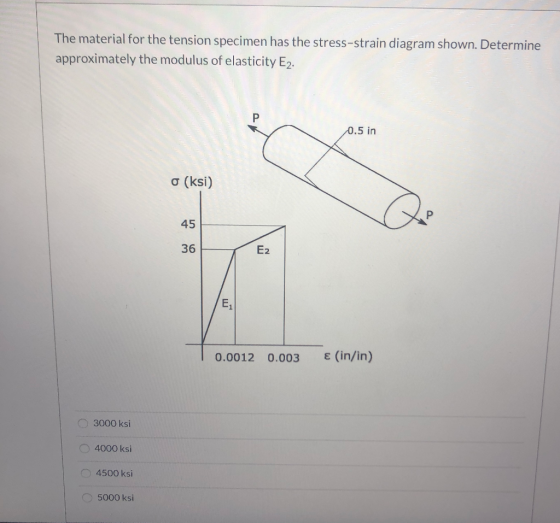

The material for the tension specimen has the stress-strain diagram shown. Determine approximately the modulus of elasticity

engineering Mechanical-Engineering

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

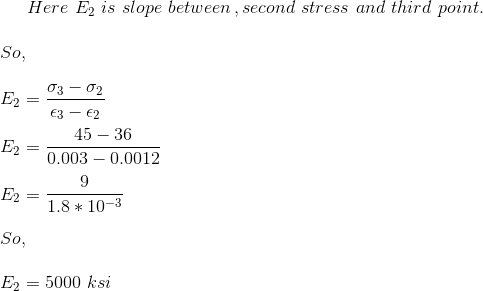

$Here\,\,E_2\,\,is\,\,slope \,\,between\,,second\,\,stress\,\,and\,\,third\,\,point. \\\\So,\\\\E_2=\frac{\sigma_3-\sigma_2}{\epsilon_3-\epsilon_2}\\\\E_2=\frac{45-36}{0.003-0.0012} \\\\ E_2=\frac{9}{1.8*10^{-3}}\\\\ So,\\\\ E_2=5000\,\,ksi$

Add a comment
