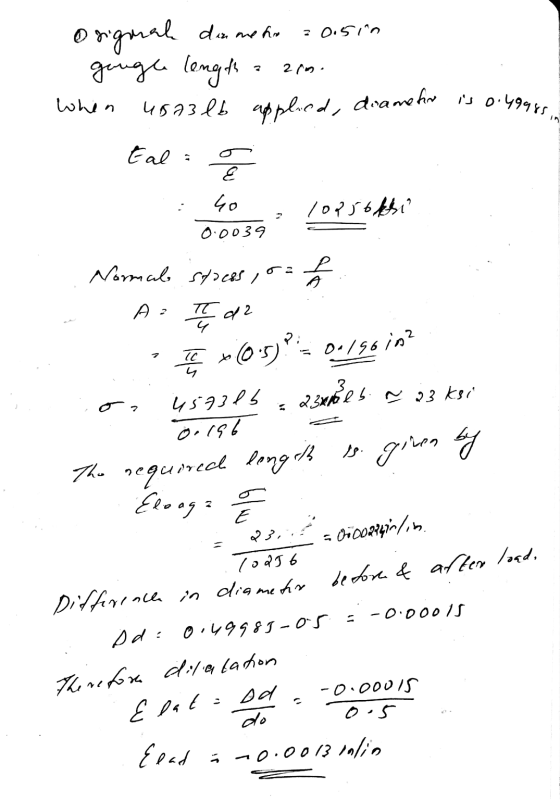

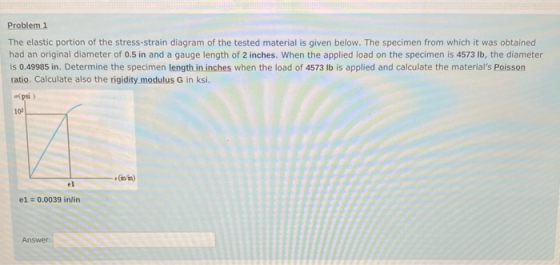

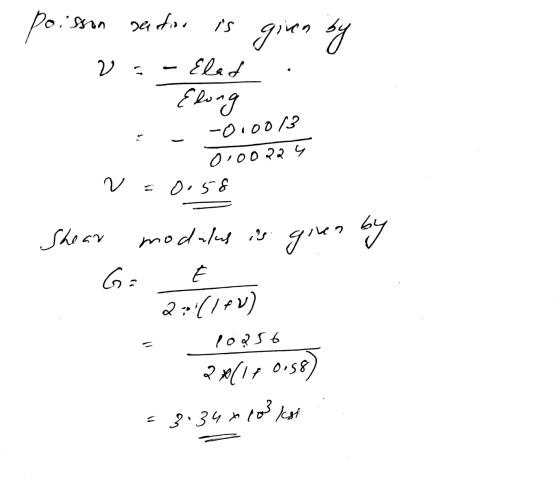

Problem 1 The elastic portion of the stress-strain diagram of the tested material is given below....
Problem 3 σ(ksi) The elastic portion of the tension stress-strain diagram for an aluminum alloy is shown in the figure. The specimen used for the test has a gage length of 2 in. and a diameter of 0.5 in. If the applied load is 10 kip, determine the new diameter of the specimen. The shear modulus is G-3.8(10') ksi. 60
Strength of materials please fast
Problem 3.28 Part A The elastic portion of the stress-strain diagram for an aluminum alloy is shown in the figure below Figure 1). The specimen from which it was obtained has an original diameter of 12.7 mm and a gage length of 50.3 mm. Take -0.35 If a load of P 60 kN is applied to the specimen, determine its new diameter Express your answer to four significant figures and include appropriate units |d- 1...
The stress–strain diagram for a steel alloy having an original
diameter of 0.5 in. and a gauge length of 2 in. is given in the
figure. If the specimen is loaded until it is stressed to 90 ksi,
determine the approximate amount of elastic recovery and the
increase in the gauge length after it is unloaded. Determine also
approximately the modulus of resilience and the modulus of
toughness for the material.
in. /in.) 0 0 - 0.05 0.10 0.15 0.20...
1. Draw a schematic stress-strain diagram for steel. Make sure you mark all the important points and regions on it. Provide a one-two sentence explanation for each point and region along the diagram. 2. A cylindrical specimen of a nickel alloy having an elastic modulus of 207 GPa (30 x 10* psi) and an original diameter of 10.2 mm (0.40 In.) will experience only elastic deformation when a tensile load of 8900 N (2000 Ibe) is applied. Compute the maximum length...
Figure (a) shows the stress strain relations for two different materials, A and B. Between A and B, which one has higher strength? stress B strain Figure (a) O A. Material A OB. Material B Figure (a) shows the stress strain relations for two different materials, A and B. Figure (b) is a schematic of the catastrophic failure of a Liberty ship. Between A and B. which material could have been used in construction of the ship and caused this...
Question 1: The stress-strain diagram for a material is shown in figure. Find the following properties of the material. (a) Yield load if the diameter of specimen at yielding is 13mm. (b) Modulus of resilience (c) Elastic Strain Stress (MPa) CS Scanned with CamScanner 0.001 0.003 Strain
5. EVALUATION I. Create a stress-strain diagram for the measured values in table 1 and identify the mechanical properties of the material. (4 marks) II. Identify the following and label them in the graph. (12 marks) • Young's modulus Yield strength Elongation Ultimate tensile strength THEORETICAL BACKGROUND Equations: Cross-sectional Area (A) Modulus of Elasticity (E) Tensile Strength (ST) Percent Elongation (%EL) d? E = Sy Ey Sr Pu А %EL Extension at fracture Gauge Length Where: A: Cross- Sectional Area...
Question #3: The stress-strain diagram for a steel alloy having an original diameter of 0.45 in. and a gage length of 2.5 in. is given in the Fig. If the specimen is loaded until it is stressed to 75 ksi, determine the modulus of elasticity for the material, amount of elastic recovery, the increase in the gage length, and modulus of resilience (ur) before and after the load application. σ (ksi) 80 70 60 50 40 30 20 10 e...
A tensile test is performed on a linear elastic material using a cylindrical bar of diameter 5 mm and gauge length 55 mm. An axial tensile force of 960 N is applied to the test specimen and a corresponding extension of 0.56 mm is recorded by the extensometer. Assuming that the Poisson's ratio is 0.3, calculate the modulus of rigidity (also known as the shear modulus), G, for this material. Enter your value in units of GPa to one decimal...
Strength of material
The stress-strain diagram for an aluminum alloy specimen having an original diameter of 0.5 in. and a gage length of 2 in, is shown in the figure below. σ (ksi) 70 60 50 40 30 20 10 0 e (in./in.) 0 0.02 0.04 0.06 0.08 0.10 0.12 0.14 0.16 0.18 0.2 0 00025 0.0050.0075 0.01 0.0125001500175 0.02 00255 0.025 Tap image to zoom Part A Determine the modulus of resilience. Express your answer to three significant figures....
