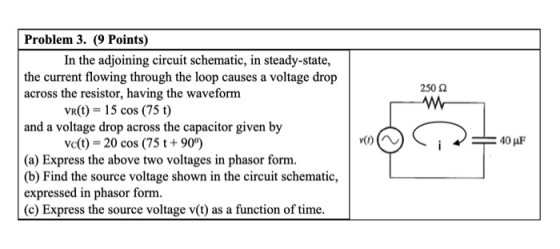

250 22 Problem 3. (9 Points) In the adjoining circuit schematic, in steady-state, the current flowing through the loop causes
0 0
Add a comment Improve this question Transcribed image text
Answer #1

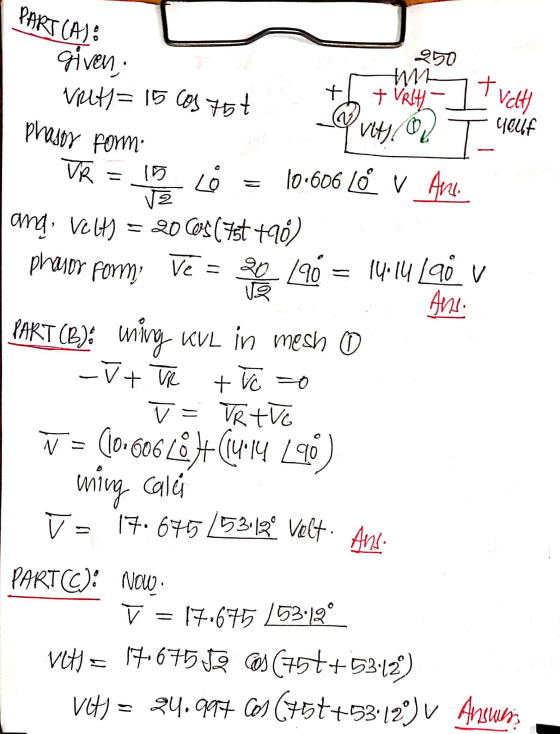

PART (A): given Vrit/= 15 cos 75t 950 tinh + VRIHL t velty + phasor form Lovat. Op vity. T cellf 15 L - phasor form + v VR 10

Add a comment
Know the answer?
Add Answer to:
250 22 Problem 3. (9 Points) In the adjoining circuit schematic, in steady-state, the current flowing...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
  • 2502 In the adjoining circuit schematic, in steady-state, the current flowing through the loop causes a...

    2502 In the adjoining circuit schematic, in steady-state, the current flowing through the loop causes a voltage drop across the resistor, having the waveform vr(t) = 15 cos (75 t) and a voltage drop across the capacitor given by ve(t) = 20 cos (75 t +90°) (a) Express the above two voltages in phasor form. (b) Find the source voltage shown in the circuit schematic, expressed in phasor form. (c) Express the source voltage v(t) as a function of time....

  • In the adjoining circuit schematic, in steady-state, the current flowing through the loop causes a voltage...

    In the adjoining circuit schematic, in steady-state, the current flowing through the loop causes a voltage drop across the resistor, having the waveform vR(t) = 15 cos (75 t) and a voltage drop across the capacitor given by vC(t) = 20 cos (75 t + 90⁰) (a) Express the above two voltages in phasor form. (b) Find the source voltage shown in the circuit schematic, expressed in phasor form. (c) Express the source voltage v(t) as a function of time....

  • In the adjoining circuit schematic, the capacitor has a capacitance C = 100 uF, and is...

    In the adjoining circuit schematic, the capacitor has a capacitance C = 100 uF, and is uncharged initially (at t = 0). The current source i(t) delivers a square pulse of current as shown in the figure, with its time dependence described algebraically as: 0 mAmp for t <1 sec. i(t)={ 1 mAmp for 1 sec. <t<2 sec. 10 mAmp for t > 2 sec. Determine the following: (a) The voltage v(t) across the capacitor, expressed both algebraically and plotted...

  • 8–31 A voltage vs(t) = 50 cos (5000t) V is applied to the circuit in Figure...

    8–31 A voltage vs(t) = 50 cos (5000t) V is applied to the circuit in Figure P8–31. (a) Convert the circuit into the phasor domain. (b) Find the phasor current flowing through the circuit and the phasor voltages across the inductor and the resistor. (c) Plot all three phasors from (b) on a phasor diagram. Describe if the current leads or lags the inductor voltage. i(t) 50 22 25 mH 00 + VL(t) - + Vr(t)- vs(t) (+) FIGURE P8-31

  • Learning Goal: To understand the dynamics ofaseries R-C circuit.Consider a series circuit containing a...

    Learning Goal: To understand the dynamics of aseries R-C circuit.Consider a series circuit containing a resistor of resistance R anda capacitor of capacitance C connected to a source ofEMF ε with negligible internal resistance. The wiresare also assumed to have zero resistance. Initially, the switch isopen and the capacitor discharged.Let us try to understand the processes that take place afterthe switch is closed. The charge of the capacitor, the current inthe circuit, and, correspondingly, the voltages across the resistorand the...

  • Learning Goal: To understand the dynamics of a series R-C circuit. Consider a series circuit containing...

    Learning Goal: To understand the dynamics of a series R-C circuit. Consider a series circuit containing a resistor of resistance R and a capacitor of capacitance C connected to a source of EMF ε with negligible internal resistance. The wires are also assumed to have zero resistance. Initially, the switch is open and the capacitor discharged. (Figure 1)Let us try to understand the processes that take place after the switch is closed. The charge of the capacitor, the current in...

  • Rs=50 Wh. Problem 2. (8 Points) In the adjoining circuit, the switch, which had been closed...

    Rs=50 Wh. Problem 2. (8 Points) In the adjoining circuit, the switch, which had been closed for a sufficiently long time for steady state to be reached, is opened at time t = 0. Determine the following, as a function of time: (a) The current il(t) through the inductor, and (b) The voltage vr(t) across the 1k2 resistor. Vs fico) R. i kny (1) 20 V 1 H 3

  • To understand the dynamics of a seriesR-C circuit.Consider a series circuitcontaining a resistor...

    To understand the dynamics of a series R-C circuit.Consider a series circuit containing a resistor of resistance R and a capacitor of capacitance Cconnected to a source of EMF E with negligible internal resistance. The wires are also assumed to have zero resistance. Initially, the switch is open and the capacitor discharged. (Figure 1)Let us try to understand the processes that take place after the switch is closed. The charge of the capacitor, the current in the circuit, and, correspondingly,...

  • I. For the circuit in Fig. 5, use steady-state analysis to 5003 250 23 125cos(12,5001) mA...

    I. For the circuit in Fig. 5, use steady-state analysis to 5003 250 23 125cos(12,5001) mA 800 nF .CO 40 mHg Fig. 5 1. Determine the total voltage of the circuit 2. Determine the steady-state expressions for the voltage across the capacitor, ve(t), and the current through the inductor, it). 3. Find expressions for the Complex Power delivered by the source, and the Complex Power in the each branch of the circuit 4. Show the complete derivation of the solutions...

  • 1. Using circuit 3-1, calculate the total current (which is also the capacitor current and resistor...

    1. Using circuit 3-1, calculate the total current (which is also the capacitor current and resistor current) by using Ohm’s Law. To do this, you must first compute the total impedance of the circuit, in polar form. Also, remember that Vs (source voltage) phase shift is 0 degrees. Write your answer in polar form. 2. Compute the voltage across the capacitor (C1), using Ohm’s Law and your result from #1. Write your answer in polar form. 3. In a series...
