Assume the following information (figures are in thousands): Budgeted Costs for Samp
- Assume the following information (figures are in thousands):
Budgeted Costs for Sample Project
|
Duration (in weeks) |
||||||||||
|
5 |
10 |
15 |
20 |
25 |
30 |
35 |
40 |
45 |
Total |
|
|
Design |
4 |
4 |
2 |
|||||||
|
Engineer |
3 |
6 |
12 |
8 |
||||||
|
Install |
4 |
12 |
24 |
6 |
||||||
|
Test |
2 |
6 |
6 |
4 |
2 |
|||||
|
Total Monthly Cumul. |
||||||||||
a. Calculate the monthly budget and the monthly cumulative budgets for the project.
b. Draw a project S-curve identifying the relationship between the project’s budget baseline and its schedule.
Homework Answers
a)

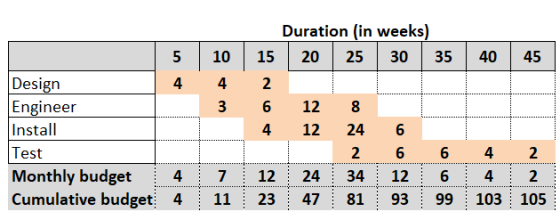

Monthly budget and the monthly cumulative budget is tabulated below:
-------------------------------------------------------------
b)

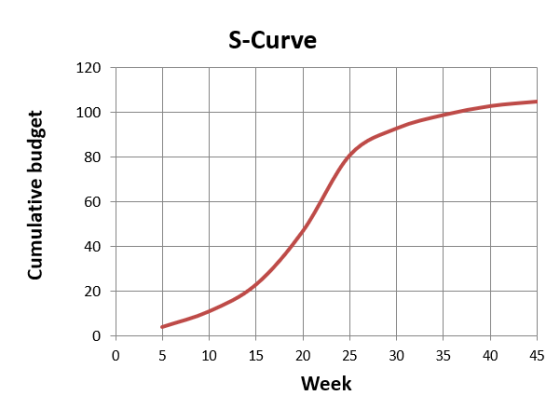

Project S-curve is following:
