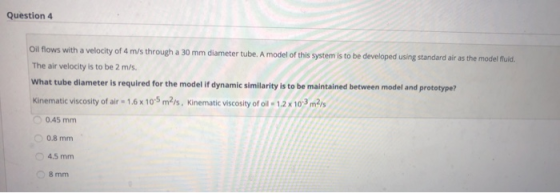

Question 4 Oil flows with a velocity of 4 m/s through a 30 mm diameter tube....
Oil flows with a velocity of 4 m/s through a 30 mm diameter tube. A model...

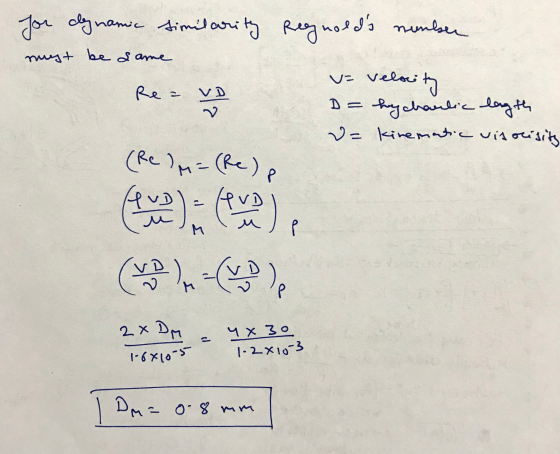

Oil flows with a velocity of 4 m/s through a 30 mm diameter tube. A model of this system is to be developed using standard air as the model fluid The air velocity is to be 2 m/s What tube diameter is required for the model if dynamic similarity is to be maintained between model and prototype? Kinematic viscosity of air = 1.6 x 10-5 m2/s, Kinematic viscosity of oil = 1.2 x 10-3 m2/s 0.45 mm 0.8 mm 4.5...
