Homework Answers
Add Answer to:
The mechanism given below: 2) Indicate Sudden Turning Centers (Figure is not to scale and according...
The mechanism given below; 1) Find the Degree of Freedom 2) Indicate Sudden Turning Centers (Figure...
The mechanism given below; 1) Find the Degree of Freedom 2) Indicate Sudden Turning Centers (Figure is not to scale and according to the given values) we draw and fix) 3) Is the Mechanism Grashof Mechanism? If it's the Grashof mechanism Please indicate the type together. Ao 3 Veriler: A A-20 mm AC = 65 mm A.B. = 80 mm BB-70 mm BC-40 mm CD-60 mm 9-50 S4=35 Ss=65 istis Во 3
The mechanism given below; 1) Find the Degree of Freedom 2) Indicate Sudden Turning Centers (Figure...

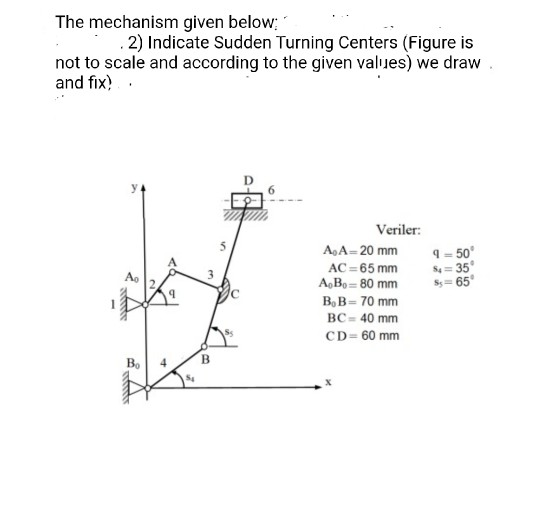

The mechanism given below;
1) Find the Degree of Freedom
2) Indicate Sudden Turning Centers (Figure is not to scale and according to the given values)
will be drawn and fixed)
3) Is the Mechanism Grashof Mechanism? If it's the Grashof mechanism
Please indicate the type together.
D y 6 5 A 0 9 = 50° S4= 35 S5= 65° A. 3 2 C A, A=20 mm AC=65 mm A,B= 80 mm B, B= 70 mm BC= 40 mm CD=...

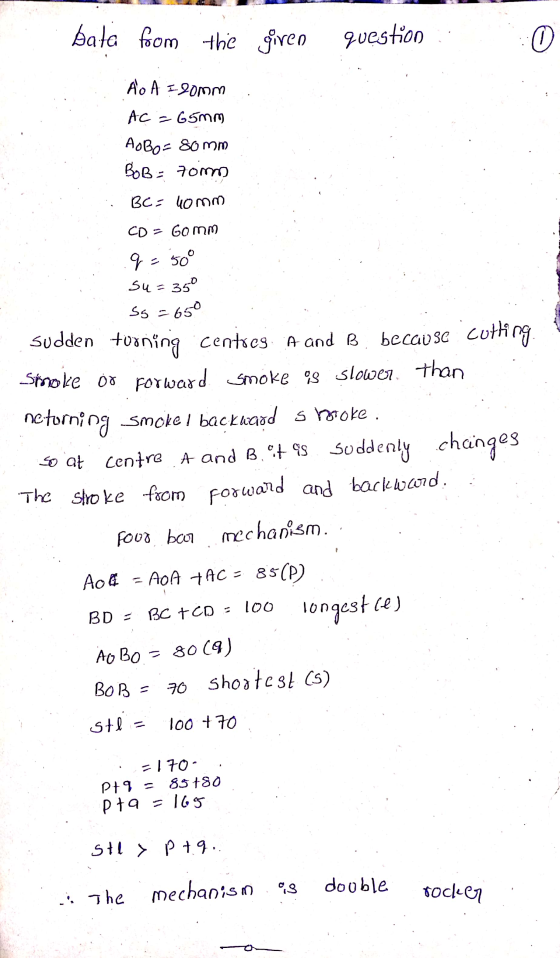

The mechanism given below; 1) Find the Degree of Freedom 2) Indicate Sudden Turning Centers (Figure...
The mechanism given below;
1) Find the Degree of Freedom
2) Indicate Sudden Turning Centers (Figure is not to scale and according to the given values)
will be drawn and fixed)
3) Is the Mechanism Grashof Mechanism? If it's the Grashof mechanism
Please indicate the type together.
D y 6 5 A 0 9 = 50° S4= 35 S5= 65° A. 3 2 C A, A=20 mm AC=65 mm A,B= 80 mm B, B= 70 mm BC= 40 mm CD=...
The mechanism given below; 1) Find the Degree of Freedom 2) Indicate Sudden Turning Centers (Figure...
The mechanism given below; 1) Find the Degree of
Freedom 2) Indicate Sudden Turning Centers (Figure is not to scale
and according to the given values) we draw and fix) 3) Is the
Mechanism Grashof Mechanism? If it's the Grashof mechanism Please
indicate the type together.
Aşağıda verilen mekanizmanın ; 1) Serbestlik Derecesini bulunuz (10P) 2) Ani Dönme Merkezlerini Belirtiniz (Şekil ölçeksiz olup verilen değerlere göre çizip tespit edilecektir) (80P) 3) Mekanizma Grashof Mekanizması mıdır? Eğer Grashof mekanizması ise nedeniyle...
The mechanism shown in the figure below has rigid links pivoted at A, B, C and D. The link BCE is a rigid plate. The d...
The mechanism shown in the figure below has rigid links pivoted at A, B, C and D. The link BCE is a rigid plate. The dimensions of the links are BC = 110 mm BE 70 mm CE 60 mm CD 30 mm AB = 50 mm At the instant when both angles ABC and BCD are 90°, the link AB has a clockwise angular velocity of 40 rad/s. Determine the angular velocity of link BCE A Determine the angular...
Part A Q1: The crank OP of a mechanism as shown in figure below rotates uniformly...
Part A
Q1: The crank OP of a mechanism as shown in figure below rotates uniformly at 60 rpm counter-clockwise. Various links have following dimensions: OP = 50 mm; RQ= 200 mm; RS = 200 mm; PR = 300 mm a) Make appropriate scale to draw position diagram using graphical method. b) Find the linear velocities (mm/sec) and angular velocities (rad/sec) for all links and draw velocity diagram. c) Find the tangential accelerations (mm/sec) and radial acceleration (mm/sec) and angular...
Important Note: • It is required to solve each problem in separate sheet. • You are...
Important Note: • It is required to solve each problem in separate sheet. • You are requested to solve problems 1, 3, and 5 using AutoCAD. Problem (1) In the mechanism shown, link 2 is rotating CW at the constant rate of 4 rad/s. In the position shown, is 53. Determine: vc, 03, 04. Link Lengths: AB = 100 mm, BC = 160 mm, CD = 200 mm 160 mm 220 mm DO Problem (2) In the mechanism shown, link...
Q1: The crank OP of a mechanism as shown in figure below rotates uniformly at 60...
Q1: The crank OP of a mechanism as shown in figure below rotates uniformly at 60 rpm counter-clockwise. Various links have following dimensions: OP - 50 mm; RQ-200 mm; RS - 200 mm; PR = 300 mm a) Make appropriate scale to draw position diagram using graphical method. b) Find the linear velosities (mm/sec) and angular velosities (rad/sec) for all links and draw velocity diagram. c) Find the tangential accelerations (mm/sec) and radial acceleration (mm/sec) and angular accelerations (rad/sec) for...
For the double-slider mechanism shown in the figure below, assume AO2 2 m, AB : 7...
For the double-slider mechanism shown in the figure below, assume AO2 2 m, AB : 7 m, C): 8 m, and D,-240°. Determine the position of point B, using the 10 m, AC 4 m, BC 1. Graphical method: number and label all the steps, possibly use a compass and protractor. (Choose any convenient scale, say 1 cm in your drawing corresponds to 1 m in reality) 2. Analytical method (i.e., use complex-algebra) Hints: Start numbering all links, labeling all...
2. Grain size distribution for three different soils is given on Figure 1. For SOIL 3,...
2. Grain size distribution for three different soils is given on Figure 1. For SOIL 3, answer the following questions: (5 points) a. What is the perentage of gravel, sand, and fines? b. Classify the soil according to the ASTM/USCS (i.e, give both the Group Symbol and Group Name) (1) U.S. Standard sieve size in 3 in 100 No. 4 No. 10 No. 40 No. 200 90 80 70 60 50 40 30 20 10 0 100 10 1.0 0.1...
The mechanism given below; 1) Find the Degree of Freedom 2) Indicate Sudden Turning Centers (Figure is not to scale and according to the given values) we draw and fix) 3) Is the Mechanism Grashof Mechanism? If it's the Grashof mechanism Please indicate the type together. Ao 3 Veriler: A A-20 mm AC = 65 mm A.B. = 80 mm BB-70 mm BC-40 mm CD-60 mm 9-50 S4=35 Ss=65 istis Во 3
The mechanism given below;
1) Find the Degree of Freedom
2) Indicate Sudden Turning Centers (Figure is not to scale and according to the given values)
will be drawn and fixed)
3) Is the Mechanism Grashof Mechanism? If it's the Grashof mechanism
Please indicate the type together.
D y 6 5 A 0 9 = 50° S4= 35 S5= 65° A. 3 2 C A, A=20 mm AC=65 mm A,B= 80 mm B, B= 70 mm BC= 40 mm CD=...
The mechanism given below;
1) Find the Degree of Freedom
2) Indicate Sudden Turning Centers (Figure is not to scale and according to the given values)
will be drawn and fixed)
3) Is the Mechanism Grashof Mechanism? If it's the Grashof mechanism
Please indicate the type together.
D y 6 5 A 0 9 = 50° S4= 35 S5= 65° A. 3 2 C A, A=20 mm AC=65 mm A,B= 80 mm B, B= 70 mm BC= 40 mm CD=...
The mechanism given below; 1) Find the Degree of
Freedom 2) Indicate Sudden Turning Centers (Figure is not to scale
and according to the given values) we draw and fix) 3) Is the
Mechanism Grashof Mechanism? If it's the Grashof mechanism Please
indicate the type together.
Aşağıda verilen mekanizmanın ; 1) Serbestlik Derecesini bulunuz (10P) 2) Ani Dönme Merkezlerini Belirtiniz (Şekil ölçeksiz olup verilen değerlere göre çizip tespit edilecektir) (80P) 3) Mekanizma Grashof Mekanizması mıdır? Eğer Grashof mekanizması ise nedeniyle...
The mechanism shown in the figure below has rigid links pivoted at A, B, C and D. The link BCE is a rigid plate. The dimensions of the links are BC = 110 mm BE 70 mm CE 60 mm CD 30 mm AB = 50 mm At the instant when both angles ABC and BCD are 90°, the link AB has a clockwise angular velocity of 40 rad/s. Determine the angular velocity of link BCE A Determine the angular...
Part A
Q1: The crank OP of a mechanism as shown in figure below rotates uniformly at 60 rpm counter-clockwise. Various links have following dimensions: OP = 50 mm; RQ= 200 mm; RS = 200 mm; PR = 300 mm a) Make appropriate scale to draw position diagram using graphical method. b) Find the linear velocities (mm/sec) and angular velocities (rad/sec) for all links and draw velocity diagram. c) Find the tangential accelerations (mm/sec) and radial acceleration (mm/sec) and angular...
Important Note: • It is required to solve each problem in separate sheet. • You are requested to solve problems 1, 3, and 5 using AutoCAD. Problem (1) In the mechanism shown, link 2 is rotating CW at the constant rate of 4 rad/s. In the position shown, is 53. Determine: vc, 03, 04. Link Lengths: AB = 100 mm, BC = 160 mm, CD = 200 mm 160 mm 220 mm DO Problem (2) In the mechanism shown, link...
Q1: The crank OP of a mechanism as shown in figure below rotates uniformly at 60 rpm counter-clockwise. Various links have following dimensions: OP - 50 mm; RQ-200 mm; RS - 200 mm; PR = 300 mm a) Make appropriate scale to draw position diagram using graphical method. b) Find the linear velosities (mm/sec) and angular velosities (rad/sec) for all links and draw velocity diagram. c) Find the tangential accelerations (mm/sec) and radial acceleration (mm/sec) and angular accelerations (rad/sec) for...
For the double-slider mechanism shown in the figure below, assume AO2 2 m, AB : 7 m, C): 8 m, and D,-240°. Determine the position of point B, using the 10 m, AC 4 m, BC 1. Graphical method: number and label all the steps, possibly use a compass and protractor. (Choose any convenient scale, say 1 cm in your drawing corresponds to 1 m in reality) 2. Analytical method (i.e., use complex-algebra) Hints: Start numbering all links, labeling all...
2. Grain size distribution for three different soils is given on Figure 1. For SOIL 3, answer the following questions: (5 points) a. What is the perentage of gravel, sand, and fines? b. Classify the soil according to the ASTM/USCS (i.e, give both the Group Symbol and Group Name) (1) U.S. Standard sieve size in 3 in 100 No. 4 No. 10 No. 40 No. 200 90 80 70 60 50 40 30 20 10 0 100 10 1.0 0.1...
