The mechanism given below;
1) Find the Degree of Freedom
2) Indicate Sudden Turning Centers (Figure is not to scale and according to the given values)
will be drawn and fixed)
3) Is the Mechanism Grashof Mechanism? If it's the Grashof mechanism
Please indicate the type together.

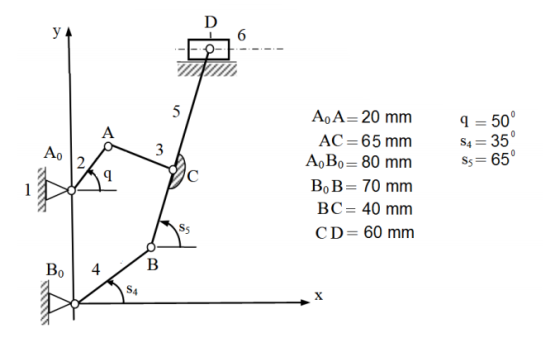

D y 6 5 A 0 9 = 50° S4= 35 S5= 65° A. 3 2 C A, A=20 mm AC=65 mm A,B= 80 mm B, B= 70 mm BC= 40 mm CD= 60 mm 1 SS Во 4 B S4 X
