Question

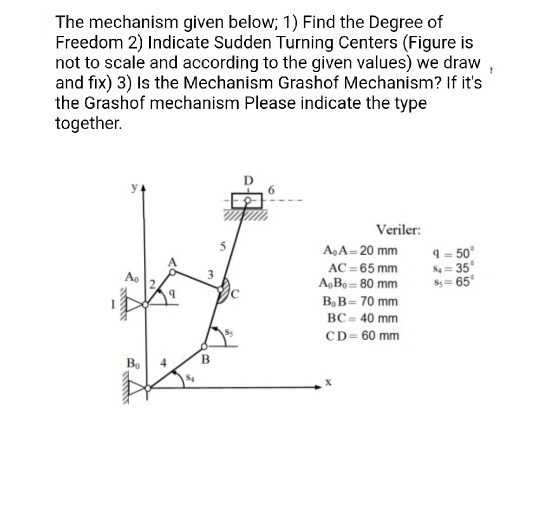

The mechanism given below; 1) Find the Degree of Freedom 2) Indicate Sudden Turning Centers (Figure is not to scale and according to the given values) we draw and fix) 3) Is the Mechanism Grashof Mechanism? If it's the Grashof mechanism Please indicate the type together. Ao 3 Veriler: A A-20 mm AC = 65 mm A.B. = 80 mm BB-70 mm BC-40 mm CD-60 mm 9-50 S4=35 Ss=65 istis Во 3

Answer 1

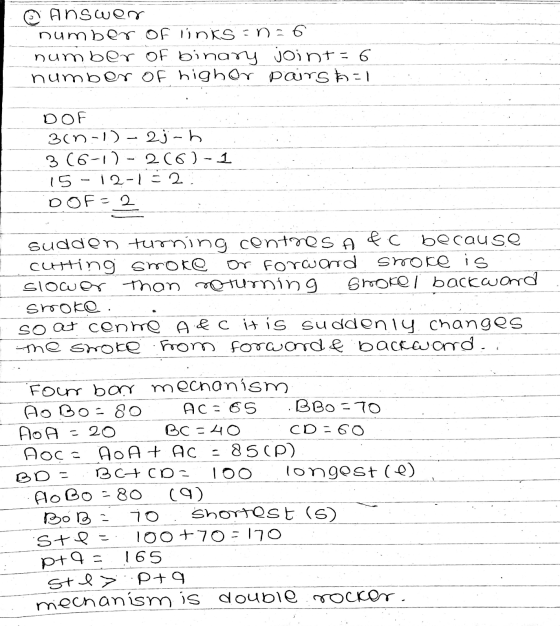

Answer number of linis no6 number of binary joint = 6 number of higher pairshal DOF 300-1) - 2j-b 3 (6-1) - 206) - 1. 15-12-12 DoFo 2 sudden turning centres Aec because Cutting smoke Or forward shore is slower than noturning ShoKQ/ backward smoke. so at cenme ABC it is suddenly changes The smoke From forwonde backwarrd. For bony mechanism ecne Ao Bo= 80 AC:65 BBO -70 FOA = 20 BC = 40 CD=60 AOC HOAT AC - 85 (P) BD = BCHCD= TOO longost (e) FOBO-80 (9) BoBo 70 Shortest (5) ste= 100+70-170 p+a 165 stepta mechanism is double rockor.
