Reinforced Concrete

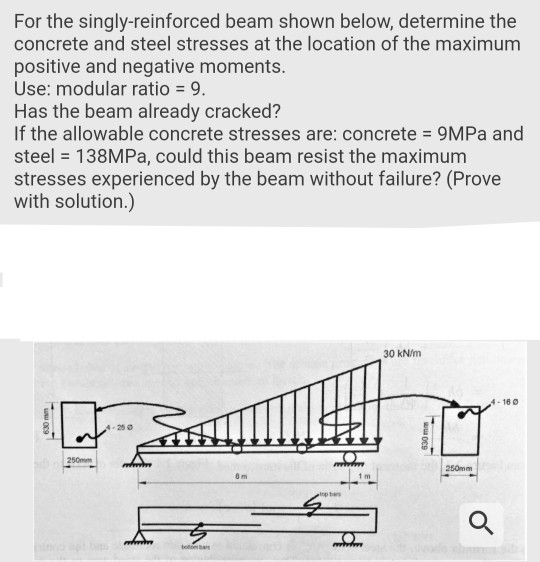

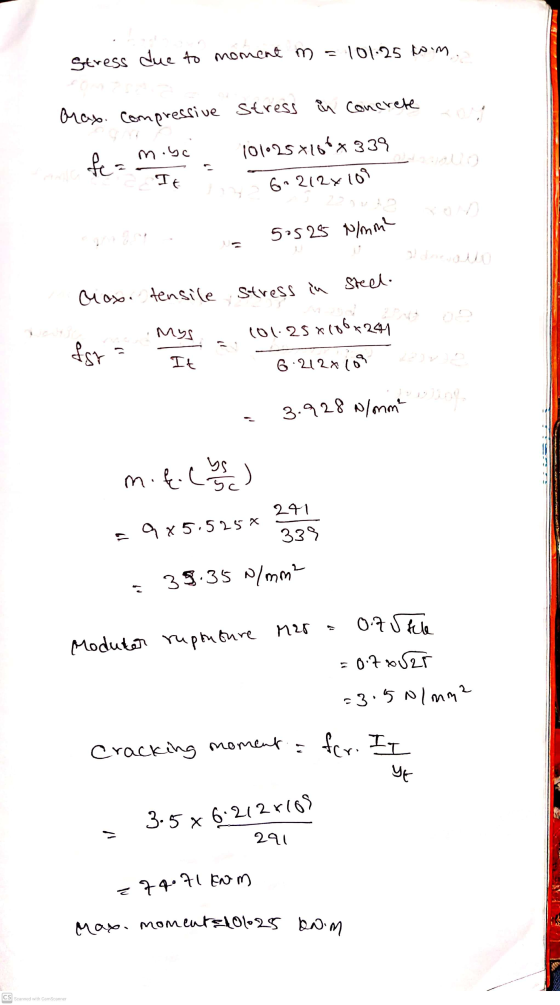

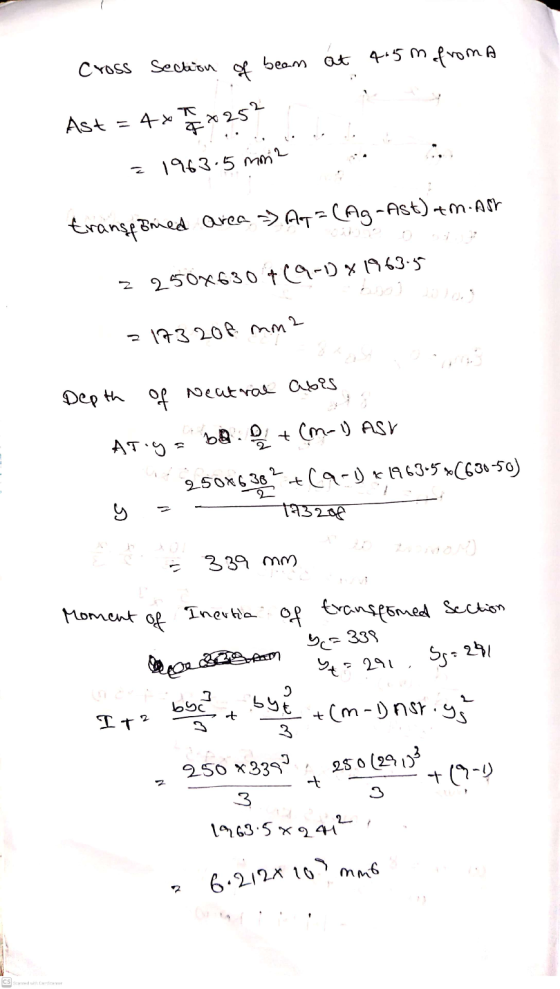

For the singly-reinforced beam shown below, determine the concrete and steel stresses at the...
131 The concrete beam is reinforced with three 20-mm- diameter steel rods. Assume that the concrete...
131 The concrete beam is reinforced with three 20-mm- diameter steel rods. Assume that the concrete cannot support tensile stress. If the allowable compressive stress for concrete is (allown2.5 MPa and the allowable tensile stress for steel is (?allow)st-220 MPa, determine the required dimension d so that both the concrete and steel achieve their allowable stress simultaneously. This condition is said to be 'balanced'. Also, compute the corresponding maximum allowable internal moment M that can be applied to the beam....
2. A rectangular beam, 400 x 600 mm gross dimension, is cast using a concrete strength...
2. A rectangular beam, 400 x 600 mm gross dimension, is cast using a concrete strength of fc 30 MPa, reinforced with 5-25 mm diameter steel bar at the effective depth of 500 mm. If is subjected to a moment, M 130 kN-m. Determine the following: Magnitude of the bending moment that cracks the singly-reinforced beam section. (10 pts) b. For the computed cracking moment, determine the maximum compressive stress in the concrete and the stress in the tension steel....
Problem 2 A reinforced concrete beam (see fig.) is acted on by a positive bending moment...
Problem 2 A reinforced concrete beam (see fig.) is acted on by a positive bending moment of M - 160 kNm. Steel reinforcement consists of 4 bars of 28-mm diameter. The modulus of elasticity for the concrete is E = 25 GPa while that of the steel is E, = 200 GPa. (a) Find the maximum stresses in steel and concrete. (b) If allowable stresses for concrete and steel are = 9.2 MPa and 0 -135 MPa, respectively, what is...
03(a) A reinforced concrete beam is acted on by a positive bending moment. reinforcement consists of 4 bars of 28 mm diameter. The modulus of elasticity is E 25 GPa for the concrete and E-200 G...
03(a) A reinforced concrete beam is acted on by a positive bending moment. reinforcement consists of 4 bars of 28 mm diameter. The modulus of elasticity is E 25 GPa for the concrete and E-200 GPa for the steel. The allowable stresses for the concrete and steel are ơ.-9.2 MPa and ơ.-135 MPa, respectively. Determine the maximum permissible positive bending moment. (10 marks) 625 mm 4 bars 28 mm -300 mm Figure Q3(a) 03(b) A simply supported beam that is...
A wood beam (1) is reinforced on its lower surface by a steel plate (2) as...
A wood beam (1) is reinforced on its lower surface by a steel
plate (2) as shown in the figure. Dimensions of the cross section
are b 1 = 220 mm , d = 385 mm , b 2 = 190 mm , and t = 25 mm . The
elastic moduli of the wood and steel are E 1 = 12.5 GPa and E 2 =
200 GPa , respectively. The allowable bending stresses of the wood
and steel...
10. A beam cross-section is limited to the size shown below. Determine the required area of...
10. A beam cross-section is limited to the size shown below. Determine the required area of reinforcement for service load moments Mp-430 ft-kip and M 175 ft-ki ksi. Note that the beam self weight is already included in the dead load moment. Assume that c 0.6c for the singly-reinforced part of the section (for your initial guess). Hint: first calculate the nominal moment resisted by the concrete section without compression steel. Check the strength only p.f -4,000 psi and f,-60...
A reinforced concrete cantilevered beam with a span of 5 m extends from the wall, as shown in the...
A reinforced concrete cantilevered beam with a span of 5 m extends from the wall, as shown in the figure below. The beam has a rectangular cross-section and supports a uniform dead load (DL) of 15 kN/m (excluding the self-weight) and a uniform live load (LL) of 25 kN/m. The beam width is restricted to 400 mm. Use 10M stirrups and 25M bars for tension steel. The maximum aggregate size is 20 mm. 1ie 5.5. beam is located in the...
Two beams are shown below. The first is singly reinforced with 3-#8, the second is doubly...
Two beams are shown below. The first is singly reinforced with
3-#8, the second is doubly reinforced by adding 2-#7 both top and
bottom. The concrete compressive strength, f’c = 3000 psi and the
steel is grade 60.
For the doubly reinforced beam, what is the location of the
neutral axis, c, measured from the top of the beam?
3.9 in.
5.6 in.
5.0 in.
4.4 in.
14 2 -2-t17 1G 2 2-17
A concrete beam is strengthened using two steel plates as shown in the cross section of...
A concrete beam is strengthened using two steel plates as shown in the cross section of the member. The beam has simple supports and an overhang and is subjected to a uniform load as shown. Assume that Ec=25 GPa and Es=200 GPa. 1. Determine the maximum moment carried in the member. 2. Determine the modular ratio, n. 3. Determine the centroid of the transformed section 4. Determine the maximums stresses in the concrete and the steel. 2 kN/m A- B...
simply supported reinforced concrete beam of rectangular section is hung on the left end by a 400mm square post working in tension, as shown in the figure below. The beam supports a uniform dead l...
simply supported reinforced concrete beam of rectangular section is hung on the left end by a 400mm square post working in tension, as shown in the figure below. The beam supports a uniform dead load (DL) gf 100 KN/m (excluding its own weight) and upiform live load LL) of 40KN/m. The beam is reinforced with 025 longitudinal rebars with 40mm cleat cover to the stirrups. Material properties: fy 420 MPa, fe 25 MPa. Beam dimension b 400mm and h 600mm....
131 The concrete beam is reinforced with three 20-mm- diameter steel rods. Assume that the concrete cannot support tensile stress. If the allowable compressive stress for concrete is (allown2.5 MPa and the allowable tensile stress for steel is (?allow)st-220 MPa, determine the required dimension d so that both the concrete and steel achieve their allowable stress simultaneously. This condition is said to be 'balanced'. Also, compute the corresponding maximum allowable internal moment M that can be applied to the beam....
2. A rectangular beam, 400 x 600 mm gross dimension, is cast using a concrete strength of fc 30 MPa, reinforced with 5-25 mm diameter steel bar at the effective depth of 500 mm. If is subjected to a moment, M 130 kN-m. Determine the following: Magnitude of the bending moment that cracks the singly-reinforced beam section. (10 pts) b. For the computed cracking moment, determine the maximum compressive stress in the concrete and the stress in the tension steel....
Problem 2 A reinforced concrete beam (see fig.) is acted on by a positive bending moment of M - 160 kNm. Steel reinforcement consists of 4 bars of 28-mm diameter. The modulus of elasticity for the concrete is E = 25 GPa while that of the steel is E, = 200 GPa. (a) Find the maximum stresses in steel and concrete. (b) If allowable stresses for concrete and steel are = 9.2 MPa and 0 -135 MPa, respectively, what is...
03(a) A reinforced concrete beam is acted on by a positive bending moment. reinforcement consists of 4 bars of 28 mm diameter. The modulus of elasticity is E 25 GPa for the concrete and E-200 GPa for the steel. The allowable stresses for the concrete and steel are ơ.-9.2 MPa and ơ.-135 MPa, respectively. Determine the maximum permissible positive bending moment. (10 marks) 625 mm 4 bars 28 mm -300 mm Figure Q3(a) 03(b) A simply supported beam that is...
A wood beam (1) is reinforced on its lower surface by a steel
plate (2) as shown in the figure. Dimensions of the cross section
are b 1 = 220 mm , d = 385 mm , b 2 = 190 mm , and t = 25 mm . The
elastic moduli of the wood and steel are E 1 = 12.5 GPa and E 2 =
200 GPa , respectively. The allowable bending stresses of the wood
and steel...
10. A beam cross-section is limited to the size shown below. Determine the required area of reinforcement for service load moments Mp-430 ft-kip and M 175 ft-ki ksi. Note that the beam self weight is already included in the dead load moment. Assume that c 0.6c for the singly-reinforced part of the section (for your initial guess). Hint: first calculate the nominal moment resisted by the concrete section without compression steel. Check the strength only p.f -4,000 psi and f,-60...
A reinforced concrete cantilevered beam with a span of 5 m extends from the wall, as shown in the figure below. The beam has a rectangular cross-section and supports a uniform dead load (DL) of 15 kN/m (excluding the self-weight) and a uniform live load (LL) of 25 kN/m. The beam width is restricted to 400 mm. Use 10M stirrups and 25M bars for tension steel. The maximum aggregate size is 20 mm. 1ie 5.5. beam is located in the...
Two beams are shown below. The first is singly reinforced with
3-#8, the second is doubly reinforced by adding 2-#7 both top and
bottom. The concrete compressive strength, f’c = 3000 psi and the
steel is grade 60.
For the doubly reinforced beam, what is the location of the
neutral axis, c, measured from the top of the beam?
3.9 in.
5.6 in.
5.0 in.
4.4 in.
14 2 -2-t17 1G 2 2-17
A concrete beam is strengthened using two steel plates as shown in the cross section of the member. The beam has simple supports and an overhang and is subjected to a uniform load as shown. Assume that Ec=25 GPa and Es=200 GPa. 1. Determine the maximum moment carried in the member. 2. Determine the modular ratio, n. 3. Determine the centroid of the transformed section 4. Determine the maximums stresses in the concrete and the steel. 2 kN/m A- B...
simply supported reinforced concrete beam of rectangular section is hung on the left end by a 400mm square post working in tension, as shown in the figure below. The beam supports a uniform dead load (DL) gf 100 KN/m (excluding its own weight) and upiform live load LL) of 40KN/m. The beam is reinforced with 025 longitudinal rebars with 40mm cleat cover to the stirrups. Material properties: fy 420 MPa, fe 25 MPa. Beam dimension b 400mm and h 600mm....
