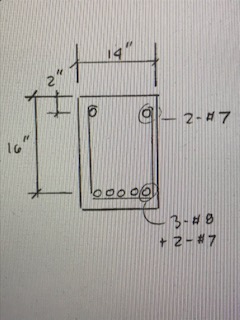

Two beams are shown below. The first is singly reinforced with 3-#8, the second is doubly reinforced by adding 2-#7 both top and bottom. The concrete compressive strength, f’c = 3000 psi and the steel is grade 60.
For the doubly reinforced beam, what is the location of the neutral axis, c, measured from the top of the beam?
|
3.9 in. |
||
|
5.6 in. |
||
|
5.0 in. |
||
|
4.4 in. |
Homework Answers

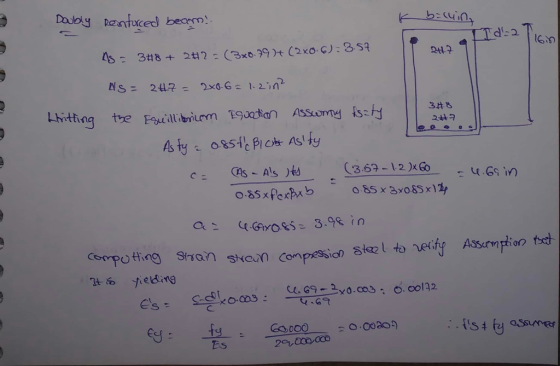

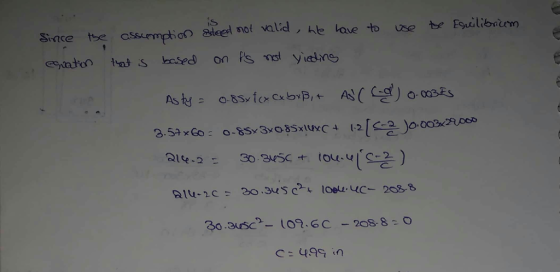

answer is 5in
