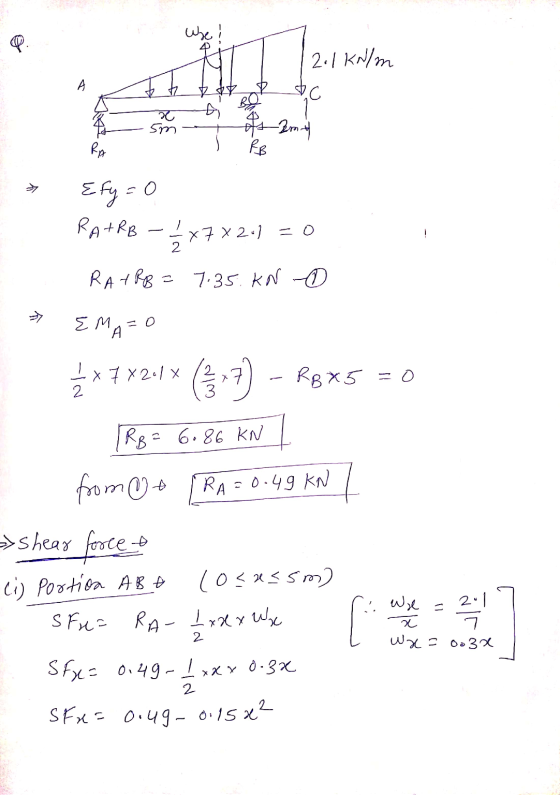

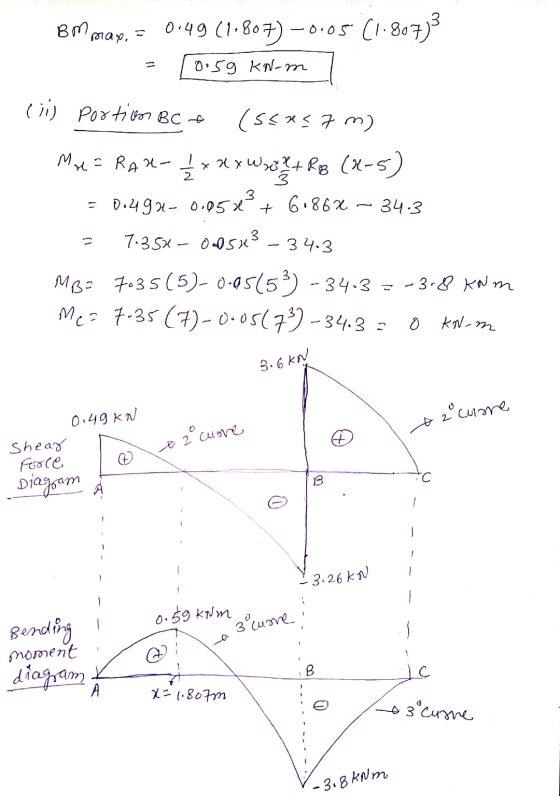

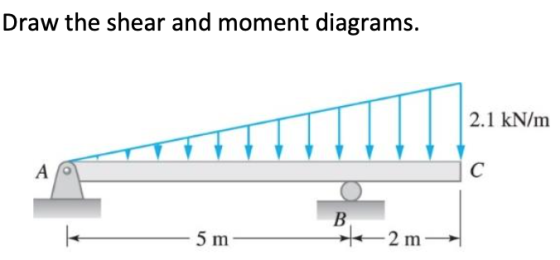

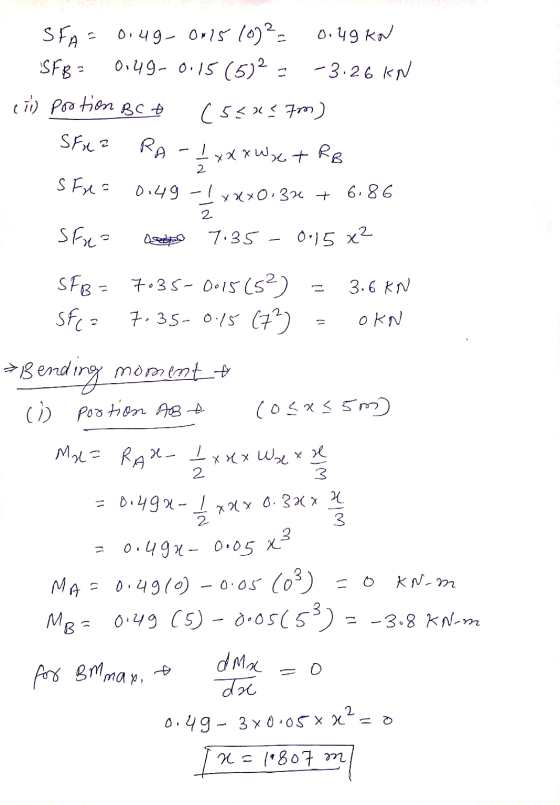

5. Draw the shear and moment diagrams for each member of the frame 6 kN/m B 1.5 m 12 KN 1.5 m
Draw the shear and moment diagrams. 20 kN/m 80 kN/m A D B C I 3 m 1 m 1 m
Draw shear force and moment diagrams
W1 2 | P = 15 kN Given: c = 1.75 m d = 5.00 m a 1.25 m b 2.00 m W1 4 kN/m w2 5 kN/m
Draw the shear and moment diagrams. 4 kN/m А E B ip 2 m 3 m 1 m 2 m 15 kN 10 kN
Draw the shear and moment diagrams. 6 kN 6 kN/m B -3 m -1.5 m 1.5 m
Draw the shear force and bending moment diagrams for the beams
shown
5 kN 3 kN/m 3 m 1.5 m1.5mFig. 4 3 m
Draw the shear and bending moment diagrams
10 kN 8 kN 15 kN m 3 m
4. Draw the shear and moment diagrams for the compound beam. ((Lec/Tute a half) 5 kN/m ID ІВ 2 m 1 m
2 kN Draw the shear-force and bending-moment diagrams for the beam loaded by the 2-kN force and the 1.6 kN-m couple. State the value of the bending moment at point B. HW22-2 1.6 kN.m 0.5m 0.5 m 0.5 m
Draw the shear and moment diagrams for the structure.
20 KN w=25kN/m 2 m to A В с 4 m 2 m 4 m 4 m
