Draw the shear and moment diagrams for the structure. 20 KN w=25kN/m 2 m to A...

Question

Question

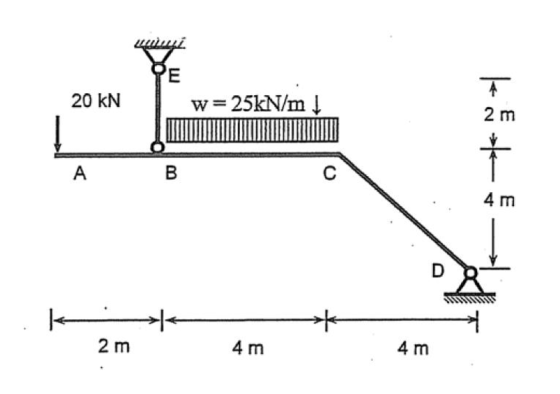

Draw the shear and moment diagrams for the structure.

20 KN w=25kN/m 2 m to A В с 4 m 2 m 4 m 4 m

engineering Mechanical-Engineering

Answer 1

Answer #1

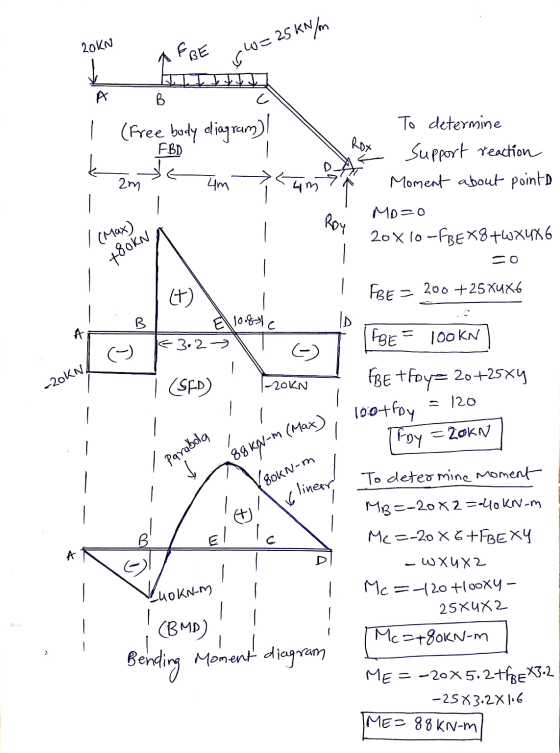

20KN W=25KN/ B FBD) Rot am 88 kg-m (Max), lootfoy FBE 1 (Free body diagram)! To determine Support reaction ge um Moment about A thumbs up, pls !!
