A beam of laser light with a wavelength of 1 = 560.00 nm passes through a...

Question

Question

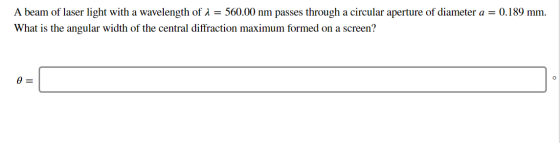

A beam of laser light with a wavelength of 1 = 560.00 nm passes through a circular aperture of diameter a = 0.189 mm. What is

science physics

Answer 1

Answer #1

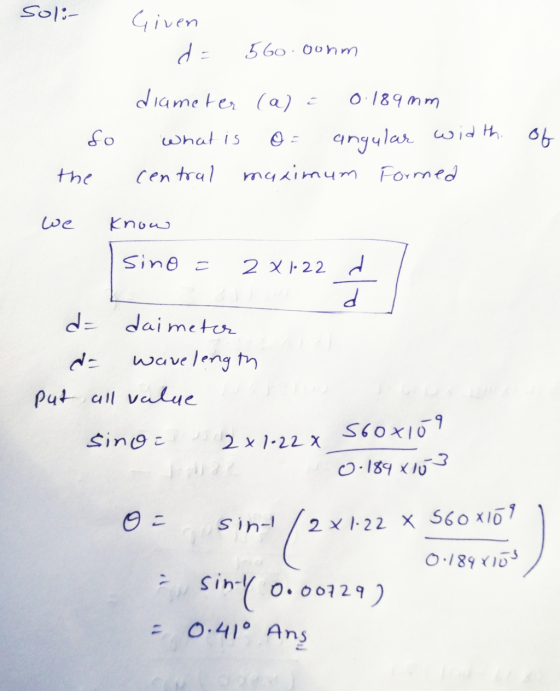

soli Given d = 56o . oohm fo diameter (a) e 0.189 mm what is angular width. central maximum Formed of the we Know 2 Sino = 2

> Clearly shown, and works with all versions of this question. Thank you.

Brandon Brahler Mon, Dec 13, 2021 5:03 PM
