Light from a helium-neon laser (λ=633nm) passes through a circular aperture and is observed on a...

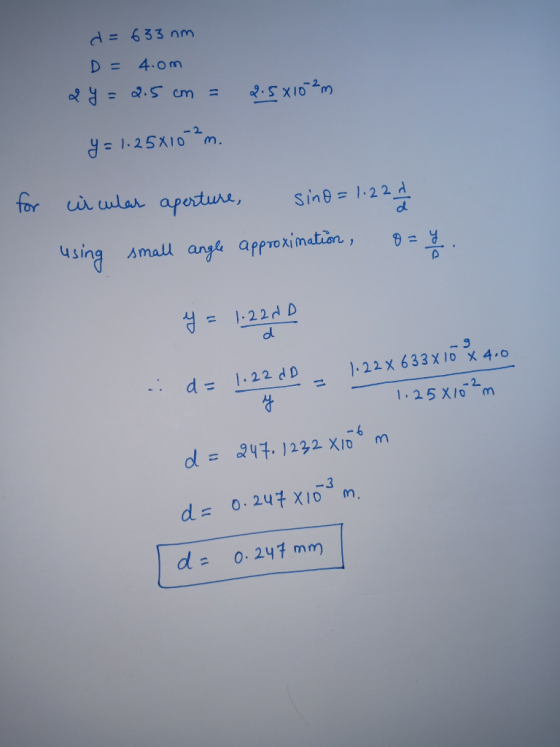

Light from a helium-neon laser (λ=633nm) passes through a circular aperture and is observed on a screen 4.0 m behind the aperture. The width of the central maximum is 2.5 cm .What is the diameter (in mm) of the hole?
Homework Answers
Add Answer to:
Light from a helium-neon laser (λ=633nm) passes through a
circular aperture and is observed on a...
Light from a helium-neon laser passes (λ = 633nm) through a circular aperture and is observed...
Light from a helium-neon laser passes (λ = 633nm) through a circular aperture and is observed on a screen 5.60 m behind the aperture. The width of the central maximum is 1.20 cm. What is the diameter (in mm) of the hole?
Light from a He-Ne laser of wavelength 633 nm passes through a circular aperture. It is...
Light from a He-Ne laser of wavelength 633 nm passes through a circular aperture. It is observed on a screen 4.0 m behind the aperture. The width of the central maximum is 1.1 cm. What is the diameter of the hole? a. 3.2×104 μm b. 560 μm c. 4700 μm d. 9.8 μm
A beam of laser light with a wavelenth of λ = 675.00 nm passes through a...
A beam of laser light with a wavelenth of λ = 675.00 nm passes through a circular aperture of diameter a = 0.159 mm. What is the angular width of the central diffraction maximum formed on a screen?
A beam of laser light with a wavelength of ?=475.00 nm passes through a circular aperture...
A beam of laser light with a wavelength of ?=475.00 nm passes through a circular aperture of diameter ?=0.113 mm . What is the angular width of the central diffraction maximum formed on a screen? ?=
(please answer the three questions below.. My answers are attached in the pic but they aren't...
(please answer the three questions below.. My answers are
attached in the pic but they aren't complete answers!)
PHY: DIFFRACTION AND INTERFERENCE
Pre-Lab:
1) Two narrow slits, 50?m apart are illuminated with 500 nm
ligh. What is the angle of the m =2 bright fringe in
radians? In degrees?
2) Light from a helium-neon laser (? = 633 nm) passes through a
circular aperture and is observed on a screen 4.0 m behind the
aperture. The width of the central...
A helium-neon laser emits light that has a wavelength of 632.8 nm. The circular aperture through...
A helium-neon laser emits light that has a wavelength of 632.8 nm. The circular aperture through which the beam emerges has a diameter of 0.200 cm. Estimate the diameter of the beam 14.0 km from the laser. m
Helium–neon laser light (λ = 632.8 nm) is sent through a 0.250-mm-wide single slit. What is...
Helium–neon laser light (λ = 632.8 nm) is sent through a 0.250-mm-wide single slit. What is the width of the central maximum on a screen 2.00 m from the slit? mm
Red light of wavelength 633 nm from a helium-neon laser passes through a slit 0.405 mm...
Red light of wavelength 633 nm from a helium-neon laser passes through a slit 0.405 mm wide. The diffraction pattern is observed on a screen 3.30 m away. Define the width of a bright fringe as the distance between the minima on either side. (a) What is the width of the central bright fringe? mm (b) What is the width of the first bright fringe on either side of the central one? mm
Red light of wavelength 633 nm from a helium-neon laser passes through a slit 0.390 mm...
Red light of wavelength 633 nm from a helium-neon laser passes through a slit 0.390 mm wide. The diffraction pattern is observed on a screen 3.10 m away. Define the width of a bright fringe as the distance between the minima on either side. What is the width of the central bright fringe?(m) What is the width of the first bright fringe on either side of the central one?
Red light of wavelength 633 nm from a helium-neon laser passes through a slit 0.340 mm...
Red light of wavelength 633 nm from a helium-neon laser passes through a slit 0.340 mm wide. The diffraction pattern is observed on a screen 2.95 m away. Define the width of a bright fringe as the distance between the minima on either side. A) What is the width of the central bright fringe? in m B) What is the width of the first bright fringe on either side of the central one? in m
(please answer the three questions below.. My answers are
attached in the pic but they aren't complete answers!)
PHY: DIFFRACTION AND INTERFERENCE
Pre-Lab:
1) Two narrow slits, 50?m apart are illuminated with 500 nm
ligh. What is the angle of the m =2 bright fringe in
radians? In degrees?
2) Light from a helium-neon laser (? = 633 nm) passes through a
circular aperture and is observed on a screen 4.0 m behind the
aperture. The width of the central...
A helium-neon laser emits light that has a wavelength of 632.8 nm. The circular aperture through which the beam emerges has a diameter of 0.200 cm. Estimate the diameter of the beam 14.0 km from the laser. m
