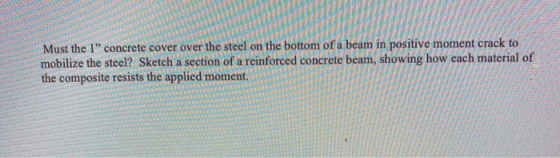

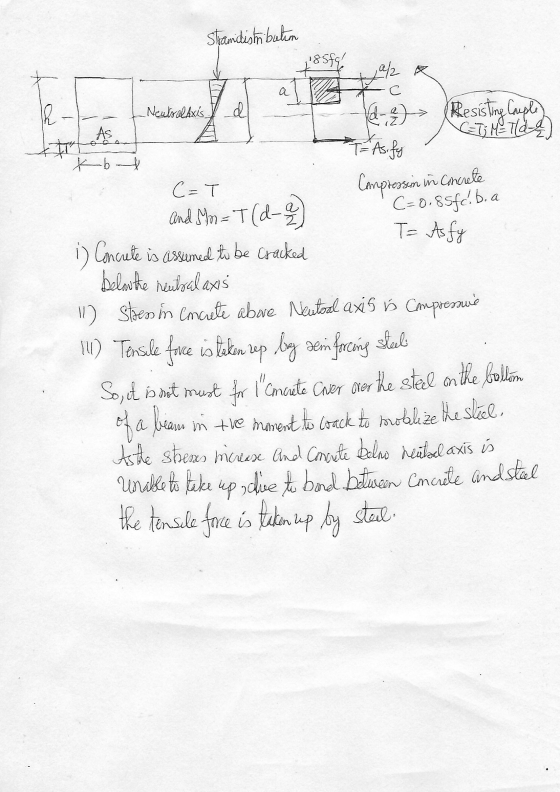

Must the 1" concrete cover over the steel on the bottom of a beam in positive...
Problem 2. A concrete beam is reinforced by three steel rebars placed as shown. The modulus...
Problem 2. A concrete beam is reinforced by three steel rebars placed as shown. The modulus of elasticity is 3x106 psi for concrete and 29x106 psi for steel. Find the tensile stress in rebars and maximum compressive stress in concrete under an external bending moment of (a) 80 kip.in and (b) 240 kip.in. Given the compressive strength of concrete fe' = 3 ksi and yield stress of rebars fy = 60 ksi, discuss the state of crack in concrete and...
A reinforced concrete beam of T-section is cast from N32 concrete. The beam has a flange...
A reinforced concrete beam of T-section is cast from N32
concrete. The beam has a flange width of 805mm, flange thickness
90mm, web width of 300mm and overall depth of 650mm. Two, N32
tensile rods with an effective cover of 46mm are located in web
area, and four, N20 compressive rods with an effective cover of
25mm are located in the flange area. The center-to-center distance
between the compressive rods is 225mm. The bending moment applied
to the section is...
Design a reinforced concrete beam that has a rectangular cross section with a width b =...
Design a reinforced concrete beam that has a rectangular cross section with a width b = 24 in. The depth h is limited by architectural reasons to 16 in. It has to carry a factored moment Mu = 360 kip- ft. including the self-weight. The design should satisfy ACI 318 for tension controlled members. Use Grade 60 steel and a specified concrete compressive strength = 4,000 psi. Determine the flexural reinforcement for the beam, and use compression steel if needed....
I designed and detailed the beam in problem 3 as you see. Redesign the reinforced concrete...
I designed and detailed the beam in problem 3 as you see.
Redesign the reinforced concrete beam of problem 3, If the value of
factored bending moment increased to 1,600 k.ft where the section
needs to be designed as a doubly reinforced beam.
3) Design and detail the reinforced concrete beam shown below if it is subjected to a factored bending moment of 1,100 k.ft f'=4,800psi fx=60 ksi. Include skin steel. 36" 15" 2#6 36 24 kino f's = 4800...
2. A rectangular beam, 400 x 600 mm gross dimension, is cast using a concrete strength...
2. A rectangular beam, 400 x 600 mm gross dimension, is cast using a concrete strength of fc 30 MPa, reinforced with 5-25 mm diameter steel bar at the effective depth of 500 mm. If is subjected to a moment, M 130 kN-m. Determine the following: Magnitude of the bending moment that cracks the singly-reinforced beam section. (10 pts) b. For the computed cracking moment, determine the maximum compressive stress in the concrete and the stress in the tension steel....
FIGURE Q2 shows cross-section of a rectangular doubly reinforced concrete beam. The concrete grade, fck is...
FIGURE Q2 shows cross-section of a rectangular doubly reinforced concrete beam. The concrete grade, fck is 20 N/mm2 and the steel grade, fyk is 500 N/mm2. Evaluate whether the beam has been designed as under reinforced section AND also determine if the section is able to resist an applied moment of 75 kN.m. [10 marks] 30 mm T 3H10 300 mm 5H12 30 mm 100 mm FIGURE Q2
1. Reinforced Rectangular Concrete Beam The reinforced concrete beam shown is subjected to a bending moment...
1. Reinforced Rectangular Concrete Beam The reinforced concrete beam shown is subjected to a bending moment of 200 kip ft. Knowing that the modulus of elasticity for the concrete and the steel are respectively Ec= 3.75 X 10 psi and Es = 30 x 10 psi, determine the tensile stress in [ksh] that develops in the steel bars. 20 in 1 in diameter 72.5 in 12 in-
131 The concrete beam is reinforced with three 20-mm- diameter steel rods. Assume that the concrete...
131 The concrete beam is reinforced with three 20-mm- diameter steel rods. Assume that the concrete cannot support tensile stress. If the allowable compressive stress for concrete is (allown2.5 MPa and the allowable tensile stress for steel is (?allow)st-220 MPa, determine the required dimension d so that both the concrete and steel achieve their allowable stress simultaneously. This condition is said to be 'balanced'. Also, compute the corresponding maximum allowable internal moment M that can be applied to the beam....
10, A w24x 55 floor beam supports a 4-inch-thick reinforced concrete slab with an effective width...
10, A w24x 55 floor beam supports a 4-inch-thick reinforced concrete slab with an effective width of 78 inches. The 28-day compressive strength of the concrete is 4 ksi. a. Determine required number of anchors to make the beam fully composite. b. Calculate resisting moment of the steel beam before concrete hardens,pMn. c. Calculate resisting moment of the composite beam, Mn. d. If number of studs are reduced by 25%, determine the available flexural strength of composite beam,oMn. Calculate final...
03(a) A reinforced concrete beam is acted on by a positive bending moment. reinforcement consists of 4 bars of 28 mm diameter. The modulus of elasticity is E 25 GPa for the concrete and E-200 G...
03(a) A reinforced concrete beam is acted on by a positive bending moment. reinforcement consists of 4 bars of 28 mm diameter. The modulus of elasticity is E 25 GPa for the concrete and E-200 GPa for the steel. The allowable stresses for the concrete and steel are ơ.-9.2 MPa and ơ.-135 MPa, respectively. Determine the maximum permissible positive bending moment. (10 marks) 625 mm 4 bars 28 mm -300 mm Figure Q3(a) 03(b) A simply supported beam that is...
Problem 2. A concrete beam is reinforced by three steel rebars placed as shown. The modulus of elasticity is 3x106 psi for concrete and 29x106 psi for steel. Find the tensile stress in rebars and maximum compressive stress in concrete under an external bending moment of (a) 80 kip.in and (b) 240 kip.in. Given the compressive strength of concrete fe' = 3 ksi and yield stress of rebars fy = 60 ksi, discuss the state of crack in concrete and...
A reinforced concrete beam of T-section is cast from N32
concrete. The beam has a flange width of 805mm, flange thickness
90mm, web width of 300mm and overall depth of 650mm. Two, N32
tensile rods with an effective cover of 46mm are located in web
area, and four, N20 compressive rods with an effective cover of
25mm are located in the flange area. The center-to-center distance
between the compressive rods is 225mm. The bending moment applied
to the section is...
I designed and detailed the beam in problem 3 as you see.
Redesign the reinforced concrete beam of problem 3, If the value of
factored bending moment increased to 1,600 k.ft where the section
needs to be designed as a doubly reinforced beam.
3) Design and detail the reinforced concrete beam shown below if it is subjected to a factored bending moment of 1,100 k.ft f'=4,800psi fx=60 ksi. Include skin steel. 36" 15" 2#6 36 24 kino f's = 4800...
2. A rectangular beam, 400 x 600 mm gross dimension, is cast using a concrete strength of fc 30 MPa, reinforced with 5-25 mm diameter steel bar at the effective depth of 500 mm. If is subjected to a moment, M 130 kN-m. Determine the following: Magnitude of the bending moment that cracks the singly-reinforced beam section. (10 pts) b. For the computed cracking moment, determine the maximum compressive stress in the concrete and the stress in the tension steel....
FIGURE Q2 shows cross-section of a rectangular doubly reinforced concrete beam. The concrete grade, fck is 20 N/mm2 and the steel grade, fyk is 500 N/mm2. Evaluate whether the beam has been designed as under reinforced section AND also determine if the section is able to resist an applied moment of 75 kN.m. [10 marks] 30 mm T 3H10 300 mm 5H12 30 mm 100 mm FIGURE Q2
1. Reinforced Rectangular Concrete Beam The reinforced concrete beam shown is subjected to a bending moment of 200 kip ft. Knowing that the modulus of elasticity for the concrete and the steel are respectively Ec= 3.75 X 10 psi and Es = 30 x 10 psi, determine the tensile stress in [ksh] that develops in the steel bars. 20 in 1 in diameter 72.5 in 12 in-
131 The concrete beam is reinforced with three 20-mm- diameter steel rods. Assume that the concrete cannot support tensile stress. If the allowable compressive stress for concrete is (allown2.5 MPa and the allowable tensile stress for steel is (?allow)st-220 MPa, determine the required dimension d so that both the concrete and steel achieve their allowable stress simultaneously. This condition is said to be 'balanced'. Also, compute the corresponding maximum allowable internal moment M that can be applied to the beam....
10, A w24x 55 floor beam supports a 4-inch-thick reinforced concrete slab with an effective width of 78 inches. The 28-day compressive strength of the concrete is 4 ksi. a. Determine required number of anchors to make the beam fully composite. b. Calculate resisting moment of the steel beam before concrete hardens,pMn. c. Calculate resisting moment of the composite beam, Mn. d. If number of studs are reduced by 25%, determine the available flexural strength of composite beam,oMn. Calculate final...
03(a) A reinforced concrete beam is acted on by a positive bending moment. reinforcement consists of 4 bars of 28 mm diameter. The modulus of elasticity is E 25 GPa for the concrete and E-200 GPa for the steel. The allowable stresses for the concrete and steel are ơ.-9.2 MPa and ơ.-135 MPa, respectively. Determine the maximum permissible positive bending moment. (10 marks) 625 mm 4 bars 28 mm -300 mm Figure Q3(a) 03(b) A simply supported beam that is...
