Homework Answers
Add Answer to:
i
need 4e and 5b

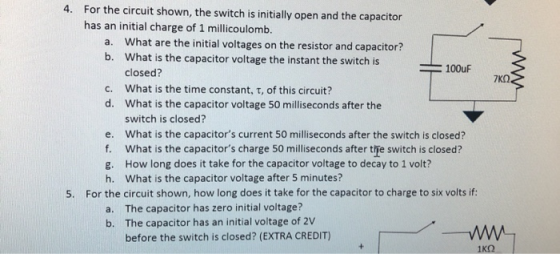

4. For the circuit shown, the switch is initially open and...
A circuit is wired up as shown below. The capacitor is initially uncharged and switches S1 and S2 are initially open.
A circuit is wired up as shown below. The capacitor is initially uncharged and switches S1 and S2 are initially open.1) What is the voltage across the capacitor immediately after
switch S1 is closed?Vc = 0Vc = VVc = 2V/32) What is the voltage across the capacitor after switch S1 has
been closed for a very long time?Vc = 0Vc = VVc = 2V/33) After being closed a long time, switch 1 is opened and switch
2 is closed. What...
Initially, for the circuit shown, the switch S is open and the capacitor voltage is 150...
Initially, for the circuit shown, the switch S is open
and the capacitor voltage is 150 V. The resistance and
capacitance are 1.2 M? and 34 µF respectively.
The switch S is closed at time t = 0. In Figure,
the charge in µC on the capacitor, when the current in the
circuit is 15 µA, is:
A circuit is constructed with four resistors, one capacitor, one battery and a switch as shown....
A circuit is constructed with four resistors, one capacitor, one
battery and a switch as shown. The values for the resistors are:
R1
= R2
= 67 ?, R3
= 96 ? and R4
= 77 ?. The capacitance is C = 48 ?F and the battery voltage is V =
24 V.
Consider the circuit above, with R5
= 67 ? in series with the capacitor. Once again, the switch has
been open for a long time when at...
9) For the circuit shown in the figure, the switch S is initially open and the...
9) For the circuit shown in the figure, the switch S is initially open and the capacitor is uncharged. The switch is then closed at time t 0. What is the time constant of the circuit? How many seconds after closing the switch will the energy stored in the capacitor be equal to 49.1 x 10-3 J? The capacitance is 89 x 10-6 F, the resistor is 0.56 x 106 ohms, and the voltage is 40. V
A circuit is constructed with four resistors, one capacitor, one battery and a switch as shown....
A circuit is constructed with four resistors, one capacitor, one
battery and a switch as shown. The values for the resistors are: R1
= R2 = 60 Ω, R3 = 49 Ω and R4 = 133 Ω. The capacitance is C = 75 μF
and the battery voltage is V = 24 V.
1)
The switch has been open for a long time when at time t = 0, the
switch is closed. What is I1(0), the magnitude of the...
Answer: 96. Consider the circuit below. The capacitor has a capacitance of 10 mF. The switch...
Answer:
96. Consider the circuit below. The capacitor has a capacitance of 10 mF. The switch is closed and after a long time the capacitor is fully charged. (a) What is the current through each resistor a long time after the switch is closed? (b) What is the voltage across each resistor a long time after the switch is closed? (c) What is the voltage across the capacitor a long time after the switch is closed? (d) What is the...
A circuit is constructed with four resistors, one capacitor, onebattery and a switch as shown....
A circuit is constructed with four resistors, one capacitor, one
battery and a switch as shown. The values for the resistors are:
R1 = R2 = 56 Ω, R3 = 45 Ω and
R4 = 91 Ω. The capacitance is C = 44 μF and the battery
voltage is V = 24 V.4)Consider the circuit above, with R5 = 81 Ω in series
with the capacitor. Once again, the switch has been open for a long
time when at time...
in the circuit the switch is initially open as shown w 1) In the circuit, the...
in the circuit the switch is initially open as shown
w 1) In the circuit, the switch is initially open as shown. At time 0 , the switch is closed. The values are: R = 100 92, R = 150 2, L=1.00 H, and 8 = 50.0 V. Explain your reasoning clearly in your answers to the following. a) Determine the currents (i, and in through each resistor immediately after the switch is closed. b) Determine each of these currents...
For the circuit shown, the switch has been open for a long time. Explain about charges,...
For
the circuit shown, the switch has been open for a long time.
Explain about charges, currents, and voltages. Now, the switch
closed at t1. Explain what is now true about the charges, currents,
and voltages. Did the charge in C2 increase, or decrease?
The switch A in the circuit has been open for a long time. Calculate the voltage...
The switch A in the circuit has been open for a long time.
Calculate the voltage u_2(t) after the switch is closed at t=0. The
capacitor C_1 has a initial voltage of u_1=100 V at t<0.
Capacitor C_2 lacks initial energy.
Rz = 200 kN2 R2 = 120 k12 + + C
A circuit is wired up as shown below. The capacitor is initially uncharged and switches S1 and S2 are initially open.1) What is the voltage across the capacitor immediately after
switch S1 is closed?Vc = 0Vc = VVc = 2V/32) What is the voltage across the capacitor after switch S1 has
been closed for a very long time?Vc = 0Vc = VVc = 2V/33) After being closed a long time, switch 1 is opened and switch
2 is closed. What...
Initially, for the circuit shown, the switch S is open
and the capacitor voltage is 150 V. The resistance and
capacitance are 1.2 M? and 34 µF respectively.
The switch S is closed at time t = 0. In Figure,
the charge in µC on the capacitor, when the current in the
circuit is 15 µA, is:
A circuit is constructed with four resistors, one capacitor, one
battery and a switch as shown. The values for the resistors are:
R1
= R2
= 67 ?, R3
= 96 ? and R4
= 77 ?. The capacitance is C = 48 ?F and the battery voltage is V =
24 V.
Consider the circuit above, with R5
= 67 ? in series with the capacitor. Once again, the switch has
been open for a long time when at...
9) For the circuit shown in the figure, the switch S is initially open and the capacitor is uncharged. The switch is then closed at time t 0. What is the time constant of the circuit? How many seconds after closing the switch will the energy stored in the capacitor be equal to 49.1 x 10-3 J? The capacitance is 89 x 10-6 F, the resistor is 0.56 x 106 ohms, and the voltage is 40. V
A circuit is constructed with four resistors, one capacitor, one
battery and a switch as shown. The values for the resistors are: R1
= R2 = 60 Ω, R3 = 49 Ω and R4 = 133 Ω. The capacitance is C = 75 μF
and the battery voltage is V = 24 V.
1)
The switch has been open for a long time when at time t = 0, the
switch is closed. What is I1(0), the magnitude of the...
Answer:
96. Consider the circuit below. The capacitor has a capacitance of 10 mF. The switch is closed and after a long time the capacitor is fully charged. (a) What is the current through each resistor a long time after the switch is closed? (b) What is the voltage across each resistor a long time after the switch is closed? (c) What is the voltage across the capacitor a long time after the switch is closed? (d) What is the...
A circuit is constructed with four resistors, one capacitor, one
battery and a switch as shown. The values for the resistors are:
R1 = R2 = 56 Ω, R3 = 45 Ω and
R4 = 91 Ω. The capacitance is C = 44 μF and the battery
voltage is V = 24 V.4)Consider the circuit above, with R5 = 81 Ω in series
with the capacitor. Once again, the switch has been open for a long
time when at time...
in the circuit the switch is initially open as shown
w 1) In the circuit, the switch is initially open as shown. At time 0 , the switch is closed. The values are: R = 100 92, R = 150 2, L=1.00 H, and 8 = 50.0 V. Explain your reasoning clearly in your answers to the following. a) Determine the currents (i, and in through each resistor immediately after the switch is closed. b) Determine each of these currents...
For
the circuit shown, the switch has been open for a long time.
Explain about charges, currents, and voltages. Now, the switch
closed at t1. Explain what is now true about the charges, currents,
and voltages. Did the charge in C2 increase, or decrease?
The switch A in the circuit has been open for a long time.
Calculate the voltage u_2(t) after the switch is closed at t=0. The
capacitor C_1 has a initial voltage of u_1=100 V at t<0.
Capacitor C_2 lacks initial energy.
Rz = 200 kN2 R2 = 120 k12 + + C
