A 4.50 μF and an 9.00 μF capacitor are connected in parallel to a 70.0 Hz...

Question

Question

A 4.50 μF and an 9.00 μF capacitor are connected in parallel to a 70.0 Hz generator operating with an rms voltage of 140 V .

What is the rms current supplied by the generator?

science physics

Answer 1

Answer #1

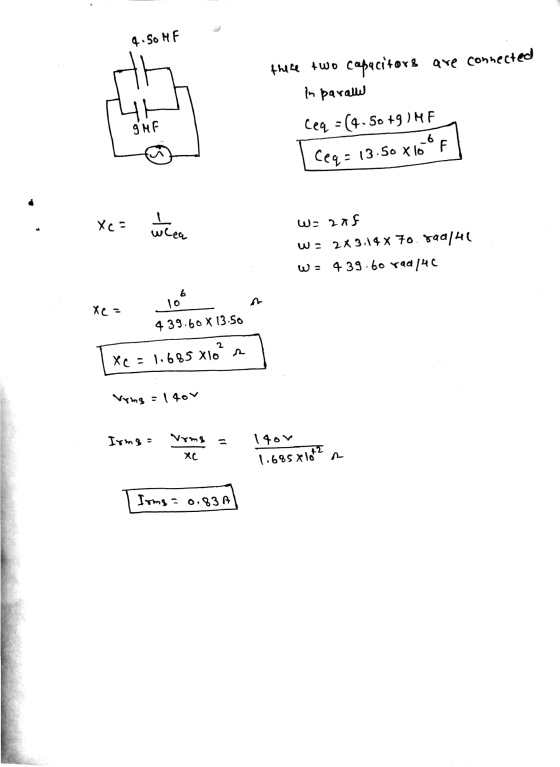

4.50 MF these two capacitors are connected in paralu ceq = (4.50 +9 ) MF SHF Ceq = 13.50X100F Xcs i Lucea W=2af W = 2X3.148 7

Answer 2
