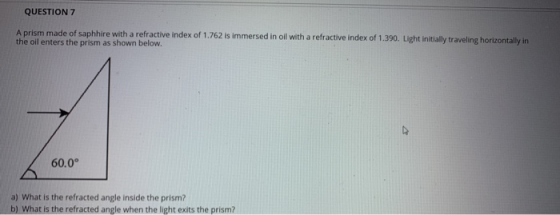

QUESTION 7 A prism made of saphhire with a refractive index of 1.762 is immersed in oil with a refractive index of 1.390. Lig
a) What is the refracted angle inside the prism? b) What is the refracted angle when the light exits the prism? A. The refrac
science   Advanced-Physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

Option B and H are correct. For explanation please find the attachment.

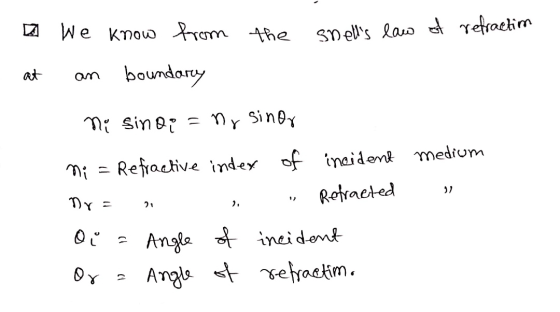

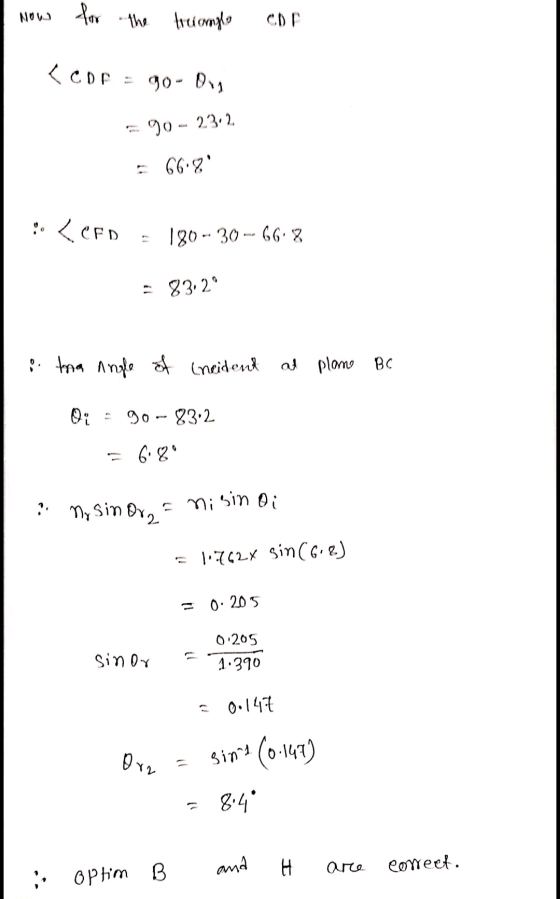

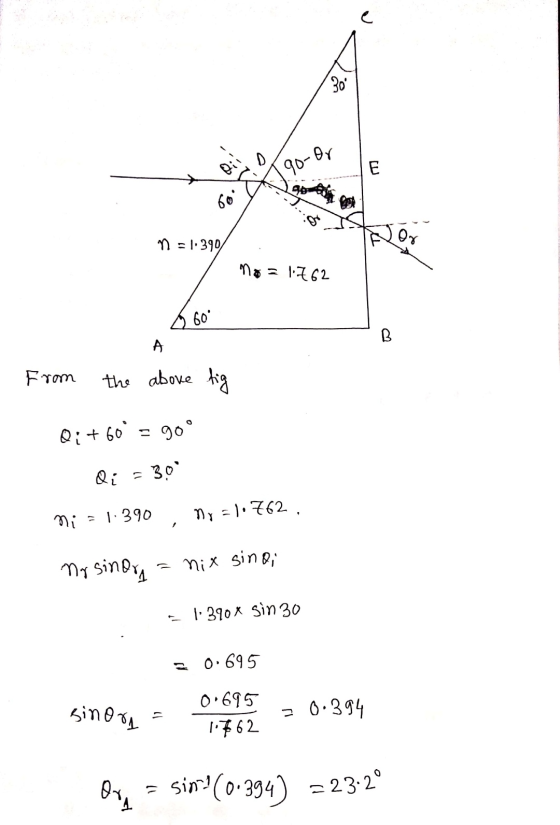

12 We know from the snells law of refraction at an boundary ni sindi = nr sinor ni = Refractive index of incident medium Ret30 90-Or E 60 Og n = 1.390 no = 1762 .09 8 From the above fig Q: +60° = 90° 309 . mi 1.390 My = 10762 no sinora nix sindi 1.3Now for the triangle <cor go - Orn 90 - 23.2 66.2 :. (CFD 180 - 30 - 66.8 - 83.29 itora angle of (neident at plomo BC O: 90 -

0 0
