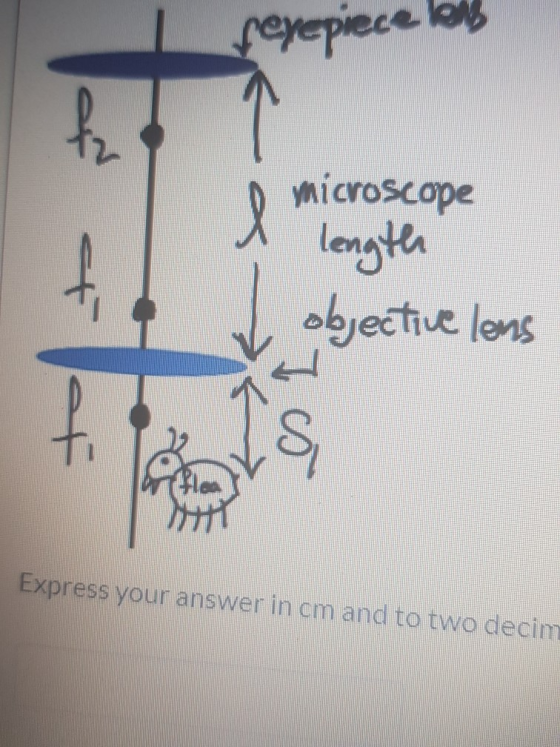

a microscope has a converging lens (the eyepiece) with a focal length of f1=1.73cm mounted on one end of a tube of adjustable length. at the other end is another converging lens (the objective) that has a focal length of f2=29.04 cm. when you place a small flea you want to examine at a distance of s1=3.36 cm from the objective . find the overall length of the microscope needed to view the sample (the flea) in focus with a completely relaxed eye? hint- a normal relaxed eye will expect to find an image at infinity . the length l of the microscope here is the distance between the eyepiece and the objective lens as shown in the fingure.
express your answer in cm and to two decimal places.
show work for full credit
Homework Answers
answer = 32.61 cm
Add Answer to:
a microscope has a converging lens (the eyepiece) with
a focal length of f1=1.73cm mounted on...
a microscope with converging lens (eyepiece) has a focal lenght of f1= 1.42cm mounted on one...
a microscope with converging lens (eyepiece) has a
focal lenght of f1= 1.42cm mounted on one end of a tube of
adjustable lenght. the other end is another converging lens (the
objective)that has a focal lenght of f2=14.65 cm. when you place
the flea at a distance of s1=3.20cm from the objective, find the
overall lenght (cm) of the microscope needed to view the sample (a
flea) in focus with a relaxed eye.
hint(a normal relaxed eye will expect to...
The microscope available in your biology lab has a converging lens (the eyepiece) with a focal length of 2.50 cm mounted...
The microscope available in your biology lab has a converging lens (the eyepiece) with a focal length of 2.50 cm mounted on one end of a tube of adjustable length. At the other end is another converging lens (the objective) that has a focal length of 1.00 cm. When you place the sample to be examined at a distance of 1.30 cm from the objective, at what length will you need to adjust the tube of the microscope in order...
(10 points: for full credit all work must be turned in) A microscope has a converging...
(10 points: for full credit all work must be turned in) A microscope has a converging lens (the eyepiece) with a focal length of f; = 2.07 cm mounted on one end of a tube of adjustable length. At the other end is another converging lens (the objective) that has a focal length of f2. = 15.01 cm . When you place a small flea you want to examine at a distance of sy = 3.67 cm from the objective,...
need help please a microscope with a converging lens the eye part has a focal lenght...
need help please
a microscope with a converging lens the eye part has a focal lenght
f2=1.42cm . at the other end is another converging lens the
objective that has a focal lenght of f1=14.65cm. when you place a
bug you want to examine at a distance of s1=3.20cm from the
objective. what is the overall lenght of the microscope to view the
bug with a relaxed a eye.
hint: a normal eye will expect to find an image at...
In a two-lens system, the image produced by one lens acts as the object for the...
In a two-lens system, the image produced by one lens acts as the object for the next lens. This simple principle finds applications in many optical instruments, including some of common use such as the microscope and the telescope. Part A The microscope available in your biology lab has a converging lens (the eyepiece) with a focal length of 2.50 cm mounted on one end of a tube of adjustable length. At the other end is another converging lens (the...
A compound microscope has the objective and eyepiece mounted in a tube that is 18.8 cm...
A compound microscope has the objective and eyepiece mounted in a tube that is 18.8 cm long. The focal length of the eyepiece is 2.55 cm , and the near-point distance of the person using the microscope is 24.0 cm . If the person can view the image produced by the microscope with a completely relaxed eye, and the magnification is -4516, what is the distance between the objective lens and the object to be examined?
A compound microscope has the objective and eyepiece mounted in a tube that is 20.0 cm...
A compound microscope has the objective and eyepiece mounted in a tube that is 20.0 cm long. The focal length of the eyepiece is 2.72 cm , and the near-point distance of the person using the microscope is 25.0 cm. If the person can view the image produced by the microscope with a completely relaxed eye, and the magnification is -4025, what is the focal length of the objective?
A microscope of length L = 12.0 cm has a 33× eyepiece lens. If the objective...
A microscope of length L = 12.0 cm has a 33× eyepiece lens. If the objective lens has a focal length of 1.1 cm, find the overall magnification of the microscope. Assume a normal relaxed eye.
Microscope - New A microscope has a 13.0 x eyepiece and a 64.0 x objective lens...
Microscope - New A microscope has a 13.0 x eyepiece and a 64.0 x objective lens 22.0 cm apart. It has been adjusted for a RELAXED normal eye. Part A Calculate the total magnification. Part B Calculate the focal length for the EYEPIECE. Part C Calculate the image distance for the OBJECTIVE.
A compound microscope has an objective lens of focal length 10.3 mm with an eyepiece of...
A compound microscope has an objective lens of focal length 10.3 mm with an eyepiece of focal length 15.0 mm , and it produces its final image at infinity. The object to be viewed is placed 2.0 mm beyond the focal point of the objective lens. Part A: How far from the objective lens is the first image formed? Express your answer in millimeters to three significant figures. Part B: What is the overall magnification of this microscope? Express your...
a microscope with converging lens (eyepiece) has a
focal lenght of f1= 1.42cm mounted on one end of a tube of
adjustable lenght. the other end is another converging lens (the
objective)that has a focal lenght of f2=14.65 cm. when you place
the flea at a distance of s1=3.20cm from the objective, find the
overall lenght (cm) of the microscope needed to view the sample (a
flea) in focus with a relaxed eye.
hint(a normal relaxed eye will expect to...
(10 points: for full credit all work must be turned in) A microscope has a converging lens (the eyepiece) with a focal length of f; = 2.07 cm mounted on one end of a tube of adjustable length. At the other end is another converging lens (the objective) that has a focal length of f2. = 15.01 cm . When you place a small flea you want to examine at a distance of sy = 3.67 cm from the objective,...
need help please
a microscope with a converging lens the eye part has a focal lenght
f2=1.42cm . at the other end is another converging lens the
objective that has a focal lenght of f1=14.65cm. when you place a
bug you want to examine at a distance of s1=3.20cm from the
objective. what is the overall lenght of the microscope to view the
bug with a relaxed a eye.
hint: a normal eye will expect to find an image at...
Microscope - New A microscope has a 13.0 x eyepiece and a 64.0 x objective lens 22.0 cm apart. It has been adjusted for a RELAXED normal eye. Part A Calculate the total magnification. Part B Calculate the focal length for the EYEPIECE. Part C Calculate the image distance for the OBJECTIVE.
