Microscope - New A microscope has a 13.0 x eyepiece and a 64.0 x objective lens...

Question

Question

Image for Microscope - New A microscope has a 13.0 x eyepiece and a 64.0 x objective lens 22.0 cm apart. It has been adj

science physics

Answer 1

Answer #1

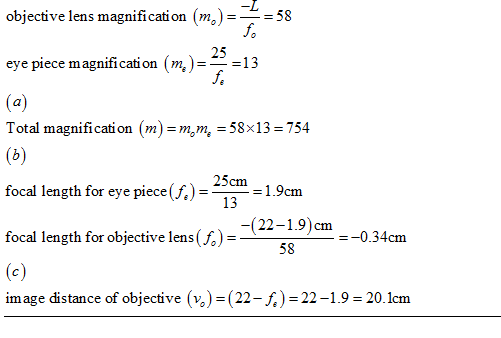

objective lens magnification (mo)F58 25 eye piece magnification (m,-13 Total magnification (m)-m,m, 58x13 754 focal length fo

Answer 2
