an object is 1.2 cm form the objective lens of a simple compound microscope that is...

an object is 1.2 cm form the objective lens of a simple compound microscope that is adjusted for a relaxed normal eye. the objective and eyepiece are 18 cm apart and the eyepiece has a focal length of 4.8 cm. what is the focal length of the objective lens?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

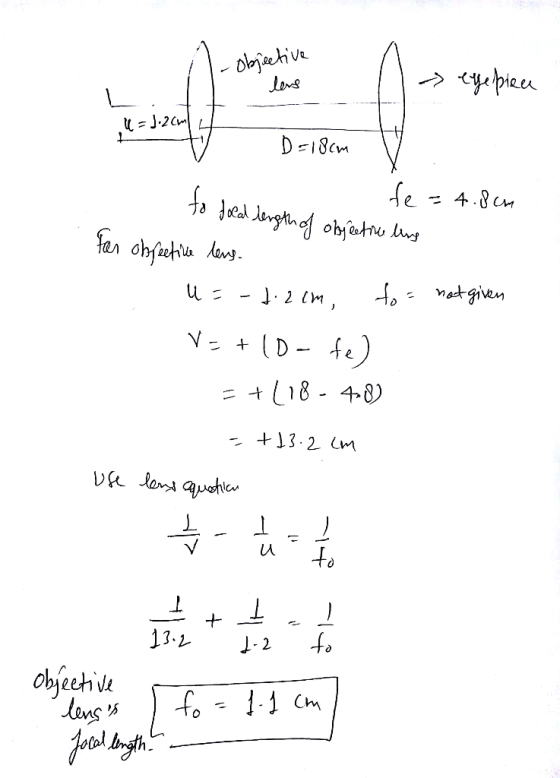

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
an object is 1.2 cm form the objective lens of a simple compound microscope that is...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • Microscope - New A microscope has a 13.0 x eyepiece and a 64.0 x objective lens...

    Microscope - New A microscope has a 13.0 x eyepiece and a 64.0 x objective lens 22.0 cm apart. It has been adjusted for a RELAXED normal eye. Part A Calculate the total magnification. Part B Calculate the focal length for the EYEPIECE. Part C Calculate the image distance for the OBJECTIVE.

  • A compound microscope has the objective and eyepiece mounted in a tube that is 18.8 cm...

    A compound microscope has the objective and eyepiece mounted in a tube that is 18.8 cm long. The focal length of the eyepiece is 2.55 cm , and the near-point distance of the person using the microscope is 24.0 cm . If the person can view the image produced by the microscope with a completely relaxed eye, and the magnification is -4516, what is the distance between the objective lens and the object to be examined?

  • A compound microscope consists of a 3× eyepiece & a 34× objective 21 cm apart. Assuming...

    A compound microscope consists of a 3× eyepiece & a 34× objective 21 cm apart. Assuming the final image is in focus with the eye relaxed, determine the following: Microscope magnification = Eyepiece focal length = Objective focal length = Distance of object from objective =

  • A microscope of length L = 12.0 cm has a 33× eyepiece lens. If the objective...

    A microscope of length L = 12.0 cm has a 33× eyepiece lens. If the objective lens has a focal length of 1.1 cm, find the overall magnification of the microscope. Assume a normal relaxed eye.

  • A microscope has a 9.0✕ eyepiece and a 63.0✕ objective 20.0 cm apart. (a) Calculate the...

    A microscope has a 9.0✕ eyepiece and a 63.0✕ objective 20.0 cm apart. (a) Calculate the total magnification. ___________✕ (b) Calculate the focal length of each lens. eyepiece _________cm objective _________cm (c) Calculate where the object must be for a normal relaxed eye to see it in focus. __________cm

  • A compound microscope consists of a 4× eyepiece & a 42× objective 30 cm apart. Assuming...

    A compound microscope consists of a 4× eyepiece & a 42× objective 30 cm apart. Assuming the final image is in focus with the eye relaxed, determine the following: Objective focal length =   Distance of object from objective =

  • The objective lens and the eyepiece of a microscope are 16.5 cm apart. The objective lens...

    The objective lens and the eyepiece of a microscope are 16.5 cm apart. The objective lens has a magnification of 61× and the eyepiece has a magnification of 10 ×. Assume that the image of the objective lies very close to the focal point of the eyepiece. A. Calculate the overall magnification of the microscope. B.Calculate the focal length of the eyepiece. C. Calculate the focal length of the objective.

  • The objective lens and the eyepiece of a microscope are 16.5 cm apart. The objective lens...

    The objective lens and the eyepiece of a microscope are 16.5 cm apart. The objective lens has a magnification of 61 × and the eyepiece has a magnification of 11 ×. Assume that the image of the objective lies very close to the focal point of the eyepiece. A) Calculate the overall magnification of the microscope. B) Calculate the focal length of the eyepiece. C) Calculate the focal length of the objective.

  • A compound microscope has the objective and eyepiece mounted in a tube that is 20.0 cm...

    A compound microscope has the objective and eyepiece mounted in a tube that is 20.0 cm long. The focal length of the eyepiece is 2.72 cm , and the near-point distance of the person using the microscope is 25.0 cm. If the person can view the image produced by the microscope with a completely relaxed eye, and the magnification is -4025, what is the focal length of the objective?

  • In a two-lens system, the image produced by one lens acts as the object for the...

    In a two-lens system, the image produced by one lens acts as the object for the next lens. This simple principle finds applications in many optical instruments, including some of common use such as the microscope and the telescope. Part A The microscope available in your biology lab has a converging lens (the eyepiece) with a focal length of 2.50 cm mounted on one end of a tube of adjustable length. At the other end is another converging lens (the...
