1.)What is the critical angle for a ray of light traveling from glass (n=1.5) to water...

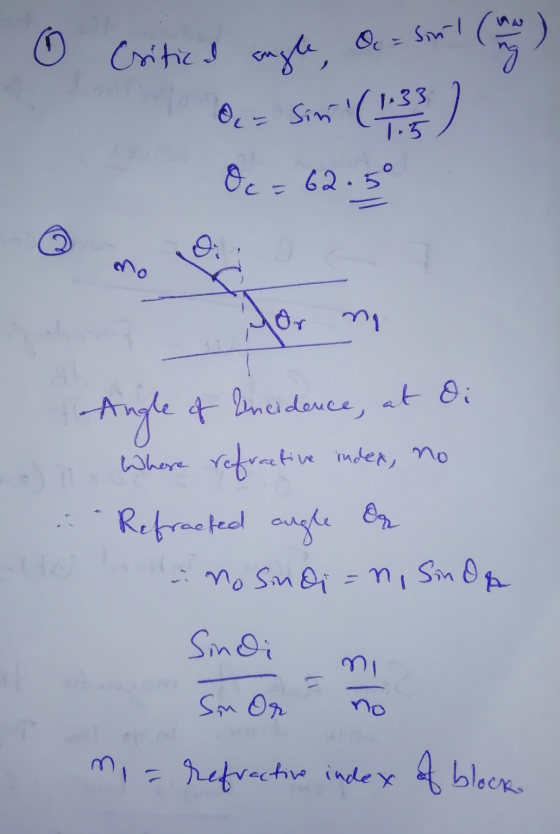

1.)What is the critical angle for a ray of light traveling from glass (n=1.5) to water (n=1.33)? Show all calculations in your answer.
2.)What is the relationship between the incident angle at the top of the block and the refracted angle at the bottom of the block? Explain using Snell’s law
Homework Answers
Add Answer to:
1.)What is the critical angle for a ray of light
traveling from glass (n=1.5) to water...
If light is moving from water (n=1.33) to glass (1.5) at an angle of 25 degrees,...
If light is moving from water (n=1.33) to glass (1.5) at an angle of 25 degrees, what is the refracted angle? Is it possible to have a critical angle? If so what is it? If not explain.
What is the relationship between the incident angle at the top of the block and the...
What is the relationship between the incident angle at the top of the block and the refracted angle at the bottom of the block? Explain using Snell’s law
A ray of light travels from air into glass ( n glass =1.33 ). The incident...
A ray of light travels from air into glass ( n glass =1.33 ). The incident angle ( θi ) is 23 ∘ . Hints: n i sin( θ i )= n r sin( θ r ) nisin(θi)=nrsin(θr) If θ i = θ critical θi=θcritical then θ r = 90 ∘ θr=90∘ n air =1.00 nair=1.00 What is the refracted angle inside the glass in degrees? θ r θr = ∘ If the light ray instead travels from the glass...
A block of glass with flat sides is surrounded by air. A ray of light traveling...
A block of glass with flat sides is surrounded by air. A ray of light traveling in the glass (refractive index na) is incident on the flat interface with air at the top surface of the block of glass. You observe that no light is refracted into the air if the incident ray in the glass has an angle of incidence (measured relative to the normal to the surface of the glass) greater than 35.5°. What is the refractive index...
5. A ray of light strikes a thick sheet of glass (n = 1.5 ) at...
5. A ray of light strikes a thick sheet of glass (n = 1.5 ) at an angle of 25° with the normal. Find the angle of the ray reflected off the glass surface with respect to the normal. a. 56 b. 46° c. 39° d. 25° A beam of light in air is incident at an angle of 30° to the surface of a rectangular block of clear plastic (n = 1.46). The light beam first passes through the...
A ray in glass is incident onto a water-glass interface, at an angle of incidence equal...
A ray in glass is incident onto a water-glass interface, at an angle of incidence equal to half the critical angle for that interface. The indices of refraction for water and the glass are 1.33 and 1.88, respectively. The angle that the refracted ray in the water makes with the normal is closest to: a) 23 degrees b) 33 degrees c) 28 degrees d) 38 degrees e) 43 degrees
Please show work. Thank you A ray of light traveling through air is incident upon a...
Please show work. Thank you
A ray of light traveling through air is incident upon a sheet of crown glass (n = 1.52) at an angle of 30 degree to the normal. What is the angle of refraction? A ray of light passes into water from air at an angle of 50 degree to the lake's surface. What is the angle of refraction? What is the speed of light in the water? Calculate the s of light in a diamond....
1.33 1. Light travels from glass to water. It strikes the boundary at an angle of...
1.33 1. Light travels from glass to water. It strikes the boundary at an angle of 45 degrees. At what angle is the refracted ray in the water? Tour dot snell's Law = n, sing, = n₂sina O a= na sinde Az = 1 o sin45 - 12 The mount Port nge. The e an
Light that is traveling through water (index of refraction is n=1.33) strikes a glass surface (index...
Light that is traveling through water (index of refraction is
n=1.33) strikes a glass surface (index of refraction n=1.50) at an
incident angle of θi=48.1°.
What is the the angle of refraction, θr, of the light in
the glass?
Light that is traveling through glass (index of refraction is
n=1.50) strikes an air surface (index of refraction n=1.00) at an
incident angle of θi=27.9°.
What is the the angle of refraction, θr, of the light
in the air?
Water Glass
P[roble# 1. A light ray is incident normally (.e. perpendicularly on the interface) from WATER on...
P[roble# 1. A light ray is incident normally (.e. perpendicularly on the interface) from WATER on one face of a 30-60-90-degree prism of dense flint glass. The index of refraction of the prism is n2= 1.66. The index of refraction of the WATER is n = 1.33. A. Calculate the angle Bo and show that the ray will Have total internal reflection. B. What are the value of the angles C. If we added solution to the WATER to increase...
5. A ray of light strikes a thick sheet of glass (n = 1.5 ) at an angle of 25° with the normal. Find the angle of the ray reflected off the glass surface with respect to the normal. a. 56 b. 46° c. 39° d. 25° A beam of light in air is incident at an angle of 30° to the surface of a rectangular block of clear plastic (n = 1.46). The light beam first passes through the...
Please show work. Thank you
A ray of light traveling through air is incident upon a sheet of crown glass (n = 1.52) at an angle of 30 degree to the normal. What is the angle of refraction? A ray of light passes into water from air at an angle of 50 degree to the lake's surface. What is the angle of refraction? What is the speed of light in the water? Calculate the s of light in a diamond....
1.33 1. Light travels from glass to water. It strikes the boundary at an angle of 45 degrees. At what angle is the refracted ray in the water? Tour dot snell's Law = n, sing, = n₂sina O a= na sinde Az = 1 o sin45 - 12 The mount Port nge. The e an
Light that is traveling through water (index of refraction is
n=1.33) strikes a glass surface (index of refraction n=1.50) at an
incident angle of θi=48.1°.
What is the the angle of refraction, θr, of the light in
the glass?
Light that is traveling through glass (index of refraction is
n=1.50) strikes an air surface (index of refraction n=1.00) at an
incident angle of θi=27.9°.
What is the the angle of refraction, θr, of the light
in the air?
Water Glass
P[roble# 1. A light ray is incident normally (.e. perpendicularly on the interface) from WATER on one face of a 30-60-90-degree prism of dense flint glass. The index of refraction of the prism is n2= 1.66. The index of refraction of the WATER is n = 1.33. A. Calculate the angle Bo and show that the ray will Have total internal reflection. B. What are the value of the angles C. If we added solution to the WATER to increase...
