4. Gear bending stress. Consider just the pair Gear 1 and 2. Gears are all 20º...
4. Gear bending stress. Consider just the pair Gear 1
and 2. Gears are all 20º pressure angle with

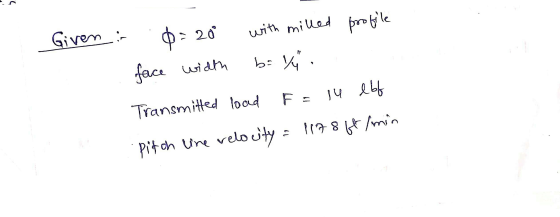

a milled profile and a face width of ¼”. Let the transmitted load
be 14.0 lbf and the pitch-line
velocity be 1178 ft/min.

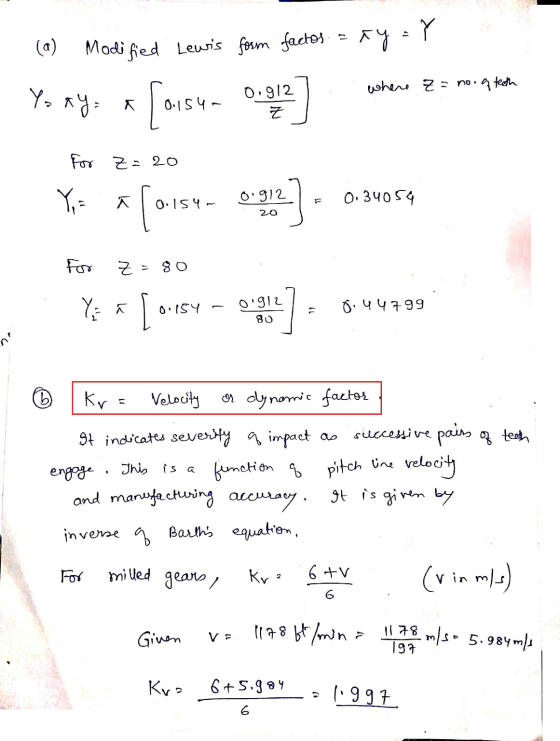

a) What is Y for 20 and 80 teeth?
b) What is Kv?

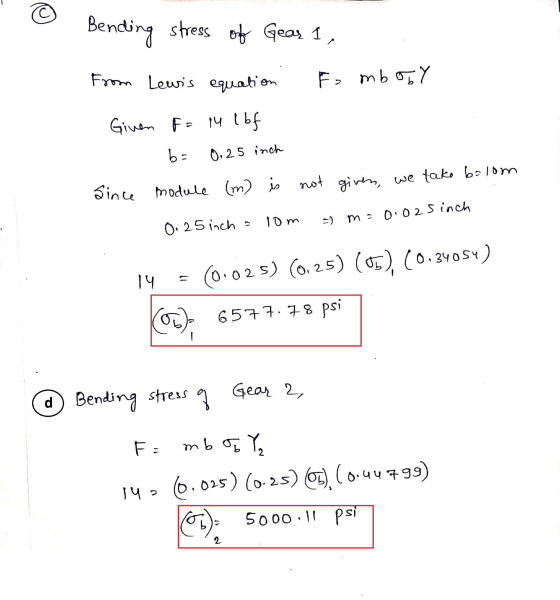

c) What is the bending stress on Gear 1, in psi?
d) What is the bending stress on Gear 2?
Homework Answers
![Modified Lewis form factos ty = ? where Z= no Yo ay: a [arsun 0.912 Y* [0.1st ote] For z = 20 0.34054 For Z = 80 Y Yo a [9154](http://img.homeworklib.com/questions/9f3d3b10-f83e-11ea-9e69-2142c163676d.png?x-oss-process=image/resize,w_560)
Add Answer to:
4. Gear bending stress. Consider just the pair Gear 1
and 2. Gears are all 20º...
5. Gear wear stress. Let both gears be made of steel (E = 30,000,000 psi, n...
5. Gear wear stress. Let both gears be made of steel (E = 30,000,000 psi, n = 0.3). a) What is Cp? b) What is r1, in inches? c) What is r2? d) What is the compressive stress on the gear set? (Answer should be a negative number.) Gears are all 20º pressure angle with a milled profile and a face width of ¼”. Let the transmitted load be 14.0 lbf and the pitch-line velocity be 1178 ft/min.
Question 28 65 pts Aspur gear has a diametral pitch of 6 teethin, 20 teeth 20...
Question 28 65 pts Aspur gear has a diametral pitch of 6 teethin, 20 teeth 20 degrees pressure angle, full-depth and milled profile teeth with a face width of 1.5 in. The pitch line velocity is 750 ft/min. The gear is made of a material AISI 1040 HR steel What is the maximum allowable tangential load (b) that the Eear teeth can sustain based on the tooth bending stress criteria (provide answer to one decimal place?
Please help. Thx Part 2 (50 pts) A single-reduction spur gear system is as shown. The pinion "P" drives gear "G. Pinion"Pis driven at 1800 rpm with 1.5 hp Pinion "P" has a...
Please help.
Thx
Part 2 (50 pts) A single-reduction spur gear system is as shown. The pinion "P" drives gear "G. Pinion"Pis driven at 1800 rpm with 1.5 hp Pinion "P" has a pitch diameter of 2 inches, and has 20 teeth. The gear "Ghas 120 teeth. All teeth have a pressure angle of 20, full-depth, hobbed profile, and a face width of 0.5 inches. All materials are steel. Determine: A) Minimum number of pinion teeth: Np,min This shows that...
6) [20 pts) Bending Stress in a Gear A steel spur pinion has a pitch of...
6) [20 pts) Bending Stress in a Gear A steel spur pinion has a pitch of 6 teeth/in, 22 full-depth teeth with a cut profile, and a 20° pressure angle. The pinion runs at a speed of 1280 rev/min and transmits 15 hp to a 60-tooth gear. If the face width is 2 in., estimate the bending stress. Take the value of Lewis form factor, Y, from the table 14-2. The bending stress is kpsi.
A pair of bevel gears is required to transmit 11 kW at 500 r.p.m. from the motor shaft to another...
A pair of bevel gears is required to transmit 11 kW at 500 r.p.m. from the motor shaft to another shaft, the speed reduction being 3 : 1. The shafts are inclined at 60º. The pinion is to have 24 teeth with a pressure angle of 20º and is to be made of cast steel having a static stress of 80 MPa. The gear is to be made of cast iron with a static stress of 55 MPa. The tooth...
5. Figure 1 shows a gear train consisting of a pair of helical gears and a pair of bevel gears Th...
5. Figure 1 shows a gear train consisting of a pair of helical gears and a pair of bevel gears The helical gears have a 172° normal pressure angle and a helix angle as shown. Find (a) The speed of shaft c (b) The distance between shafts a and b (c) The pitch diameter of the bevel gears (d) If the transmitted power is 5kW, determine all force components and directions on all gears (e) Calculate the reactions at C...
Question #5 (20 pts) A pinion has 18 teeth and a diametral pitch of 9 teeth/in, a face width of 1,5 in sa pressure angle of 20° with full-depth teeth. The spur gear is made by the milling or emi...
Question #5 (20 pts) A pinion has 18 teeth and a diametral pitch of 9 teeth/in, a face width of 1,5 in sa pressure angle of 20° with full-depth teeth. The spur gear is made by the milling or emin required to transmit at least 11 hp horsepower with a corresponding speed and moderate applications. Which material is the best choice for the spu ones in Table 5 considering the maximum allowable bending stres (factor of safety, nd-2.5)? U quations...
A pair of helical gears is used with the following properties: 14.5 degree normal pressure angle,...
A pair of helical gears is used with the following properties: 14.5 degree normal pressure angle, 45 degree helix angle, diametral pitch of 8 teeth/in, 1.5-in face width, and normal diametral pitch of 11.31 teeth/in. The pinion has 12 teeth and a 1.5in pitch diameter, and the gear has 32 teeth and a 4.0 in pitch diameter. Both gears have full-depth teeth. If a right-hand pinion and a left hand gear are placed in mesh, find the transverse contact ratio,...
3. A commercial enclosed gear drive consists of a 20 spur pinion having 16 teeth driving a 48-tooth gear. The pinion speed is 300 rev/min, the gear face width 2 in., and the diametral pitch 6 teeth/i...
3. A commercial enclosed gear drive consists of a 20 spur pinion having 16 teeth driving a 48-tooth gear. The pinion speed is 300 rev/min, the gear face width 2 in., and the diametral pitch 6 teeth/in. The gears are grade t steel, through-hardened at 200 Brinell, made to No. 6 quality standards, uncrowned, and are to be accurately and ngid mounted Assume a lion life ofi will transmitareliability of90%(KR 0.85), and use YN 1.355N 01:8 and Z 1. used...
The accessory drive unit of a large aircraft engine involves an identical pair of 200 full-depth spur gears. The gears have 70 teeth and rotate together at 8000 rpm. The diametral pitch is 12 and...
The accessory drive unit of a large aircraft engine involves an identical pair of 200 full-depth spur gears. The gears have 70 teeth and rotate together at 8000 rpm. The diametral pitch is 12 and the face width 1.0 in. The gears are made of alloy steel, case-hardened to 62RC (680 Bhn). Although the case extends throughout the fillet, it is conservatively decided to use the core hardness of 500 Bhn for calculating fatigue strengths. The tooth profiles are finished...
Question 28 65 pts Aspur gear has a diametral pitch of 6 teethin, 20 teeth 20 degrees pressure angle, full-depth and milled profile teeth with a face width of 1.5 in. The pitch line velocity is 750 ft/min. The gear is made of a material AISI 1040 HR steel What is the maximum allowable tangential load (b) that the Eear teeth can sustain based on the tooth bending stress criteria (provide answer to one decimal place?
Please help.
Thx
Part 2 (50 pts) A single-reduction spur gear system is as shown. The pinion "P" drives gear "G. Pinion"Pis driven at 1800 rpm with 1.5 hp Pinion "P" has a pitch diameter of 2 inches, and has 20 teeth. The gear "Ghas 120 teeth. All teeth have a pressure angle of 20, full-depth, hobbed profile, and a face width of 0.5 inches. All materials are steel. Determine: A) Minimum number of pinion teeth: Np,min This shows that...
6) [20 pts) Bending Stress in a Gear A steel spur pinion has a pitch of 6 teeth/in, 22 full-depth teeth with a cut profile, and a 20° pressure angle. The pinion runs at a speed of 1280 rev/min and transmits 15 hp to a 60-tooth gear. If the face width is 2 in., estimate the bending stress. Take the value of Lewis form factor, Y, from the table 14-2. The bending stress is kpsi.
5. Figure 1 shows a gear train consisting of a pair of helical gears and a pair of bevel gears The helical gears have a 172° normal pressure angle and a helix angle as shown. Find (a) The speed of shaft c (b) The distance between shafts a and b (c) The pitch diameter of the bevel gears (d) If the transmitted power is 5kW, determine all force components and directions on all gears (e) Calculate the reactions at C...
Question #5 (20 pts) A pinion has 18 teeth and a diametral pitch of 9 teeth/in, a face width of 1,5 in sa pressure angle of 20° with full-depth teeth. The spur gear is made by the milling or emin required to transmit at least 11 hp horsepower with a corresponding speed and moderate applications. Which material is the best choice for the spu ones in Table 5 considering the maximum allowable bending stres (factor of safety, nd-2.5)? U quations...
3. A commercial enclosed gear drive consists of a 20 spur pinion having 16 teeth driving a 48-tooth gear. The pinion speed is 300 rev/min, the gear face width 2 in., and the diametral pitch 6 teeth/in. The gears are grade t steel, through-hardened at 200 Brinell, made to No. 6 quality standards, uncrowned, and are to be accurately and ngid mounted Assume a lion life ofi will transmitareliability of90%(KR 0.85), and use YN 1.355N 01:8 and Z 1. used...
The accessory drive unit of a large aircraft engine involves an identical pair of 200 full-depth spur gears. The gears have 70 teeth and rotate together at 8000 rpm. The diametral pitch is 12 and the face width 1.0 in. The gears are made of alloy steel, case-hardened to 62RC (680 Bhn). Although the case extends throughout the fillet, it is conservatively decided to use the core hardness of 500 Bhn for calculating fatigue strengths. The tooth profiles are finished...
