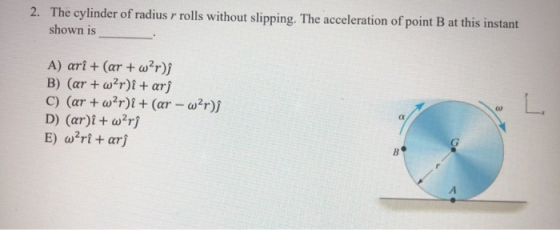

2. The cylinder of radius r rolls without slipping. The acceleration of point B at this...

Question

Question

engineering Mechanical-Engineering

Answer 1

Answer #1

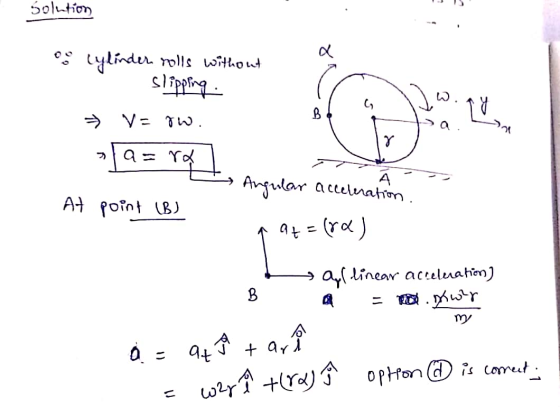

Solution a o cylinder rolls without slipping B V=Jw. 7 a= rf A At point (B) Angular acceleration. (ra) at = B my → Oyllinear

Answer 2

Similar Homework Help Questions

6. (Bonus question.) A small uniform cylinder of radius R rolls without slipping along the inside...

6. (Bonus question.) A small uniform cylinder of radius R rolls without slipping along the inside of a large, fixed cylinder of radius r > R as shown in the figure above. mig (a) Use conservation of energy to show that the period of small oscillations (θ « 1) of the rolling cylinder about the equilibrium position O is equivalent to that of a simple pendulum whose length is (r-R). [Note that the rotation rate w of the cylinder is...
The uniform cylinder rolls without slipping and point C is the center of the cylinder springs...

The uniform cylinder rolls without slipping and point C is the center of the cylinder springs to the cylinder. Bar AB moves with point C but bar AB does not rotate as the cylinder rolls. me is the mass of the cylinder r is the radius of the cylinder. Find the system's Bar AB is a yoke that connects the two is the mass of the bar, and AB 2k natural frequency answer: Vmc +m AB A ww C
A uniform cylinder of mass m, radius R and length h rolls without slipping at a...

A uniform cylinder of mass m, radius R and length h rolls without slipping at a constant angle φ relative to horizontal, and with the point of contact with the ground tracing out a circle of radius r. There is gravity g in the vertical direction. Write the torque equation, which determines the orbital frequency Ω.

disk rolls without slipping such that it has an angular acceleration of a 8 rad/s2 and...

disk rolls without slipping such that it has an angular acceleration of a 8 rad/s2 and angular velocity of w 32 rad/s at the instant shown. Assume point A lies on the periphery of the disk, 150 mm from C. (Figure 1) Figure 1 of 1 500 mm 150 mm 400 mm
Problem 4. A solid sphere of mass m and radius r rolls without slipping along the...

Problem 4. A solid sphere of mass m and radius r rolls without slipping along the track shown below. It starts from rest with the lowest point of the sphere at height h 3R above the bottom of the loop of radius R, much larger than r. Point P is on the track and it is R above the bottom of the loop. The moment of inertia of the ball about an axis through its center is I-2/S mr. The...
The disk of radius r = 1.5 m rolls without slipping on the incline with angle...

The disk of radius r = 1.5 m rolls without slipping on the incline with angle 0 = 30°. Simultaneously, the small particle A moves along the slot located at distance d = 0.3 m from the center of the disk. At the instant shown, the disk has a constant clockwise angular speedw = 1 rad/s, and the particle is in position x = 0.4 m which is increasing at a constant rate į = 1.3 m/s. Determine the magnitude...

A sphere of mass m and radius r rolls without slipping inside a curve surface of...

A sphere of mass m and radius r rolls without slipping inside a curve surface of radius R. Knowing that the sphere is released from rest in the position shown, derive an expression for (a) the linear velocity of the sphere as it passes through B (20), (b) the magnitude of the vertical reaction at that instant. (20) R В A B
A cylinder of mass 11.0 kg and radius 0.260m rolls without slipping on a horizontal surface....

A cylinder of mass 11.0 kg and radius 0.260m rolls without slipping on a horizontal surface. At a particular instant, its center of mass has a speed of 7.30 m/s. Its rotational kinetic energy about its center of mass is then 147J. a) What is in kg m2 its moment of inertia about its center of mass? b) What is in J its linear kinetic energy at that instant? c) What is in J its total kinetic energy at that...
The 100-mm radius drum rolls without slipping on a portion of a belt that moves downward...

The 100-mm radius drum rolls without slipping on a portion of a belt that moves downward to the left with a constant velocity of 154 mm/s. Knowing that at a given instant the velocity and acceleration of the center A of the drum are as shown, determine the acceleration of point D. Take v -214 mms and a -788 mms Round the final answer to one decimal place. 100mm Vs 30% The acceleration of point D is | 970.3 mm...

A 4.00 kg hollow cylinder of radius 5.00 cm starts from rest and rolls without slipping...

A 4.00 kg hollow cylinder of radius 5.00 cm starts from rest and rolls without slipping down a 30.0 degree incline. The acceleration of the center of mass of the cylinder is:
