8) Two resistors are in parallel, one within each branch of a simple circuit. One resistor...

Question

Question

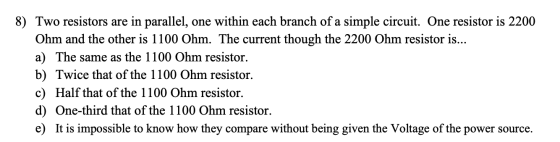

8) Two resistors are in parallel, one within each branch of a simple circuit. One resistor is 2200 Ohm and the other is 1100

science physics

Answer 1

Answer #1

Current distribute in parallel combination is opposite to the ratio of resistors

Ratio of resistors R₁ & R₂ is 2200:1100 = 2:1

R₁ : R₂ = 2:1

So the current distribute in 2200ohm and 1100ohm resistors in ratio of 1:2

so current flow from 2200ohm resistor is half that of 1100ohm resistor

Answer 2
